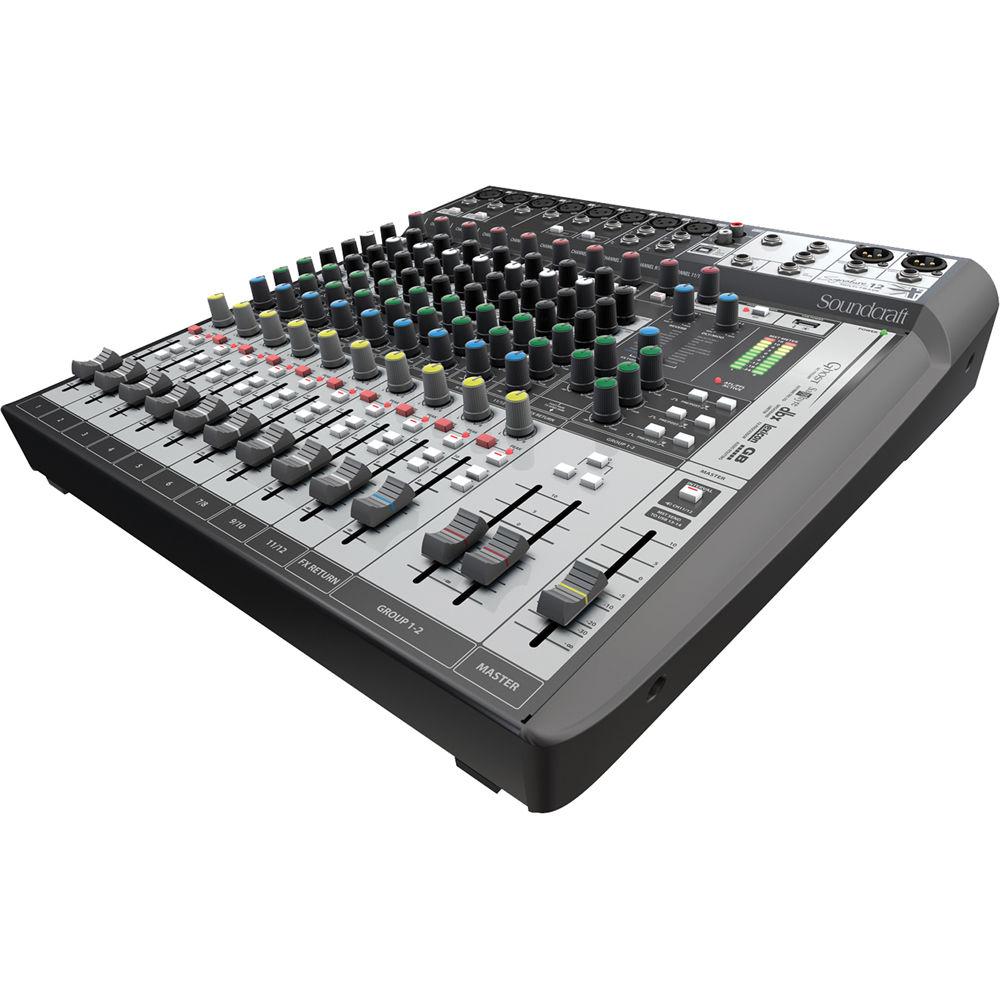

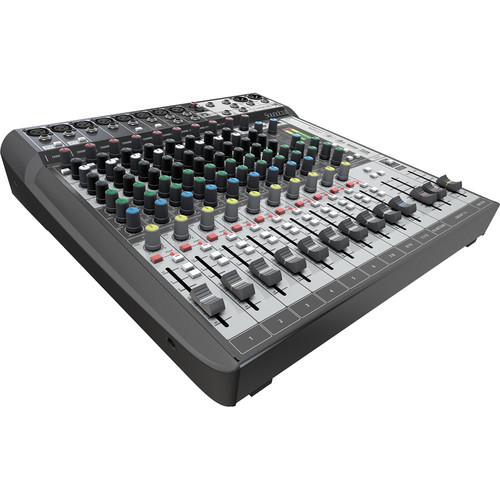

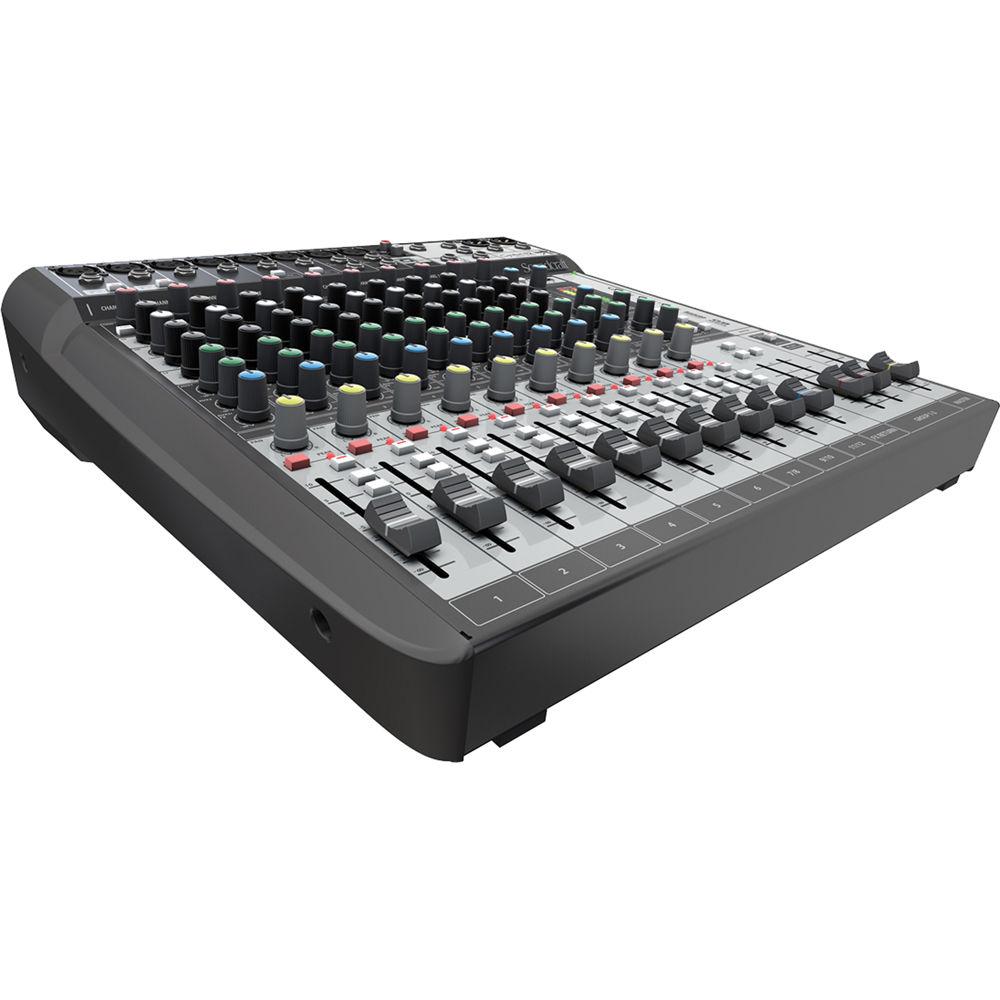

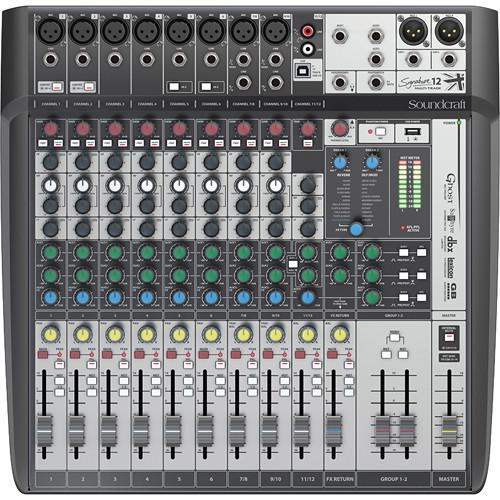

User Manual for Soundcraft Signature 12 MTK 12-Input Multitrack Mixer with Effects Click to enlarge the picture
Contents of the user manual for the Soundcraft Signature 12 MTK 12-Input Multitrack
- Product category: Sound Reinforcement Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Sound Reinforcement Mixers
 |
User manual for the Soundcraft Signature 12 MTK 12-Input Multitrack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|
Product description The Soundcraft Signature 12 MTK is a 12-input analog mixer with on-board effects, and multitrack USB recording and playback. The Signature 12 MTK features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.
The built-in Ghost microphone preamps deliver high-quality audio with a wide dynamic range, clarity, and a high level of headroom. Additionally, the mixer uses Sapphyre Asymetric EQ for equalizing every vocal and instrumental element in a mix, and GB Series audio routing technology. The mixer provides a wide variety of built-in Lexicon studio-grade effects including reverb, chorus, and modulation, as well as dbx limiters on the input channels. To enable studio plug-ins to be integrated with live performances, the mixer incorporates a multi-track USB audio interface which allows any VST/AU/AAX/TDM/RTAS plug-in to be inserted on any input channel. XLR and switchable Hi-Z inputs enable guitars, basses, and other instruments to be connected directly.
The Signature 12 MTK comes with a 14-in / 12-out USB interface and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite. - High-performance 12-input small format analog mixer with onboard effects
- Multitrack USB recording and playback
- 14-in / 12-out low latency USB playback and recording interface
- Ghost mic preamps with low noise performance
- Sapphyre British EQ with sweepable mid-bands per channel
- Lexicon effects engine featuring reverbs, delays, choruses, and modulations
- dbx limiters (high-ratio compressors) on input channels
- Switchable Hi-Z inputs for guitars, basses, and other instruments
- Hi-pass filters (low-cut) and 48V phantom power on all mic channels
- Comprehensive GB Series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs
- Robust metal construction for tour-grade build quality and reliability
- Internal universal power supply
UPC: 668705001151 In the Box Soundcraft Signature 12 MTK 12-Input Multitrack Mixer with Effects Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Signature 12 MTK 12-Input Multitrack Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft 5049557 Specs | Frequency Response | Mic / Line In to Any Output: 20 Hz to 20 kHz (±1.5 dB) | | THD | Mono Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz
Stereo Mic Sensitivity -30 dBu, Input Level -16 dBu, +14 dBu @ Mix Output: < 0.007% 1 kHz | | Noise | Mono Mic Input E.I.N. (Max Gain): <-126 dbu (150 ohm source)
Stereo Mic Input E.I.N. (Max Gain): <-124 dBu (150 Ohm source) | | Crosstalk @ 1 kHz | Channel Mute: >-90 dB
Fader Cut-off (rel +10 mark): >-90 dB
Aux Send Pots Offness: >-82 dB | | EQ Section | EQ (Mono Inputs)
HF: 12 kHz, ±15 dB
MF (swept): 140 Hz to 3 kHz, ±15 dB
LF: 60 Hz, ±15dB
EQ (Stereo Inputs)
HF: 12 kHz, ±15 dB
MF: 1 kHz, ±15 dB
LF: 60 Hz, ±15 dB | | Input & Output | Input and Output Levels
Mic Input: +12.5 dBu max
Line Input: >+26 dBu max
Stereo Inputs: >+26 dBu max
Mix Output: +21.5 dBu max
Headphones (@ 150 Ohms): 300 mW | | Impedance | Input & Output Impedance
Mic Input: 1.2 kOhms
Hi-Z Input: 968 kOhms
Line Input: 10 kOhms
Stereo Input: 21.5 kOhms
Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced) | | USB Audio | Inputs/Outputs: 14-in, 12-out
Bit Depth: 16-bit, 24-bit
Sampling Rate: 44.1 kHz / 48 kHz | | Power Consumption | <70 VA | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Dimensions | 19.3 x 17.9 x 8.3" / 49.0 x 45.5 x 21.0 cm | | Weight | 12.9 lb / 5.9 kg | | | | Package Weight | 16.35 lb | | Box Dimensions (LxWxH) | 19.2 x 17.9 x 8.3" |
