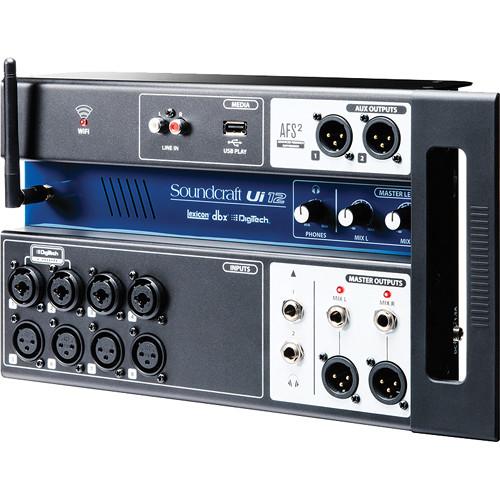

User Manual for Soundcraft Ui12 12-Input Remote-Controlled Digital Mixer Click to enlarge the picture
Contents of the user manual for the Soundcraft Ui12 12-Input Remote-Controlled Digital Mixer
- Product category: Digital Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Digital Mixers
|
User manual for the Soundcraft Ui12 12-Input Remote-Controlled Digital Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|
Product description The Ui12 from Soundcraft is a 12-input remote-controlled, fully recallable digital mixing system, housed in a compact, road-rugged stagebox format. With built-in Wi-Fi, cross-platform compatibility, and the ability to be controlled by any connected device via standard web browser, the Ui12 offers a full-featured, flexible remote mixing solution for a wide variety of live sound reinforcement applications.
The Ui12 features cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the mixer features signal processing from dbx, DigiTech and Lexicon, including dbx AFS2 feedback suppression, DigiTech amp modeling, and more. It has fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on all input channels. The mixer also features 31-band graphic EQ, noise gate, and compressor on all outputs, plus real-time frequency analyzer (RTA) on all inputs and outputs.
In the I/O department, the Ui12 boasts four XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi-Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with 2 balanced XLR Aux outputs, two 1/4" headphone outputs with level control, plus balanced stereo XLR and 1/4" main outputs. Two-channel USB audio supports playback for MP3, WAV and AIFF formats. - Features:
-
- Tablet/PC/smartphone controlled digital mixer
- Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
- Independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet
- Floor-ready, rugged chassis for live applications
- Integrated Wi-Fi
- Use up to 10 control devices (tablets, phones, PCs) simultaneously
- Signal processing from dbx, DigiTech, and Lexicon
- Fully recallable and remote-controlled mic preamps
- 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels
- 31-band graphic EQ, noise gate and compressor on all outputs
- Real-time frequency analyzer (RTA) on inputs and outputs
- 3 dedicated Lexicon FX effects processors: reverb, delay and chorus
- Subgroups, Mute Groups, View Groups, and more mixer controls
- Show/Snapshot recall with channel safes and security lockout
- Includes Ableton Live Lite
- 2-channel USB audio playback
UPC: 668705001656 In the Box Soundcraft Ui12 12-Input Remote-Controlled Digital Mixer Ableton Live Lite Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Ui12 12-Input Remote-Controlled Digital Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft UI 12 Specs | Form | Floor | | Wi-Fi | Wi-Fi router on-board | | Ethernet Control | Yes | | Number of Inputs | 12 | | XLR Connections | 4 mic/line, 4 mic | | Hi-Z Input | 2 | | Main Output | XLR and 1/4" | | AUX Sends | Aux / Monitor Sends: 2 balanced XLR | | USB | 2-channel USB audio playback | | HDMI Output | No | | Headphone | Headphone 1/4" Out: 2 | | RCA | Stereo RCA Line Input: Yes | | Dimensions | 3.3 x 7.0 x 12.6" (85 x 177 x 320 mm) | | Weight | 5.0 lb (2.29 kg) | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 18.0 x 10.4 x 5.8" |
