Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track

Search your instruction manual in PDF to download

User Manual for Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control

Click to enlarge the picture
Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control Contents of the user manual for the Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track
  • Product category: Digital Mixers Soundcraft
  • Brand: Soundcraft
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Soundcraft Digital Mixers

Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control
User manual for the Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Soundcraft product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!



Product description

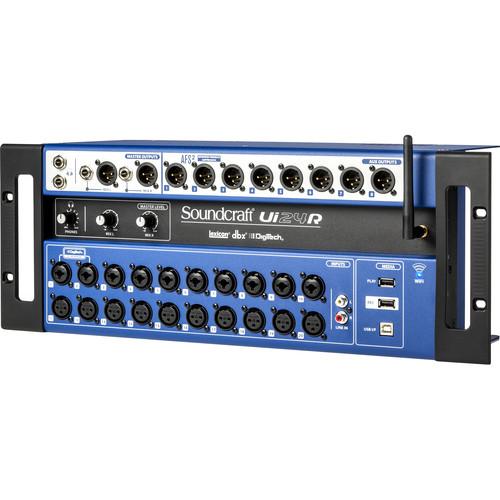

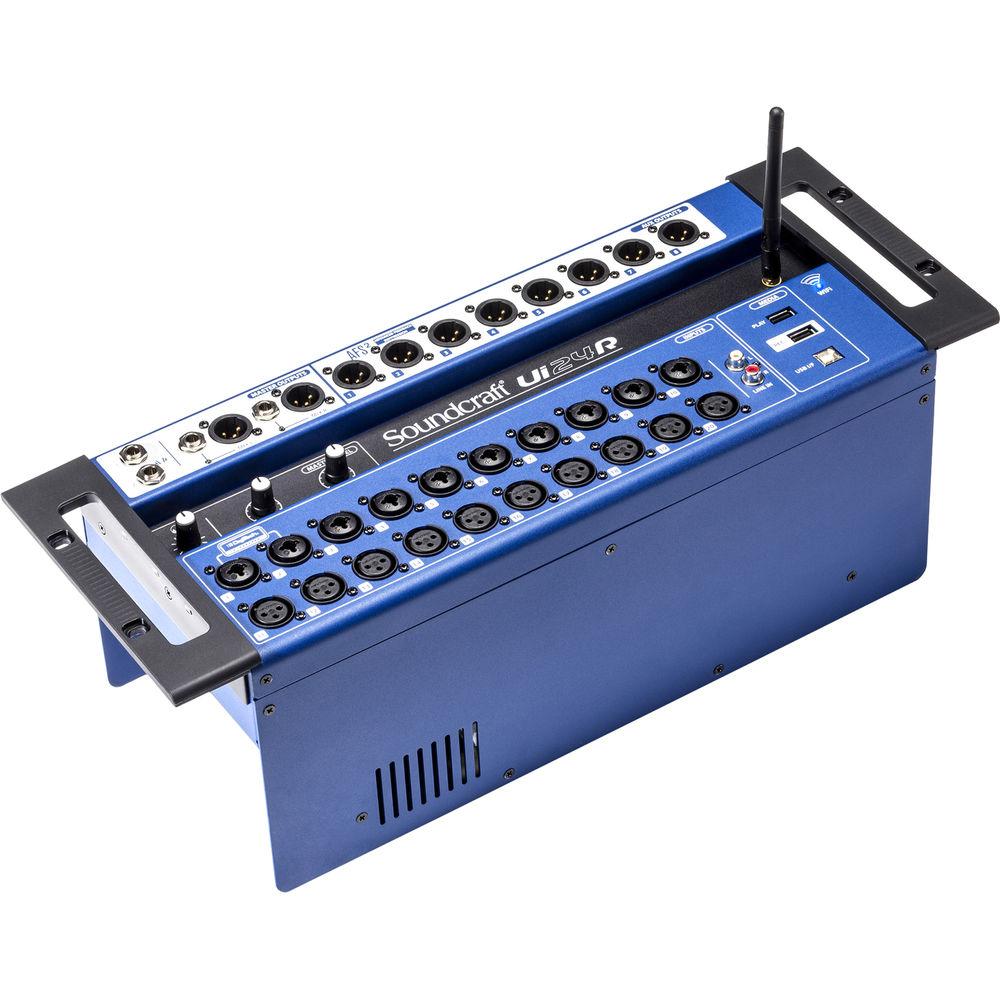

The Ui24R from Soundcraft is a 24-input, remote-controlled, fully recallable digital mixing system, housed in a rackmountable, road-rugged stagebox format. With built-in, dual-band Wi-Fi, cross-platform compatibility, and the ability to be controlled by any connected device via a standard web browser, the Ui24R offers a full-featured, flexible remote mixing solution for a wide variety of live sound reinforcement applications.

The Ui24R features cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the mixer features signal processing from dbx, DigiTech, and Lexicon, including dbx AFS2 feedback suppression, DigiTech amp modeling, and more. It has fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on all input channels. The mixer also features a 31-band graphic EQ, noise gate, and compressor on all outputs, plus a real-time frequency analyzer (RTA) on all inputs and outputs.

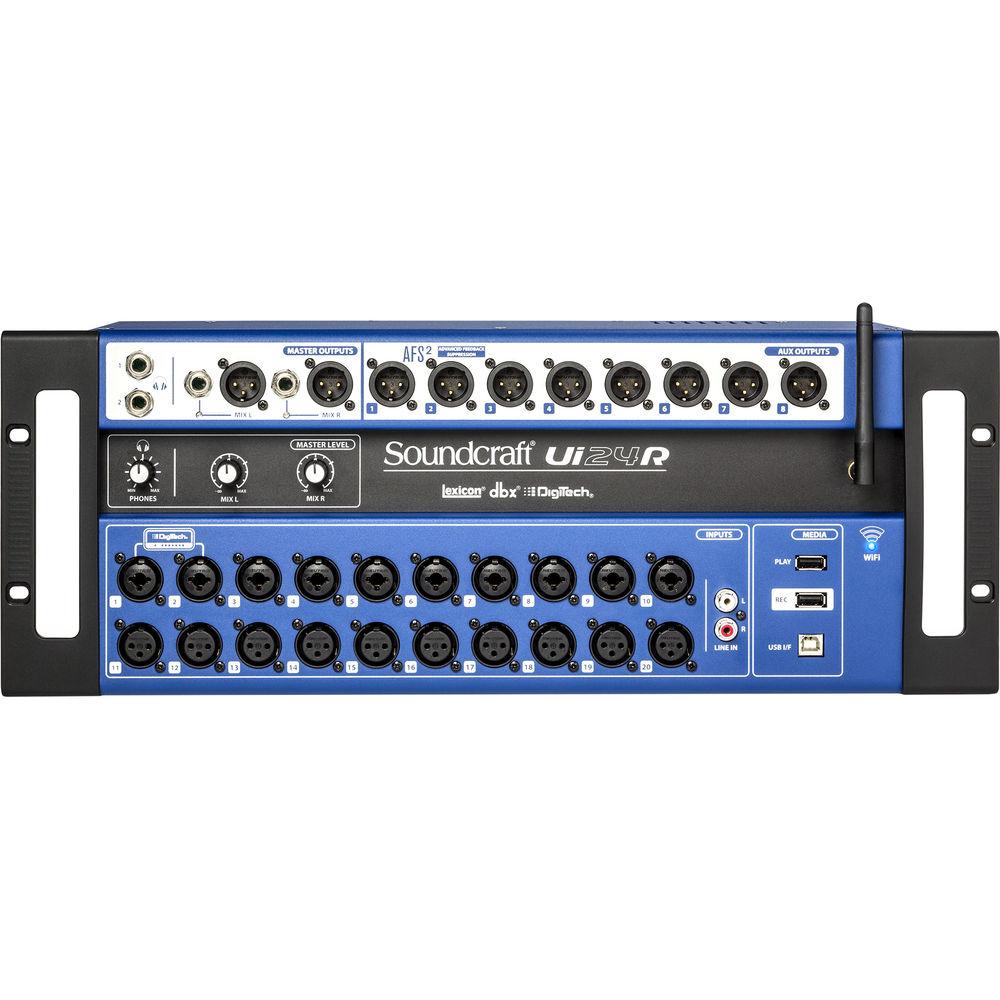

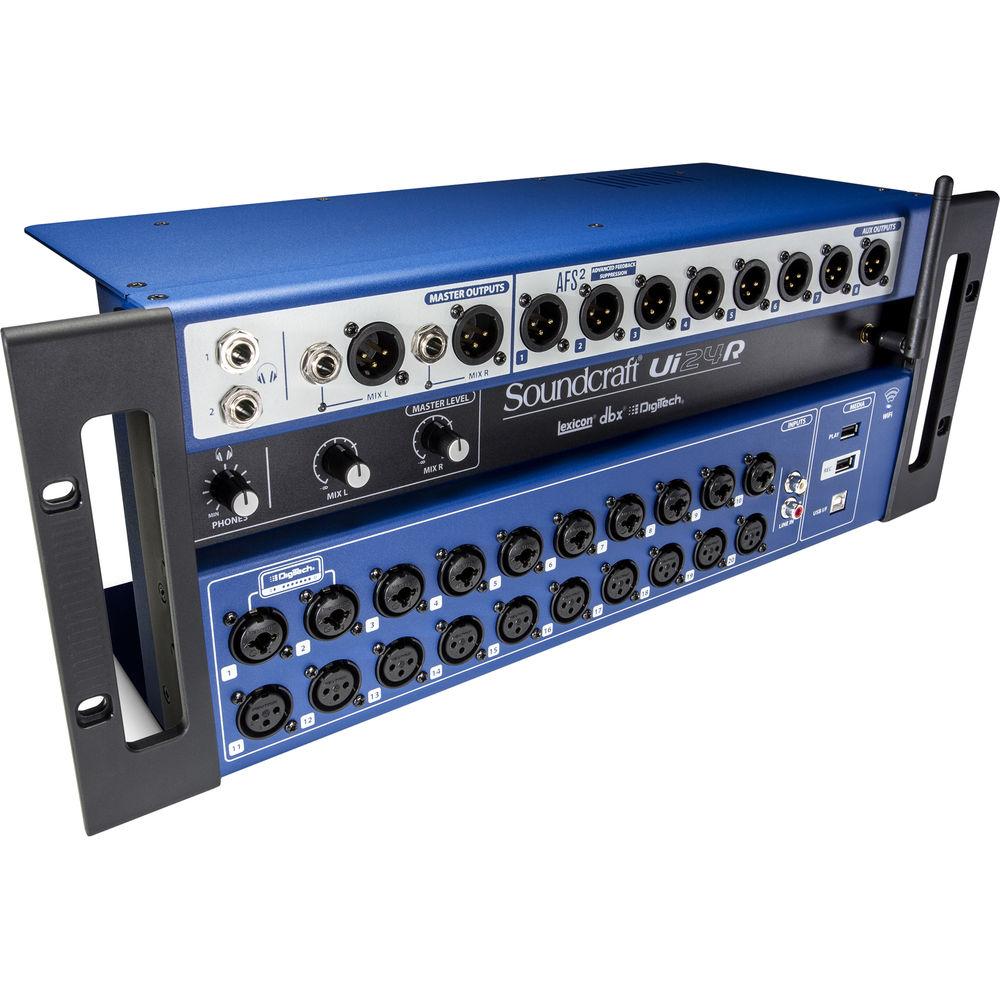

For inputs, the Ui24R boasts 10 XLR combo mic/line inputs (channels 1 and 2 are Hi-Z/instrument inputs with available Digitech guitar amp modeling), and a stereo RCA line input. For outputs, the unit offers 8 balanced XLR aux outputs, two 1/4" headphone outputs with level control, plus balanced stereo XLR and 1/4" main outputs. The Ui24R features dual-path, multi-track recording of all inputs and your stereo mix, directly to a USB storage drive and a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW. The side panel offers two RJ45 Ethernet ports, an HDMI port for connecting a monitor, and two USB ports for connecting a keyboard and/or a mouse.The Ui24R is compatible with the Connected PA app that offers seamless plug-and-play operation with a variety of Harman equipment and enables you to control an entire live performance system including JBL PRX800W loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones.
    Features
    • Professional Soundcraft quality and performance
    • Built-in, dual-band Wi-Fi eliminates the need for a router—it provides a reliable connection to up to 10 mobile devices in mission-critical situations

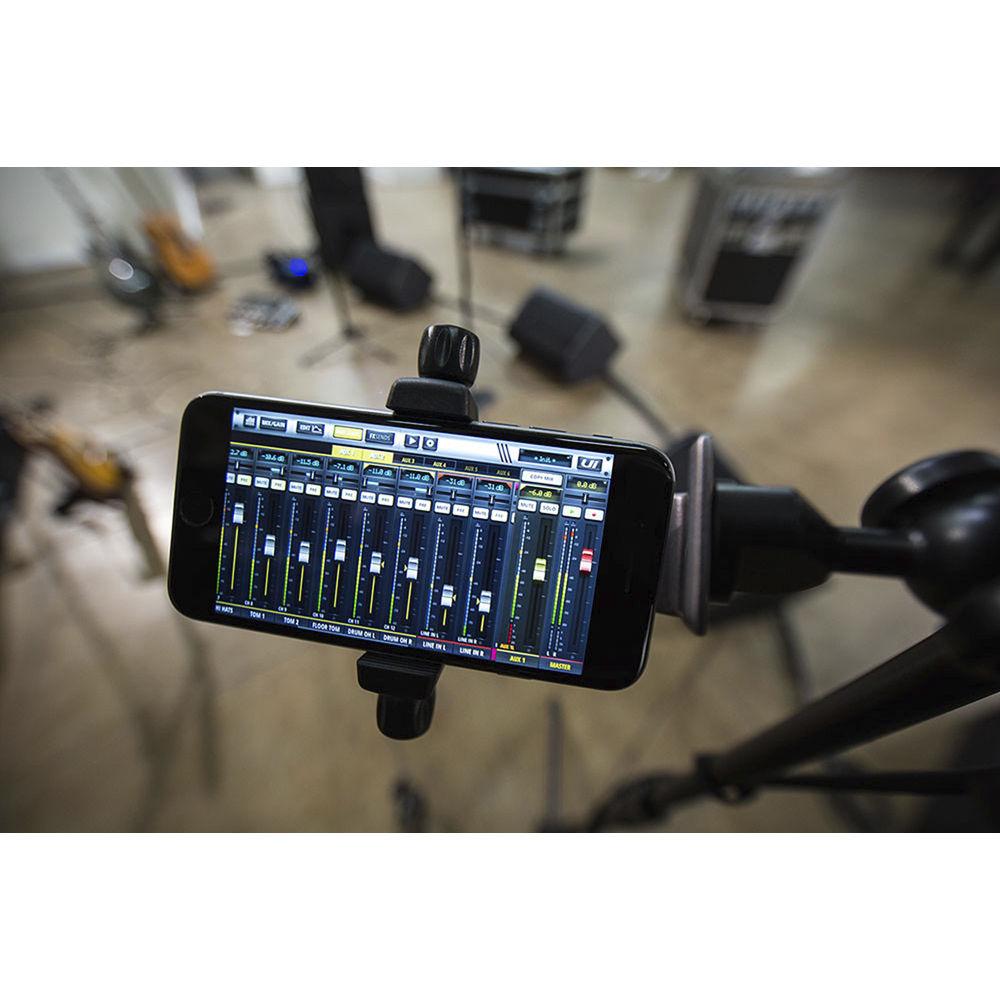

    • Control Ui24R from iOS, Android, Windows, Mac OS, and Linux browsers without installing additional apps
    • Record and mix with the warmth of 20 professional-quality, Studer-designed preamps
    • dbx compression and Lexicon reverb and delay processing
    • 2 channels of DigiTech guitar amp modeling
    • Dual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/Windows computers
    • 24 Simultaneous Inputs: 10 combo ¼” TRS/XLR (including 2 Hi-Z/instrument inputs), 10 XLR, stereo RCA line, 2 digital
    • 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels
    • 31-band graphic EQ, noise gate, compressor, and dbx AFS2 automatic feedback suppression on all outputs
    • Real-time frequency analyzer (RTA) on inputs and outputs
    • Compatible with Mac/Windows DAWs and other music software
    • Compatible with Harman Connected PA application and system for easier setup and control
    • 4 RU rackmount design
UPC: 668705002677 In the Box Soundcraft Ui24R 24-Channel Digital Mixer / Multi-Track USB Recorder with Wireless Control
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Download User Manual

    The user manual for the Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless Control can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Soundcraft Ui24R 24-Channel Digital Mixer Multi-Track USB Recorder with Wireless ControlDownload PDF User Manual - https://www.search-manual.com/ upload/ soundcraft-ui24r-24-channel-digital-mixer-multi-track-usb-recorder-with-wireless-control-328551-user-manual.pdf
    (PDF file, 4.03 MB)


    Technical parameters

    Soundcraft Ui24R Specs

    Form Rackmount
    Wi-Fi Built-in, dual-band Wi-Fi router
    Ethernet Control Yes
    Number of Inputs 24
    XLR Connections Mic/Line: 10 x Combo XLR-1/4" / 6.35 mm
    Mic: 10 x XLR
    Hi-Z Input Channels 1 & 2: DigiTech guitar/amp modeling
    Main Output 2 x XLR and 2 x 1/4" / 6.35 mm
    AUX Sends Aux / Monitor Sends: 8 balanced XLR

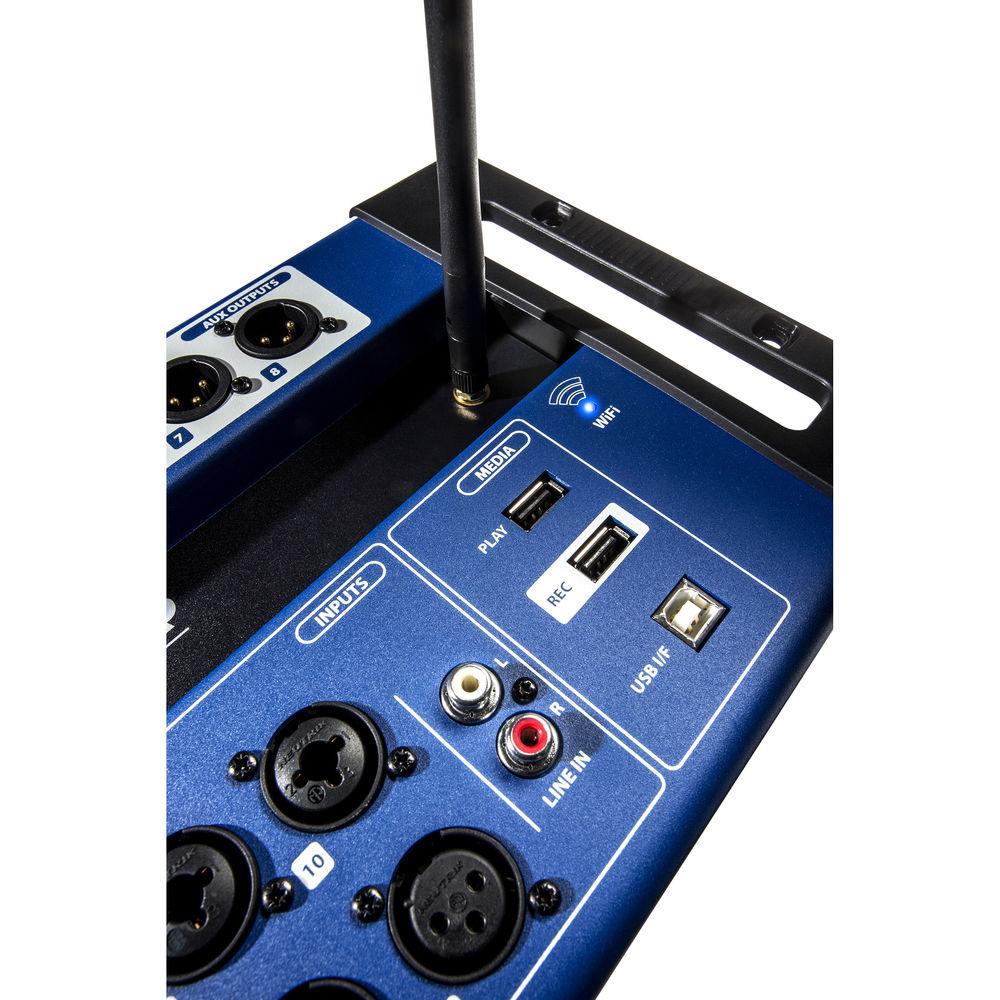

    USB USB PLAY: Type-A port (multi-channel playback)
    USB REC: Type-A port (22-channel, direct-to-memory recording)
    USB I/F: Type-B port (connects to computer as a 32 I/O audio interface)
    USB 1.0 and 2.0: 2 x Type-A ports (connect a mouse and/or keyboard)
    HDMI Output Yes
    Headphone Headphone Out: 2 x 1/4" / 6.35 mm
    Line Input Line Input: 2 x RCA
    Footswitch Closure Pedal Event Trigger: 1/4" / 6.35 mm
    Dimensions (L x W x D) 7.0 x 19.0 x 6.5" / 177.8 x 482.6 x 165.1 mm
    Weight Not specified by manufacturer
    Package Weight 14.4 lb
    Box Dimensions (LxWxH) 22.362 x 10.63 x 9.291"
