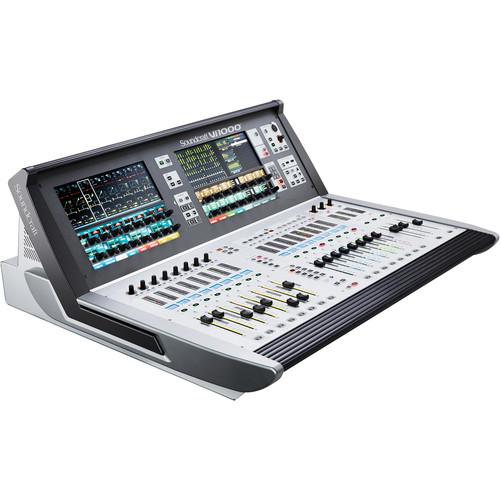

User Manual for Soundcraft Vi1000 Compact Vi Series Digital Mixing Console Click to enlarge the picture
Contents of the user manual for the Soundcraft Vi1000 Compact Vi Series Digital
- Product category: Digital Mixers Soundcraft
- Brand: Soundcraft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundcraft Digital Mixers
 |
User manual for the Soundcraft Vi1000 Compact Vi Series Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundcraft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundcraft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundcraft product will considerably shorten its lifespan!
|

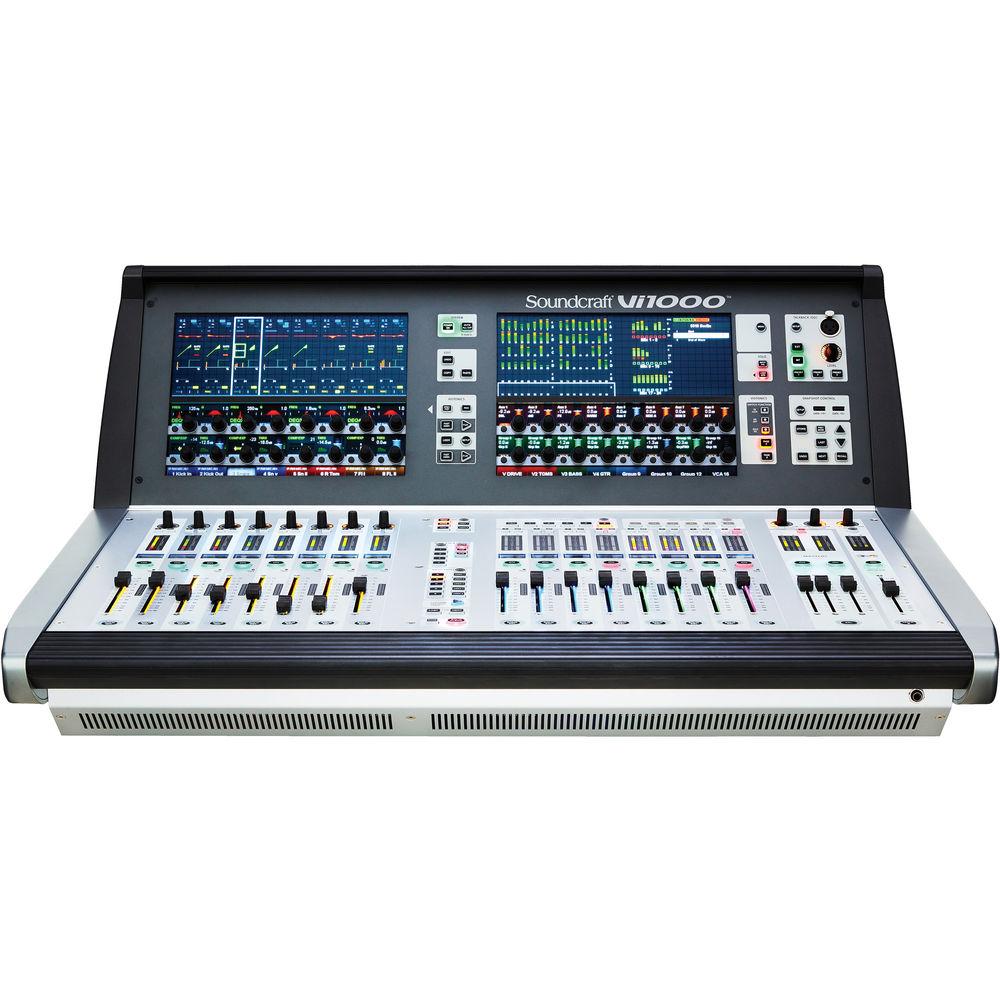

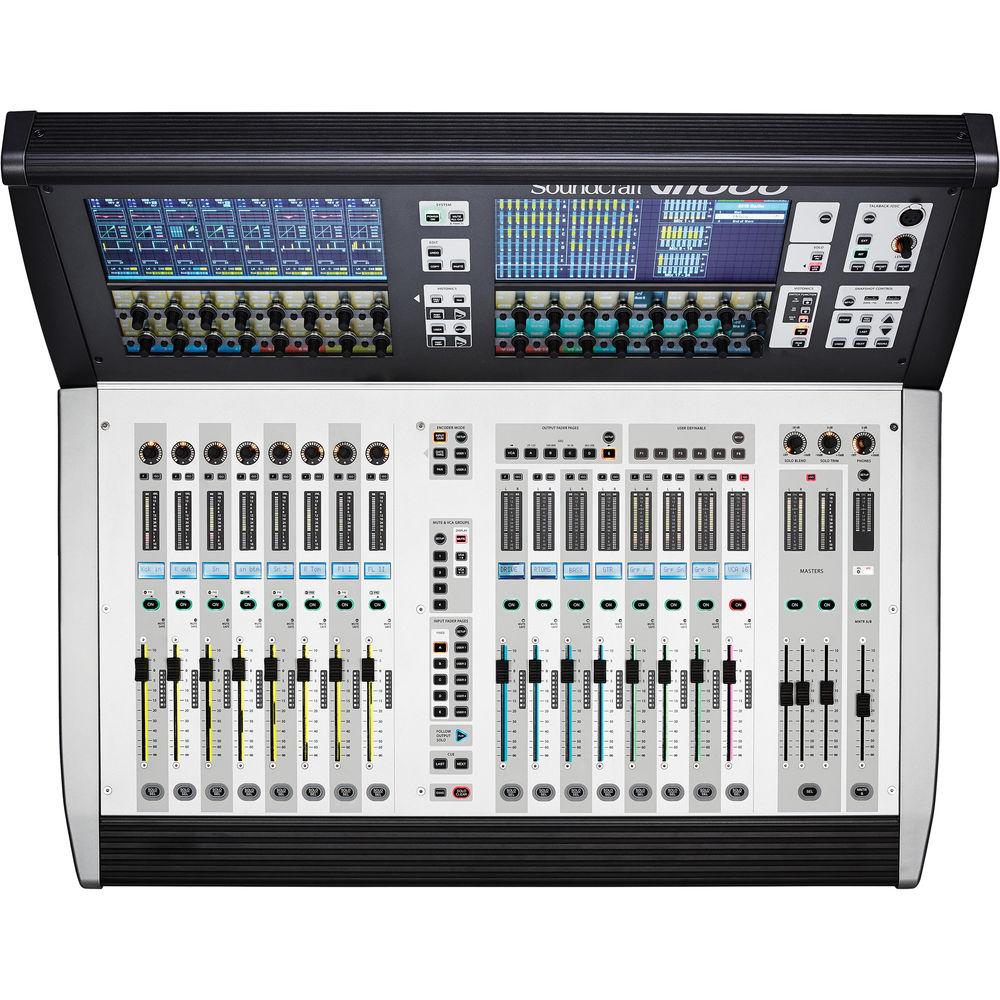

Product description Designed for smaller touring projects, rental companies, corporate AV applications, and music venues, the compact Soundcraft Vi1000 is a versatile digital mixing console with advanced features including 96 input channels with 24 mono/stereo busses, SpiderCore integrated DSP, Dante audio networking, built-in Lexicon effects, on-board dynamic EQs based on the highly regarded BSS DPR901ii and integrated monitoring for AKG, Shure, and Sennheiser wireless systems.
Additionally, the mixer incorporates Vistonics II "knobs-on-glass" functionality, making it easy to see and access the power and versatility of the mixing environment; along with the Soundcraft's Faderglow color coding, which illuminates the fader slots according to function using clearly defined colors.

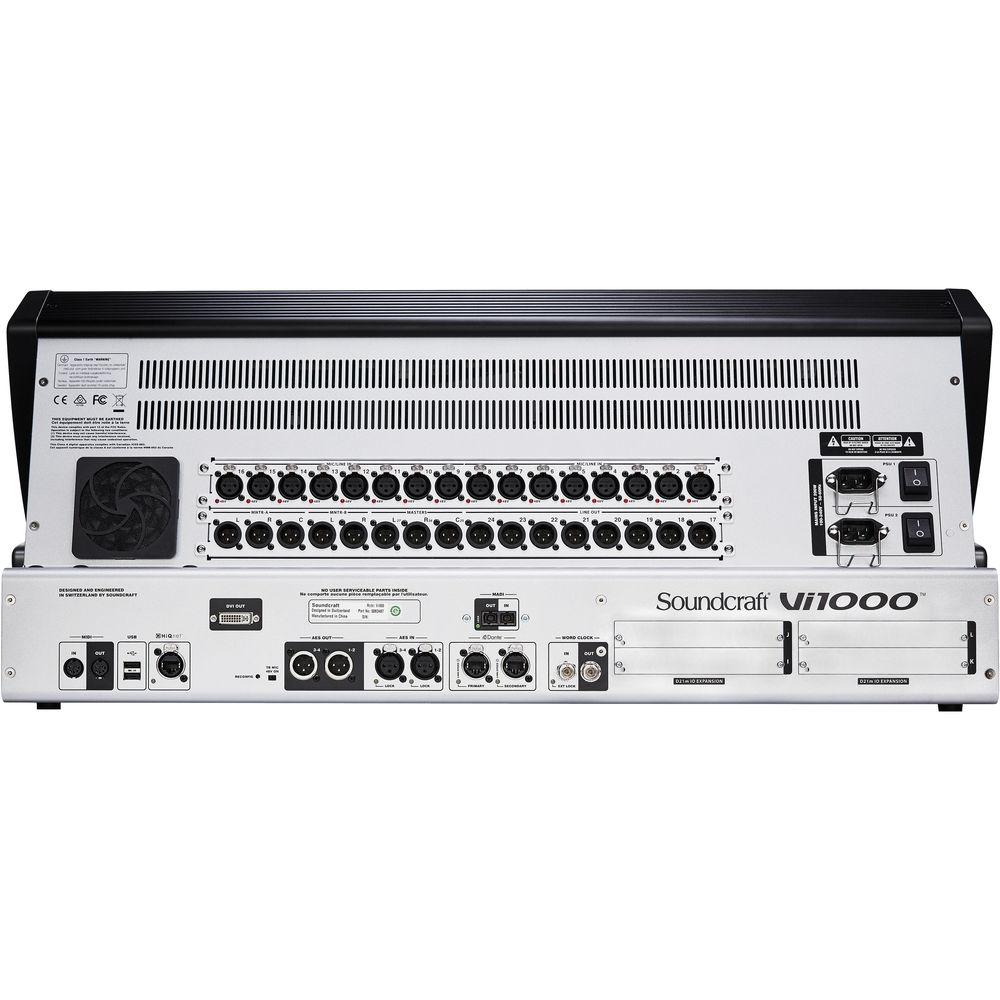

The Vi1000's is directly linked to the SpiderCore DSP engine and provides a comprehensive I/O system with a total of 212 x 212 simultaneous inputs and outputs. These comprise 16 channels of on-board HQ mic preamps, 16 on-board line outs, 2 pairs of AES/EBU inputs and 2 pairs of outputs, and a 64ch MADI and Dante recording interface. In addition, two double expansion card slots provide audio networking protocol support and stagebox connection. Optional I/O expansion cards can be chosen from the extensive ViSi Connect range, which include MADI, Dante, Rocknet, Aviom, BLU link, SDI, TDIF, ADAT and other popular formats. The Soundcraft Vi1000 includes a power cord and a dust cover. -
- 96 input channels with 24 mono/stereo mix busses, plus LRC master busses
- Vistonics II proprietary ‘knobs-on-glass’ functionality; key to the console’s streamlined, intuitive operational interface and praised as an easy-to-use digital console
- SpiderCore integrated DSP engine ensures superior audio performance
- Soundcraft Faderglow color coding illuminates the fader slots according to function
- Integrated Dante interface facilitates instant connection to industry-standard Dante audio networks
- Two double-slot expansion slots for Stagebox connection or option card installation
- Built-in Lexicon studio-quality reverb, delay, and pitch effects
- Onboard BSS DPR901ii dynamic EQ, digitally modelled after the original BSS analog unit
- Integrated microphone monitoring for AKG, Shure, and Sennheiser wireless systems
- Included vMIX automatic microphone mixing for two groups of up to 16 mics in conference or theatrical applications
In the Box Soundcraft Vi1000 Compact Vi Series Digital Mixing Console Power Cord Dust Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundcraft Vi1000 Compact Vi Series Digital Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundcraft Vi1000 Specs | | | Input Channels | 96 | | Busses | 24 mono or stereo, group/aux/matrix | | Groups | VCA Groups: 16 | | Inserts | Insert Points: 64 external / 8 BSS DEQ / 4 x Lexicon | | Tie Lines | 128 | | Equalizer | Dynamic EQ: 16 x BSS DPR901ii | | FX | Lexicon FX: 4 x stereo multi-FX units | | Automatic Mic Mixing | 2 x Studer vMIX, maximum 16 channels each | | | | Capacity | I/O Capacity: 212 input / 212 output | | Mic/Line Inputs | 16 x XLR
16 x preamps | | Line Outputs | 16 x XLR | | AES Audio | AES/EBU Input/Output: 2 x stereo inputs / 2 x stereo outputs | | MADI I/O | Optical MADI and/or Dante I/O: 64 inputs / 64 outputs | | Expansion Slots | 2 x 64 inputs / 64 outputs | | | | Sample Rate | 48 kHz | | Internal Clock | Accuracy: ±50 ppm Jitter: ±10 ns | | Latency | <2 ms, (stagebox input to local output) | | Internal DSP Resolution | 40-bit floating point | | Frequency Response | 20 Hz to 20 kHz (+0/-1, mic in to line out) | | THD+N | 0.004%, (mic in to line out, 20 Hz to 20 kHz) | | EIN | Mic Input EIN: -128 dBu (150 Ohms source, 20 Hz to 20 kHz) | | Residual Output Noise | -95 dBu (Vi-Stagebox output, 20 Hz to 20 kHz) | | | | Power | Mains Voltage Operating Range: 90 to 264 VAC, 47 / 63 Hz, auto-ranging
Main Power Consumption: 200 W (both PSUs operating) | | Dimensions ( H x D x W) | 13.8 x 31.6 x 33.2" / 351 x 803 x 843 mm | | Weight | 55.0 lb / 24.9 kg |
