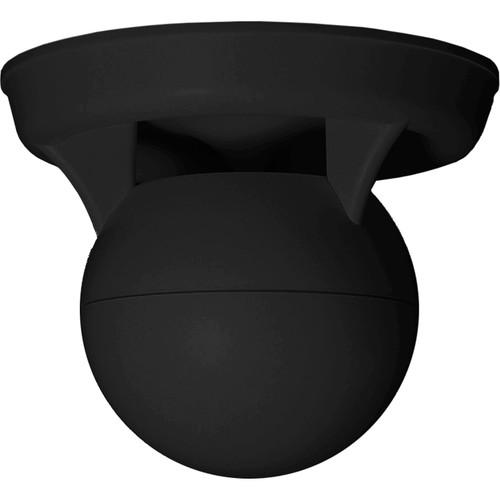

User Manual for Soundsphere 110-Page 6.5" Paging Loudspeaker Click to enlarge the picture
Contents of the user manual for the Soundsphere 110-Page 6.5" Paging Loudspeaker
- Product category: Installed Speakers Soundsphere
- Brand: Soundsphere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundsphere Installed Speakers
|
User manual for the Soundsphere 110-Page 6.5" Paging Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundsphere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundsphere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundsphere product will considerably shorten its lifespan!
|
Product description The black Soundsphere 110-Page 6.5" Paging Loudspeaker is designed for high-powered, clear voice announcements in challenging environments, such as spaces with high ambient noise. The 110-Page features 360° horizontal dispersion. It is compact, with a 10" diameter sphere. The speaker comes fully assembled and ready to mount using the Soundsphere hanging kit or mounting bracket (sold separately). - Clear voice announcements in high-noise environments
- Hemispherical coverage pattern
- Neodymium-ferrite hybrid magnet system for superior sensitivity
- Covers more area than other speakers
- Cost-effective solution for applications where OSHA compliance is required
- Compact, lightweight speaker
- Arrives fully assembled, with many mounting possibilities
In the Box Soundsphere 110-Page 6.5" Paging Loudspeaker (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundsphere 110-Page 6.5" Paging Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundsphere 110 PAGE-BK Specs | System Type | 6.5" (16.5 cm) full-range driver | | Nominal Impedance | 4 ohms | | Sensitivity | 101 dB @ 2.83 V / 1 m
98 dB @ 1 W / 1 m Measured from 300 Hz to 3 kHz | | Frequency Response | 500 Hz to 5.5 kHz @ -3 dB
150 Hz to 11 kHz @ -10 dB | | Power Handling | Continuous Peak: 120 W
Continuous RMS: 60 W | | Maximum SPL | 116 dB @ 1 m | | Coverage Angle | 180° (±6 dB @ 500 Hz)
100° (±6 dB @ 4 kHz)
150° (±6 dB average 500 Hz to 4 kHz) | | Transducer | Driver: 6.5" (16.5 cm) treated pulp fiber
Voice Coil: 1" (2.54 cm) | | Enclosure Material | Structural foam polystyrene with rustproof hardware | | Regulations | CE, RoHS | | Height | 11.9" (30.2 cm) | | Diameter | Sphere: 10" (254 mm)
Reflector: 14.9" (378 mm) | | Weight | 8 lb (3.6 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 16.0 x 13.0" |
