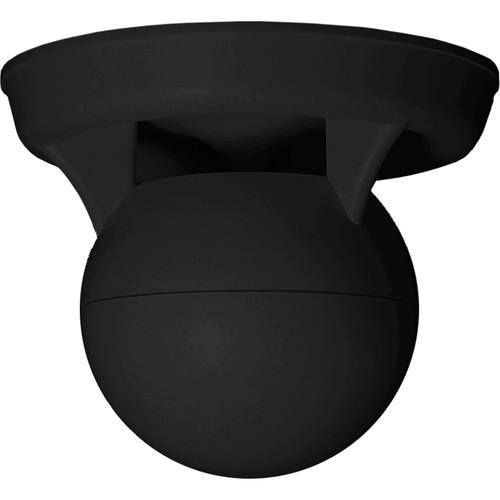

User Manual for Soundsphere 110B 6.5" Compact Loudspeaker Click to enlarge the picture
Contents of the user manual for the Soundsphere 110B 6.5" Compact Loudspeaker
- Product category: Installed Speakers Soundsphere
- Brand: Soundsphere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundsphere Installed Speakers
|
User manual for the Soundsphere 110B 6.5" Compact Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundsphere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundsphere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundsphere product will considerably shorten its lifespan!
|
Product description The black Soundsphere 110B 6.5" Compact Loudspeaker is designed to provide clear voice announcements, seamless background music and even, omnidirectional coverage. The 110B is compact with a 10" diameter, and offers fast distributed system installation. It is ideal for use in retail stores, factories and warehouses, mass transportation centers, restaurants, stadium and arena concourses, gift shops, and restrooms. The 110B features a dual-cone 6.5" driver providing a 180° vertical and 360° horizontal area of coverage, maximizing speech intelligibility and music clarity. The 110B is enclosed in a structural foam polystyrene housing and provides 150 Hz - 12 kHz frequency response with 96 dB sensitivity and 35W of power. The Soundsphere 110B also offers several mounting options to retrofit any ceiling configuration. - Hemispherical coverage pattern
- Accurate, full-range voice announcements
- Lightweight structure enables many varied mounting possibilities
- Fully assembled and ready to mount
In the Box Soundsphere 110B 6.5" Compact Loudspeaker (35W, Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundsphere 110B 6.5" Compact Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundsphere 110B-BK Specs | Sensitivity | 96 dB SPL (1 W / 1 m) | | Maximum SPL | 111 dB (30 W / 1 m) | | Power Handling | 35 W | | Frequency Response | 150 Hz to 12 kHz ±6 dB | | Coverage | 180° Vertical
360° Horizontal | | Rated Impedance | 4 ohms | | Driver | 6.5" (165 mm), dual-cone | | Voice Coil | 1" (25.4 mm) | | Enclosure Material | Polystyrene | | Regulations | CE, RoHS | | Dimensions | Height: 11.9" (302 mm)
Sphere Diameter: 10" (254 mm)
Reflector Diameter: 14.9" (378 mm) | | Weight | 8 lb (3.6 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 16.0 x 13.0" |
