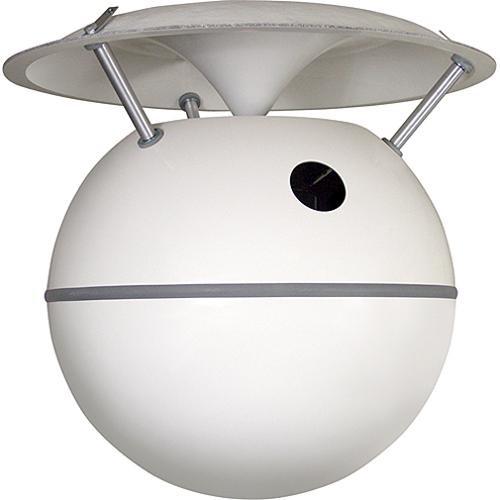

User Manual for Soundsphere Q-15 Single Loudspeaker Click to enlarge the picture
Contents of the user manual for the Soundsphere Q-15 Single Loudspeaker
- Product category: Installed Speakers Soundsphere
- Brand: Soundsphere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundsphere Installed Speakers
|
User manual for the Soundsphere Q-15 Single Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundsphere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundsphere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundsphere product will considerably shorten its lifespan!
|
Product description The white Soundsphere Q-15 Single Loudspeaker is an omnidirectional speaker offering the ability to reproduce a wide field of sound that appears to come from everywhere. The Q-15 was designed for professional and entertainment enthusiasts with the capability of delivering a full, clear, and tight sound response. With an increased Sound Pressure Level (SPL) of 122.5 dB, the Q-15 is a loudspeaker solution designed for large venues such as open public areas, auditoriums, arenas, ice rinks, nightclubs, and more. Each Q-15 features a true coaxial 15" driver providing a 180° vertical, and 360° horizontal, area of coverage, maximizing speech intelligibility and music clarity. The Q-15 offers a fiberglass enclosure, 35 Hz - 15 KHz frequency response, and 97 dB sensitivity. Its spherical-design offers the ability to conceal speaker wires and support/safety cables, thus providing a streamline appearance. - The Q-15 features a full hemispherical coverage pattern
- Every Soundsphere omnidirectional loudspeaker produces a full-frequency sound
- Advanced exit compression offers increased SPL often required for high-ceiling applications
- The Soundsphere Q-15 also offers several mounting options to retrofit any ceiling configuration
- Poly-exponential Incidence Reflector
- Enhanced high-fidelity music reproduction
- An optional high-efficient 250W line-matching transformer with 70 and 100V power taps is available for the Q-15
- This heavy-duty speaker features rustproof hardware and a gelcoat finish
- Attractive enclosure will compliment any decor
- Standard and custom colors available
In the Box Soundsphere Q-15 Single Loudspeaker (White) Q-15 Loudspeaker 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundsphere Q-15 Single Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundsphere Q-15 Specs | Power Capacity | 350 W (Each Speaker) | | Frequency Response | 45 Hz - 15K Hz ±6dB | | Nominal Sensitivity | 97 dB (1W @ 1 m) | | SPL | 122.5dB @1M | | Impedance | 8 ohms | | Coverage | 180° Vertical
360° Horizontal | | Shielded | Not Specified By Manufacturer | | Low Frequency Driver | 15" (True-Coaxial) Woofer (Each Speaker) | | Enclosure Material | Fiberglass | | Input Connections | Bare Wire | | Specialties | Omnidirectional Coverage | | Color | White | | Dimensions | Height: 33.0" (840 mm)
Sphere Diameter: 27.0" (685 mm)
Reflector Diameter: 32.0" (815 mm) | | Weight | 63.0 lb (28.5 kg) (each speaker) | | | | Package Weight | 96.0 lb | | Box Dimensions (LxWxH) | 37.0 x 33.0 x 33.0" |
