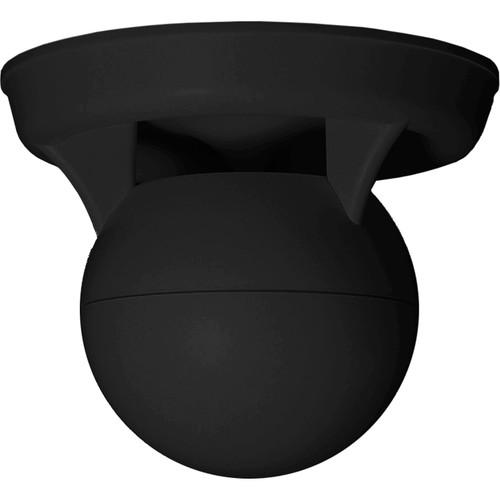

User Manual for Soundsphere Q-6 Compact Weatherproof Loudspeaker Click to enlarge the picture
Contents of the user manual for the Soundsphere Q-6 Compact Weatherproof Loudspeaker
- Product category: Installed Speakers Soundsphere
- Brand: Soundsphere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundsphere Installed Speakers
|
User manual for the Soundsphere Q-6 Compact Weatherproof Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundsphere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundsphere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundsphere product will considerably shorten its lifespan!
|
Product description The black Soundsphere Q-6 Compact Weatherproof Loudspeaker offers omnidirectional full-range music and clear voice announcements for both indoor and outdoor installations. The 6.5" coaxial driver provides for broad dispersion of all frequencies. The Q-6 offers a hemispherical coverage pattern and can evenly cover a large area with fewer speakers. It comes fully assembled and ready to mount using the Soundsphere hanging kit or mounting bracket (sold separately).
With an increased sound pressure level (SPL) of 103 dB, the Q-6 is ideal for use in health clubs, sports bars, restaurants, hotel lobbies, and a wide variety of outdoor applications. The Q-6 is housed in a structural foam polystyrene enclosure and offers 70 Hz - 17 kHz frequency response with 88 dB sensitivity and 35W of power. - Fully weatherproof for year-round exposure to the elements
- Hemispherical coverage pattern
- Accurate, full-range voice announcements
- Enhanced high-fidelity music reproduction
- Fully assembled and ready to mount
In the Box Soundsphere Q-6 Compact Weatherproof Loudspeaker (35W, Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundsphere Q-6 Compact Weatherproof Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundsphere Q-6-BK Specs | Sensitivity | 88 dB SPL (1 W / 1 m) | | Maximum SPL | 103 dB SPL (35 W / 1 m) | | Power Handling | 35 W | | Frequency Response | 70 Hz to 17 kHz ±6 dB | | Impedance | 4 ohms | | Coverage | 180° Vertical
360° Horizontal | | Low Frequency Driver | 6.5" (165 mm) coaxial woofer | | High Frequency Driver | 0.5" (12.7 mm) dome tweeter | | Enclosure Material | Structural foam polystyrene with rustproof hardware | | Regulations | CE, RoHS | | Dimensions | Height: 11.9" (302 mm)
Sphere Diameter: 10" (254 mm)
Reflector Diameter: 14.9" (378 mm) | | Weight | 8 lb (3.6 kg) |
