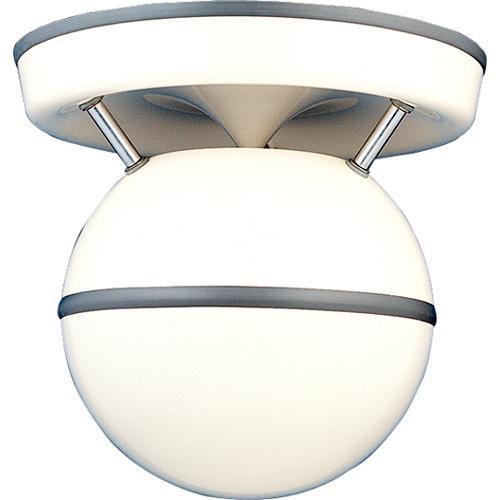

User Manual for Soundsphere Q-8 Loudspeaker Click to enlarge the picture
Contents of the user manual for the Soundsphere Q-8 Loudspeaker
- Product category: Installed Speakers Soundsphere
- Brand: Soundsphere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundsphere Installed Speakers
|
User manual for the Soundsphere Q-8 Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundsphere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundsphere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundsphere product will considerably shorten its lifespan!
|
Product description The white Soundsphere Q-8 Loudspeaker is an 8" omnidirectional speaker capable of delivering clear voice announcements, and high-fidelity foreground and background music. With an increased sound pressure level (SPL) of 114 dB, the Q-8 is an ideal solution for venues such as courtrooms, hotel lobbies, retail stores, restaurants, and nightclubs. In addition, the Soundsphere Q-8 features a true coaxial 8" 100W driver providing a 180° vertical and 360° horizontal area of coverage, maximizing speech intelligibility and music clarity. The Q-8 is housed in a fiberglass enclosure and offers 55 Hz - 17 kHz frequency response with a sensitivity of 94 dB. - Hemispherical coverage pattern
- Accurate, full-range voice announcements
- Enhanced high-fidelity music reproduction
- High power handling capability
In the Box Soundsphere Q-8 Loudspeaker (100W, White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundsphere Q-8 Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundsphere Q-8 Specs | Power Capacity | 100 W RMS | | Frequency Response | 55 Hz - 17 kHz ±6 dB | | Nominal Sensitivity | 94 dB (1 W / 1 m) | | Maximum SPL | 114 dB /1 m | | Rated Impedance | 8 ohms | | Coverage | 180° Vertical
360° Horizontal | | Low Frequency Driver | 8" (203 mm) (True-Coaxial) woofer | | High Frequency Driver | 1" (25 mm) Dome tweeter | | Enclosure Material | Fiberglass with gelcoat finish | | Regulations | CE, RoHS | | Dimensions | Height: 19" (485 mm)
Sphere Diameter: 16" (406 mm)
Reflector Diameter: 20" (508 mm) | | Weight | 22 lb (10 kg) | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 21.0 x 21.0 x 21.0" |
