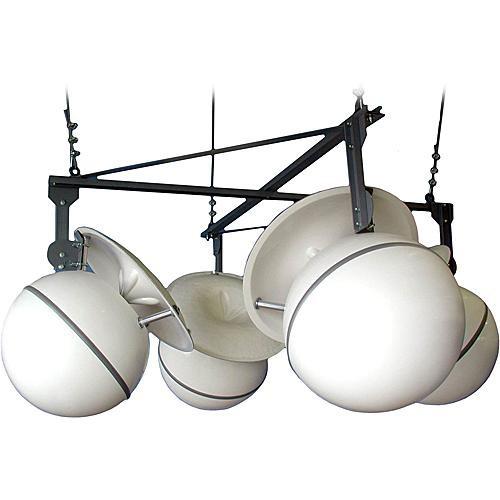

User Manual for Soundsphere Q-Combo 4 Loudspeaker with Boom Kit Click to enlarge the picture
Contents of the user manual for the Soundsphere Q-Combo 4 Loudspeaker with Boom
- Product category: Installed Speakers Soundsphere
- Brand: Soundsphere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundsphere Installed Speakers
|
User manual for the Soundsphere Q-Combo 4 Loudspeaker with Boom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundsphere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundsphere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundsphere product will considerably shorten its lifespan!
|
Product description The Soundsphere Q-Combo 4 Loudspeaker Kit is an omnidirectional speaker kit offering the ability to reproduce a wide field of sound that appears to come from everywhere. It includes four white Q-12A 12" loudspeakers, and the BK4 boom kit. The Q-12A is an omnidirectional speaker that provides a powerful sound system where clear voice announcements and high-fidelity foreground music at high sound pressure levels are required. Along with its hemispherical coverage pattern, the Q-12A loudspeaker provides high sensitivity (97 dB 1W/1m), and utilizes Soundsphere's Poly-Exponential Incidence Reflector. This loudspeaker can be mounted using the Soundsphere hanging kit or mounting bracket (sold separately). With an increased sound pressure level (SPL) of 121 dB, the Q-12A is an ideal solution for large venues such as open public areas, gymnasiums, auditoriums, arenas, ice rinks, transportation terminals, factories, and nightclubs. In addition, the Q-12A features a true coaxial 12" driver providing a 180° vertical and 360° horizontal area of coverage, maximizing speech intelligibility and music clarity. The Q-12A is housed in a fiberglass enclosure and offers 60 Hz - 16 kHz frequency response with 97 dB sensitivity and 250W of power. - Hemispherical coverage pattern
- Accurate, full-range voice announcements
- Enhanced high-fidelity music reproduction
- High sensitivity (94 dB 1W/1m)
- High SPL capability (118 dB @ 1m)
- Poly-Exponential Incidence Reflector
In the Box Soundsphere Q-Combo 4 Loudspeaker with Boom Kit (White) 4 x Q-12A 12" Loudspeaker (250W, White) ydfabcucruazuryyyyur BK4 Boom Kit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundsphere Q-Combo 4 Loudspeaker with Boom Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundsphere Q-12ACOMBO4 Specs | Sensitivity | 97 dB SPL (1 W / 1 m) | | Maximum SPL | 121 dB (250 W / 1 m) | | Power Handling | 250 W RMS | | Frequency Response | 60 Hz to 16 kHz ±6 dB | | Coverage | 180° Vertical
360° Horizontal | | Impedance | 8 ohms | | Low Frequency Driver | 12" (305 mm) true coaxial, treated pulp fiber LF and HF share common magnetic circuit | | High Frequency Driver | 2.8" (71 mm) titanium compression driver | | Enclosure Material | Fiberglass with gelcoat finish | | Regulations | CE, RoHS | | Dimensions | Height: 25" (635 mm)
Sphere Diameter: 22" (560 mm)
Reflector Diameter: 26" (660 mm) | | Weight | 39 lb (17.6 kg) |
