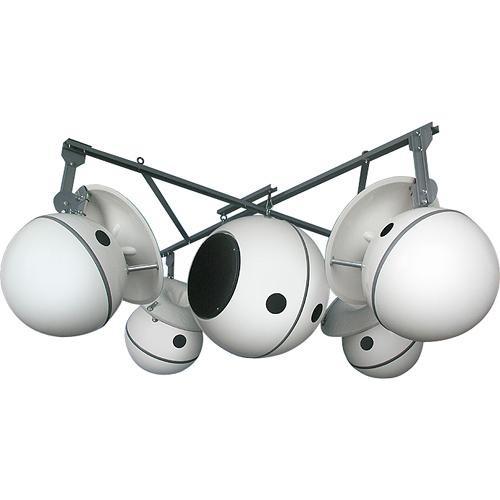

Product description The Soundsphere Q-Combo 5 Loudspeaker & Subwoofer Kit creates a single source of sound by using four Q-12A loudspeakers in acoustically difficult spaces when more than one speaker is required. The Combo 5 kit includes four white Q-12A loudspeakers, a white Q-SB2 subwoofer, and the BK5 boom kit.
The Q-12A loudspeaker features an hemispherical coverage pattern. It provides high sensitivity (97 dB 1W/1m), and utilizes Soundsphere's Poly-Exponential Incidence Reflector. In addition, the Q-12A features a true coaxial 12" driver providing a 180° vertical and 360° horizontal area of coverage, maximizing speech intelligibility and music clarity. The Q-12A is housed in a fiberglass enclosure and offers 60 Hz - 16 kHz frequency response with 97 dB sensitivity, 121 dB SPL, and 250W of power.
The Q-SB2 800W subwoofer features dual 18" drivers capable of a 360° vertical/horizontal area of coverage, while maintaining an enhanced low frequency response. The Q-SB2 is housed in a fiberglass enclosure with plated steel hardware and offers 40 Hz - 200 Hz frequency response with a high sensitivity of 99 dB. This kit is ideal for large venues such as open public areas, gymnasiums, auditoriums, arenas, ice rinks, transportation terminals, factories, and nightclubs. - Q-12A 12" Loudspeaker (250W, White) The white Soundsphere Q-12A 12" Loudspeaker is an omnidirectional speaker that provides a more powerful sound system where clear voice announcements and high-fidelity foreground music at high sound pressure levels are required. Along with its hemispherical coverage pattern, the Q-12A loudspeaker provides high sensitivity (97 dB 1W/1m), and utilizes Soundsphere's Poly-Exponential Incidence Reflector. This loudspeaker can be mounted using the Soundsphere hanging kit or mounting bracket (sold separately). With an increased sound pressure level (SPL) of 121 dB, the Q-12A is an ideal solution for large venues such as open public areas, gymnasiums, auditoriums, arenas, ice rinks, transportation terminals, factories, and nightclubs. In addition, the Q-12A features a true coaxial 12" driver providing a 180° vertical and 360° horizontal area of coverage, maximizing speech intelligibility and music clarity. The Q-12A is housed in a fiberglass enclosure and offers 60 Hz - 16 kHz frequency response with 97 dB sensitivity, and 250W of power.
- Hemispherical coverage pattern
- Accurate, full-range voice announcements
- Enhanced high-fidelity music reproduction
- High sensitivity (94 dB 1W/1m)
- High SPL capability (118 dB @ 1m)
- Poly-Exponential Incidence Reflector
- Q-SB2 Sub-Bass Supplement (800W, White) The white Soundsphere Q-SB2 Sub-Bass Supplement is an omnidirectional speaker designed for installations requiring enhanced low-frequency response at high sound pressure levels. Applications include gymnasiums, ice rinks, arenas, houses of worship, bars, nightclubs, and more.
The Q-SB2 features dual 18" drivers capable of a 360° vertical/horizontal area of coverage while maintaining an enhanced low-frequency response. The Q-SB2 is housed in a fiberglass enclosure with plated steel hardware and offers 40 - 200 Hz frequency response with a high sensitivity of 99 dB. The Q-SB2 is ideal as a sub-bass supplement for Q-12A loudspeaker systems (sold separately). - Produces a hemisphere of enhanced low-frequency audio at high sound pressure levels
- Advanced exit compression offers increased SPL often required for high ceiling applications
- Enhanced high-fidelity music reproduction
- Plated steel hardware and a gelcoat finish
In the Box Bundle Items 4 x Q-12A 12" Loudspeaker (250W, White) ydfabcucruazuryyyyur Q-SB2 Sub-Bass Supplement (800W, White)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundsphere Q-Combo 5 Loudspeaker & Subwoofer Kit with BK5 Boom Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Q-12A 12" Loudspeaker (250W, White)
| Sensitivity | 97 dB SPL (1 W / 1 m) | | Maximum SPL | 121 dB (250 W / 1 m) | | Power Handling | 250 W RMS | | Frequency Response | 60 Hz to 16 kHz ±6 dB | | Coverage | 180° Vertical
360° Horizontal | | Impedance | 8 ohms | | Low Frequency Driver | 12" (305 mm) true coaxial, treated pulp fiber LF and HF share common magnetic circuit | | High Frequency Driver | 2.8" (71 mm) titanium compression driver | | Enclosure Material | Fiberglass with gelcoat finish | | Regulations | CE, RoHS | | Dimensions | Height: 25" (635 mm)
Sphere Diameter: 22" (559 mm)
Reflector Diameter: 26" (660 mm) | | Weight | 39 lb (17.6 kg) | | | | Box Dimensions (LxWxH) | 27.0 x 27.0 x 26.6" | - Q-SB2 Sub-Bass Supplement (800W, White)
| Power Capacity | 800 W RMS | | Frequency Response | 40 - 200 Hz ±6 dB | | Crossover Frequency | 150 Hz (18 dB/octave) (recommended) | | Nominal Sensitivity | 99 dB (1 W / 1 m) | | SPL | 128 dB (800 W / 1 m) | | Impedance | 4 ohms | | Coverage | 360° Vertical/Horizontal | | Transducer | 2 x 18" (457 mm) | | Voice Coil | 4" (102 mm) | | Enclosure Material | Fiberglass with gelcoat finish | | Input Connector | Neutrik Speakon NL4MPR (4-pin) receptacle | | Dimensions | Height: 27.75" (705 mm)
Sphere Diameter: 32" (813 mm) | | Weight | 82 lb (37.2 kg) |
