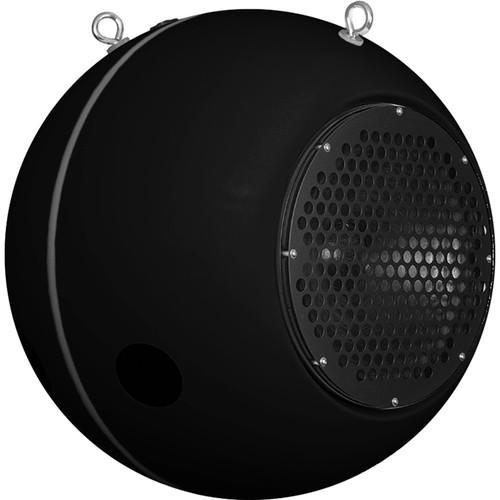

User Manual for Soundsphere Q-SB2 Sub-Bass Supplement Click to enlarge the picture
Contents of the user manual for the Soundsphere Q-SB2 Sub-Bass Supplement
- Product category: Installed Speakers Soundsphere
- Brand: Soundsphere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Soundsphere Installed Speakers
|
User manual for the Soundsphere Q-SB2 Sub-Bass Supplement contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Soundsphere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Soundsphere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Soundsphere product will considerably shorten its lifespan!
|
Product description The black Soundsphere Q-SB2 Sub-Bass Supplement is an omnidirectional speaker designed for installations requiring enhanced low-frequency response at high sound pressure levels. Applications include gymnasiums, ice rinks, arenas, houses of worship, bars, nightclubs, and more.
The Q-SB2 features dual 18" drivers capable of a 360° vertical/horizontal area of coverage while maintaining an enhanced low-frequency response. The Q-SB2 is housed in a fiberglass enclosure with plated steel hardware and offers 40 - 200 Hz frequency response with a high sensitivity of 99 dB. The Q-SB2 is ideal as a sub-bass supplement for Q-12A loudspeaker systems (sold separately). - Produces a hemisphere of enhanced low-frequency audio at high sound pressure levels
- Advanced exit compression offers increased SPL often required for high ceiling applications
- Enhanced high-fidelity music reproduction
- Plated steel hardware and a gelcoat finish
In the Box Soundsphere Q-SB2 Sub-Bass Supplement (800W, Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Soundsphere Q-SB2 Sub-Bass Supplement in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundsphere Q-SB2-BK Specs | Power Capacity | 800 W RMS | | Frequency Response | 40 - 200 Hz ±6 dB | | Crossover Frequency | 150 Hz (18 dB/octave) (recommended) | | Nominal Sensitivity | 99 dB (1 W / 1 m) | | SPL | 128 dB (800 W / 1 m) | | Impedance | 4 ohms | | Coverage | 360° Vertical/Horizontal | | Transducer | 2 x 18" (457 mm) | | Voice Coil | 4" (102 mm) | | Enclosure Material | Fiberglass with gelcoat finish | | Input Connector | Neutrik Speakon NL4MPR (4-pin) receptacle | | Dimensions | Height: 27.75" (705 mm)
Sphere Diameter: 32" (813 mm) | | Weight | 82 lb (37.2 kg) |
