User Manual for SoundSwitch Digital Lighting Workstation Hardware Software Bundle for DJs and Lighting Techs Click to enlarge the picture
Contents of the user manual for the SoundSwitch Digital Lighting Workstation Hardware Software
- Product category: Audio Interfaces SoundSwitch
- Brand: SoundSwitch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundSwitch Audio Interfaces
 |
User manual for the SoundSwitch Digital Lighting Workstation Hardware Software contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundSwitch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundSwitch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundSwitch product will considerably shorten its lifespan!
|
Product description Well suited for lighting techs, mobile and club DJs, touring DJs, and DJs who play alongside vocalists and MCs, the SoundSwitch is an advanced digital lighting workstation that quickly and easily syncs DMX lighting visuals with live audio seamlessly. The software is compatible with Serato DJ, Virtual DJ, Traktor DJ Pro 2, and Ableton Live. Create lighting displays and play them back without compromising the freestyle nature of live performance. SoundSwitch puts live control in the DJs hands, enabling them to play any song, in any order, while their lighting remains in sync.

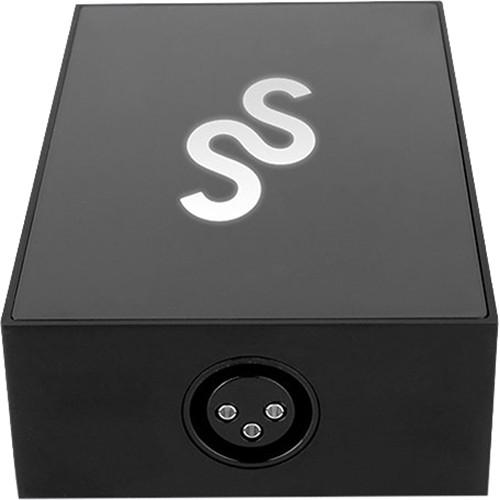

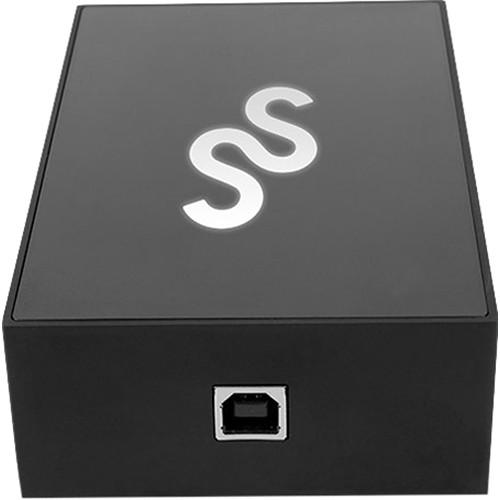

The SoundSwitch hardware box features a 3-pin DMX connector to communicate with intelligent lighting fixtures, while the included USB cable connects to your computer. Once setup, the software provides two modes including edit and performance. Edit mode allows you to set up your venue and provides access to a large, cloud-based library of popular fixtures, including LED PAR cans, moving heads, lasers, scanners, and atmospheric effects, such as CO2 cannons and haze machines. Access songs from an iTunes or DJ software library, set your beat grid, and start timeline-sequencing your light's intensity, color, strobe, pan & tilt, and more.
Performance mode allows you to seamless DJ while controlling the SoundSwitch software in the background. Simply load a song and hit play, and all the programming that was performed in edit mode is played back in total synchronicity. What's more, pitch adjustments, scratching, and looping on-the-fly will keep your audio and lighting tightly integrated. The crossfader not only blends two audio tracks, but also blends the lighting scripts. If you don't wish to program scripts for every song in your library, you can create banks of autoloops, which generate patterns in time with the BPM and can be used with any unscripted track for on-the-fly performances. -
- Plug-and-play interface that automatically syncs lighting with music
- All lights sync with the beat grid right out of the box and no programming is required
- Compatible with both audio and video formats and allows the DJ to concentrate on their performance
- Integrates seamlessly with existing iTunes, Serato, and, Virtual DJ libraries
- Works with all Serato and Virtual DJ functions including scratching, loops, fading, pitch bend, etc.
- Cloud based fixture library updates automatically
- Little lighting knowledge makes big beautiful shows
- Compatible with Windows and Mac OS X systems
In the Box SoundSwitch Digital Lighting Workstation Hardware/Software Bundle for DJs and Lighting Techs USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundSwitch Digital Lighting Workstation Hardware Software Bundle for DJs and Lighting Techs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundSwitch SOUNDSWITCH Specs | Mac System Requirements | Supported Operating Systems
Mac OS X 10.14
Mac OS X 10.13
Mac OS X 10.12
Mac OS X 10.11
Mac OS X 10.9
Processor
i3: 1.07 GHz 32-/64-bit
i5: 1.07 GHz 32-/64-bit
i7: 1.07 GHz 32-/64-bit
Screen Resolution: 1280 x 720
Memory: 4 GB
USB: Available USB 2.0 Port
Hard-Drive Space: 5 GB Free | | Windows System Requirements | Supported Operating Systems
Windows 10
Windows 8.1
Windows 7
Processor
i3: 1.07 GHz 32-/64-Bit
i5: 1.07 GHz 32-/64-Bit
i7: 1.07 GHz 32-/64-Bit
Screen Resolution: 1280 x 720
Memory: 4 GB
USB: Available USB 2.0 Port
Hard-Drive Space: 5 GB Free | | Supported File Formats | Audio: MPEG Layer III (.mp3), MPEG-4 (.m4a), WAV (.wav), FLAC (.flac), Ogg-Vorbis (.ogg), AIFF (.aiff/.aif)
Video: MPEG-4 (.mp4) | | Supported Software Features | Serato DJ and VDJ 8 are Supported Directly via an API Connection Providing Support for:
Scripted Tracks
Autoloops
Cross and Upfader Mixing
Reverse Playback
MIDI Control
Ableton Live and Traktor Pro 2 are Supported Using Ableton Link Providing Support for:
Autoloops
MIDI Control
Wireless Timing Connection | | DMX Connectors | 3-Pin XLR | | Refresh Rate | DMX Refresh Rate: 35 Hz | | USB Connector | USB 2.0 Type-B | | Approvals | CE, FCC | | Dimensions (L x W x H) | 5.0 x 3.1 x 1.5" / 128.0 x 79.0 x 38.0 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.365 lb | | Box Dimensions (LxWxH) | 8.6 x 6.1 x 3.3" |
