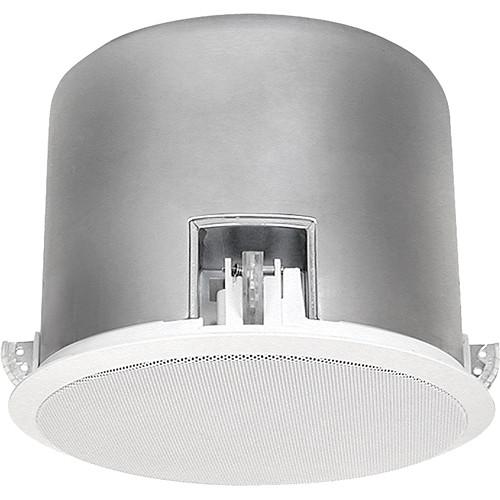

User Manual for SoundTube Entertainment CM-EZ Series CM-EZ-II 8" Coaxial In-Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment CM-EZ Series CM-EZ-II 8"
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment CM-EZ Series CM-EZ-II 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The white, two-way, blind-mount, CM-EZ Series CM-EZ-II 8″ Coaxial In-Ceiling Speaker from SoundTube Entertainment incorporates an 8" polypropylene driver with rubber surround and a 7.3 liter steel backcan for an extended frequency response of 54 Hz to 22 kHz, -10 dB. The speaker features the integrated blind-mount Snap Cam 4-point, spring-loaded mounting system and 21-gauge steel tile bridge that ensure rapid and secure installation in any drop-tile ceiling application. It also features a quick-release mechanism for easy servicing. The speaker incorporates a 6-position tap switch with transformer bypass position for 25/70.7/100V modes. The ceramic input terminal accepts up to 10-gauge plenum-rated signal wire and includes a thermal fuse. This speaker is suitable for use in voice alarm applications subject to EN60849 and BS5839-8 regulations. Engineered for general background to foreground music and paging applications, the CM-EZ-II is suitable for medical facilities, retail stores, restaurants, airports, places of worship, conference centers, and boardrooms. - Features an 8" (203mm) polypropylene cone with butyl rubber surround and a 1" (25mm) polypropylene balanced dome tweeter with FerroFluid
- Integrated backcan with 25/70.7/100V tap settings with transformer bypass position for ease of ordering, stocking, and installation
- Snap Cam four-point, spring-loaded mounting system for rapid installation
- Quick-release mechanism for easy servicing
- Adaptable to ceiling thicknesses ranging from 0.5 to 0.75" (12.7 to 19.05mm)
- UL 1480 (UEAY) and 2043 approved
- High-quality white paint finish
In the Box SoundTube Entertainment CM-EZ Series CM-EZ-II 8" Coaxial In-Ceiling Speaker (White) Tile Bridge UL-Listed Flex Conduit Clamp Paint Shield Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM-EZ Series CM-EZ-II 8" Coaxial In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM-EZ-II Specs | System Type | 8" (203 mm), coaxial, open-ceiling, sealed
20 W transformer for 25/70.7/100 V or transformer bypass position | | Impedance | Nominal: 8 Ω Impedance listed per IEC 60268-5 with a minimum less than 80% the nominal impedance. | | Sensitivity | 87.5 Hz to 20 kHz @ 2.83 V/1 m
87.5 Hz to 22 kHz @ 1 W/1 m 1 W/1 m sensitivity determined using nominal impedance. | | Frequency Response | 73 Hz to 19 kHz @ -3 dB
54 Hz to 22 kHz@ -10 dB Frequency response measured in half or full space as dictated by speaker mounting configuration. | | Max. Program Power | 80 W Maximum program power is 3 dB above maximum continuous power. | | Max. Continuous Power RMS | 40 W Continuous power rating, EIA-426-B test. | | Max. Power SPL | 103.5 dB @ 3.2' (1.0 m) Maximum output based on maximum continuous power. | | Coverage Angle | 125° (-6 dB @ 2 kHz)
55° (-6 dB @ 10 kHz)
90° (averaged 2 to 10 kHz) | | Directivity Factor | 5.1 (averaged 100 Hz to 10 kHz); 5.5 @ 2 kHz | | Directivity Index | 5.9 dB (averaged 100 Hz to 10 kHz); 7.4 dB @ 2 kHz | | Tap Selector | Six-position rotary switch with transformer bypass position | | Transformer Taps | Output at 70.7 V:
100.5 dB @ 20 W
97.5 dB @ 10 W
94.5 dB @ 5 W
91.5 dB @ 2.5 W
88.5 dB @ 1.25 W
Output at 100 V:
100.5 dB @ 20 W
97.5 dB @ 10 W
94.5 dB @ 5 W
91.5 dB @ 2.5 W
Output at 25 V:
91.5 dB @ 2.5 W
88.5 dB @ 1.3 W
85.5 dB @ 0.63 W | | Transducer | Low-Frequency Driver: 8" (203 mm) polypropylene cone, butyl rubber surround
High-Frequency Driver: 1" (25 mm) polypropylene dome tweeter | | Voice Coil | Low-Frequency: 1.0" (25.4 mm) | | Crossover Frequency | 5.6 kHz | | Network Type | Low & High Pass: 6 dB per octave, 1st order | | Enclosure Material | Drawn steel backcan with ABS baffle | | Grille | Steel with powder-coat finish | | Inputs | 18-gauge hard-wired leads | | Approvals | UL 1480 (UEAY)- and 2043-approved
CE
RoHS | | Dimensions | Backcan Diameter: 9.13" (231.80 mm)
Backcan Height: 7.5" (190.5 mm)
Visible Diameter: 10.75" (273.10 mm)
Visible Height: 0.2" (5.1 mm)
Mounting Hole Diameter: 9.75" (247.70 mm)
Minimum / Maximum Ceiling Thickness: 0.50 to 0.75" (12.70 to 19.05 mm) | | Weight | 7.0 lb (3.2 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 10.0" |
