User Manual for SoundTube Entertainment CM1001DT 10" In-Ceiling Subwoofer Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment CM1001DT 10" In-Ceiling Subwoofer
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment CM1001DT 10" In-Ceiling Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|

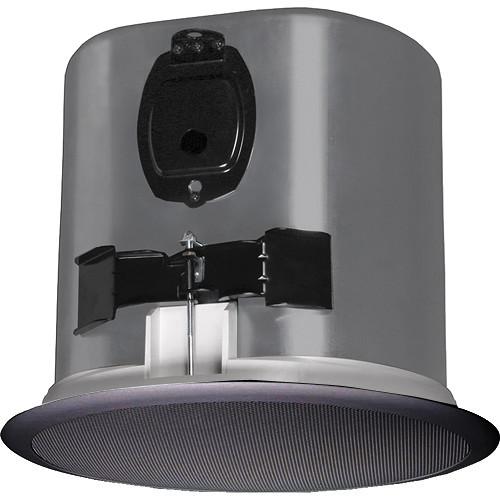

Product description The black CM1001DT 10" In-Ceiling Subwoofer by SoundTube is a blind-mount, in-ceiling speaker tuned for maximum output and performance across the operating bandwidth. The 10" speaker has an accentuated 70 Hz peak to maximize listener's low-frequency experience. The CM1001DT speaker design, incorporates a low-profile grille and five position tap switch with a transformer bypass position. This 4 ohm speaker features a 150W multi tap and bypass transformer.
Mounting hardware is included and features a fast and secure constant-tension fixed-wing mounting system. - One 10" polypropylene cone with a butyl rubber surround on a reinforced ABS baffle
- Extra-large SoundTube - specific 12.9 liter steel DeepCan for quality bass response
- High output and efficiency with an accentuated 70 Hz peak to maximize listener's low-frequency experience
- Incorporates a painted steel grille for durability
- Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixed to ceiling
In the Box SoundTube Entertainment CM1001DT 10" In-Ceiling Subwoofer (Black) Color-Coded (Purple) Tile Bridge Grille UL-Rated Cover Plate Paint Shield Restraint Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM1001DT 10" In-Ceiling Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM1001D-T Specs | Speaker Type | 10" (254 mm) subwoofer, in-ceiling, ported | | Transformer | 150 W for 25/70.7/100 V or transformer bypass | | Nominal Impedance | 4 Ω | | Sensitivity | 92 dB @ 2.83 V/1 m
89 dB @ 1 W/1 m (1 W 1 m sensitivity determined using nominal impedance) | | Frequency Response | 55 Hz - 118 kHz @ -3 dB
41 Hz - 224 kHz @ -10 dB Frequency response measured in half or full space as dictated by speaker mounting configuration. | | Max. Program Power | 300 W (Max program power is 3 dB above max continuous power) | | Max. Continuous Power RMS | 150 W (Continuous power rating, EIA-426-B test) | | Max. power SPL | 111 dB @ 1 m 6 (Based on maximum continuous power) | | Low Frequency Driver | 10" (254 mm) Polypropylene cone, butyl rubber surround | | Low Frequency Voice Coil | 1.38" (3.50 cm) | | Crossover Frequency | 100 Hz | | Low-Pass Filter | 6 dB per octave, 1st order | | Input | 1 x 4-pin, Euroblock terminal connection | | Dimensions (Ø x H) | 14.8 x 12.5" (37.5 x 31.7 cm) | | Mounting Holes Diameter | 12.8" (32.4 cm) | | Ceiling Thickness | 0.3 - 1.9" (6.4 - 48.5 mm) minimum to maximum | | Weight | 12.3 kg (27.0 lb) | | Approvals | UL 1480 and 2043
CE
RoHS | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 17.0" |
