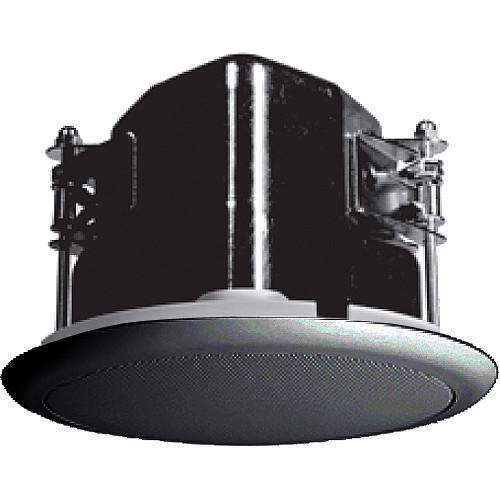

User Manual for SoundTube Entertainment CM31-EZ In-Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment CM31-EZ In-Ceiling Speaker
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment CM31-EZ In-Ceiling Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The black CM31-EZ In-Ceiling Speaker from SoundTube Entertainment is a 3" speaker for distributed audio applications. The CM31-EZ incorporates a low profile grille with a total visible footprint of 6.3" diameter and an integrated backcan and driver design for ultra compact in-ceiling installations. The in-ceiling speaker includes a six-position tap switch with a transformer bypass position. A tile bridge and mounting hardware are included and feature a fast and secure constant tension Speed Wing mounting system. The CM31-EZ Speaker incorporates weatherized components for indoor/outdoor applications.
Engineered for rapid installation and low profile mounting for smaller venues, this speaker is suitable for retail, restaurants, conference rooms, educational facilities, or any setting where full-range intelligibility, low profile design, and in-ceiling installation ease are paramount. - One 3" (76.2mm) full-range high extrusion, high-fidelity polypropylene driver with butyl rubber surround
- Weatherized components for indoor/outdoor applications
- Shallow 3.5" deep all-steel backcan with integrated driver and baffle configuration
- Ultra-compact design with a total visible footprint of less than 6.3" diameter
- Rapid installation, blind-mount, fixed wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1" to 1.5"
- Corrosion-resistant, powder-coated aluminum grille with snap fit attachment
- UL 1480 (UEAY) and 2043 approved
In the Box SoundTube Entertainment CM31-EZ In-Ceiling Speaker (Black) Tile Bridge Conduit Connector Paint Mask Wire Nuts Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM31-EZ In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM31-EZ Specs | System Type | 3" full-range, in-ceiling (10 W transformer for 25 / 70.7 / 100 V or transformer bypass position) | | Impedance | Nominal: 8 Ω Impedance listed per IEC 60268-5 with a minimum less than 80% the nominal impedance | | Sensitivity | 85.0 dB (dB @ 2.83 V/1 m)
85.0 dB (dB @ 1 W/1 m) at nominal impedance | | Frequency Response | 218 Hz - 14 kHz (-3 dB)
135 Hz - 22 kHz (-10 dB) Frequency response measured in half or full space as dictated by speaker mounting configuration | | Power | Maximum Program: 40 W at 3 dB above maximum continuous power
Maximum Continuous RMS: 20 W
Maximum SPL:@ 1 m 98.0 dB | | Coverage Angle | 175° (-6 dB @ 2 kHz)
45° (-6 dB @ 10 kHz)
120° (averaged from 2 to 10 kHz) | | Directivity | Factor: 4.5 (averaged 100 Hz - 10 kHz), 3.5 (2 kHz) (Q)
Index (DI) dB: 5.3 (averaged 100 Hz - 10 kHz), 5.2 (2 kHz) | | Tap Selector | 6-position rotary switch or transformer bypass position (transformer accessory only) | | Transducer | Full-Range Driver: 3.0" (76.1 mm) Polypropylene driver with butyl rubber surround | | Frequency | Low Voice Coil: 0.75" (19.0 mm) | | Enclosure Material | ABS baffle, steel backcan | | Grille | Corrosion-resistant, powder-coated aluminum | | Color | Black | | Input | Hardwire lead | | Dimensions | Backcan Diameter: 5.5" (139.7 mm)
Backcan Height: 3.5" (88.9 mm)
Visible Height: 0.6" (15.2 mm)
Visible Diameter: 6.3" (160.6 mm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 8.0" |
