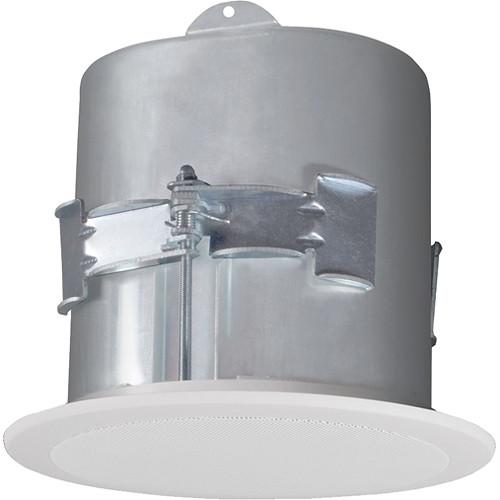

User Manual for SoundTube Entertainment CM400i 4" Coaxial In-Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment CM400i 4" Coaxial In-Ceiling
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment CM400i 4" Coaxial In-Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The white CM400i 4" Coaxial In-Ceiling Speaker by SoundTube is a two-way, blindmount, in-ceiling speaker that delivers effective low-end response and optimal off-axis performance. The CM400i speaker design incorporates a low-profile grille and five position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constant-tension fixed-wing mounting system. - One 4" polypropylene woofer and one 1" convex aluminium tweeter with FerroFluid cooling
- Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixed to ceiling
- Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting
- Powder-coated steel grille for lasting durability
- 90 dB average sensitivity, offers high output capabilities and reduced amplification costs
- High-quality white paint finish
In the Box SoundTube Entertainment CM400i 4" Coaxial In-Ceiling Speaker (White) Color-coded (orange) tile bridge Paint mask UL cover plate Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM400i 4" Coaxial In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM400I Specs | Speaker Type | 48" coaxial, in-ceiling, ported (20 W transformer for 25, 70.7, 100 VDC or transformer bypass) | | Impedance | 4 Ω nominal | | Sensitivity | 90 dB @ 2.83 V/1 m
87 dB @ 1 W/1 m (1 W 1 m sensitivity determined using nominal impedance) | | Frequency Response | 90 Hz - 22 kHz @ -3 dB
75 Hz - 22 kHz @ -10 dB (Frequency response measured in half or full space as dictated by speaker mounting configuration) Frequency response measured in half or full space as dictated by speaker mounting configuration. | | Max. Program Power | 40 W (Max program power is 3 dB above max continuous power) | | Max. Continuous Power RMS | 20 W (Continuous power rating, EIA-426-B test) | | Max. power SPL | 100 dB @ 1 m (Max output based on max continuous power) | | Coverage Angle | 100º (-6 dB @ 2 kHz)
65º (-6 dB @ 10 kHz)
95º (averaged 2-10 kHz) | | Directivity Factor | 4.6 (averaged 100 Hz - 10 kHz)
4.3 (2 kHz) | | Directivity Index | 5.6 dB (averaged 100 Hz - 10 kHz)
6.3 dB (2 kHz) | | Tap Selector | 5-position rotary switch with transformer bypass position | | Transducer | Low-Frequency Driver: 4" (102 mm) Polypropylene cone, butyl rubber surround
High-Frequency Driver: 1" (25 mm) Silk dome tweeter | | Voice Coil | Low-Frequency: 0.75" (19 mm) | | Crossover Frequency | 1.8 kHz | | Network Type | Low and High Pass 12 dB per octave, 2nd order | | Certifications | UL 1480 and 2043 Approved
CE Approved | | RoHS | Approved | | Input Connector | 1 x 4-pin, Euroblock terminal | | Color | White | | Mounting Holes Diameter | 6.6" (167.6 mm) | | Ceiling Thickness | 0.025 to 1.87" (0.6 to 47.5 mm) minimum to maximum | | Dimensions (Ø x D) | 6.05 x 6.55" (153.7 x 166.4 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 9.0" |
