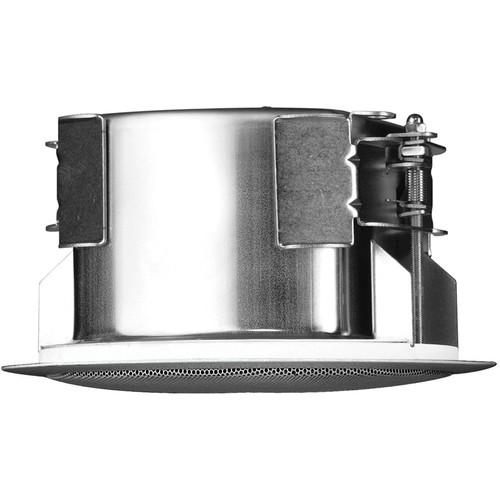

Product description The black CM42-EZs-II 4" Coaxial In-Ceiling Shallow Backcan Speaker from SoundTube Entertainment consists of a 4" woofer and a 0.75" silk dome tweeter. This 20 watt speaker is designed for applications with limited plenum space, and incorporates a SoundTube-specific shallow backcan with a 3.5" installed depth. The in-ceiling speaker includes a six-position tap switch with a transformer bypass position. A tile bridge and mounting hardware are included and it features a fast and secure constant tension Speed Wing mounting system.
The CM42-EZs-II speaker is designed to fit most industrial or commercial suspended ceilings, and features a slim profile on surface mount. - One 4" woofer with cloth surround, and one 0.75" silk dome tweeter.
- 6-position tap switch for 25/70.0/100V and 16Ω transformer bypass position to allow easy ordering, stocking, and installation.
- Voice Intelligibility with an average coverage angle of 100°.
- 16Ω Settings allow for use of 2, 4, or 6 speakers in a system using a standard amplifier without a transformer.
- Incorporates a painted steel grille for increased durability.
- UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.
In the Box SoundTube Entertainment CM42-EZs-II 4" Coaxial In-Ceiling Shallow Backcan Speaker (Black) Tile Bridge UL-Listed Flex Conduit Clamp Paint Shield Hole Template Wire Nuts Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM42-EZs-II 4" Coaxial In-Ceiling Shallow Backcan Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM42-EZS-II Specs | System Type | 4" coaxial, in-ceiling, sealed | | Impedance | Nominal: 16 Ω | | Sensitivity | 84.5 dB (dB @ 2.83 V/1 m)
87.5 dB (dB @ 1 W/1 m) at nominal impedance | | Frequency Response | 160 Hz to 20 kHz (-3 dB)
125 Hz to 22 kHz (-10 dB) Frequency response measured in half or full space as dictated by speaker mounting configuration | | Maximum Power | Program: 40 W at 3 dB above max continuous power
Continuous RMS: 20 W
SPL: 100.5 dB @ 3.3' (1 m) | | Transformer | 25/70.7/100 V | | Coverage Angle | 170° (-6 dB @ 2 kHz)
95° (-6 dB @ 10 kHz)
100° (averaged from 2 to 10 kHz) | | Directivity Factor | 4.3 (averaged 100 Hz - 10 kHz), 4.2 (2 kHz) | | Directivity Index | 5.7 (averaged 100 Hz - 10 kHz), 6.2 (2 kHz) | | Tap Selector | 6-position rotary switch or transformer bypass position | | Transducer | Low Frequency Driver: 4" (102 mm) treated fiber cone, cloth surround
High Frequency Driver: 0.75" (19 mm) silk dome tweeter | | Voice Coil | Low Frequency: 0.5" (12.7 mm) | | Crossover Frequency | 5 kHz | | Network Type | Low Pass: 12 dB/octave, 2nd order
High Pass: 6 dB/octave, 1st order | | Enclosure Material | ABS baffle, steel backcan, sealed | | Color | Black | | Grille | Painted steel | | Certifications & Approvals | UL 1480 (UEAY) and 2043, CE and RoHS approved | | Input | 1 x 4-position ceramic terminal strip | | Dimensions | Backcan Diameter: 5.78" (146.8 mm)
Backcan Height: 3.75" (95.3 mm)
Visible Diameter: 7.5" (190.5 mm)
Visible Height: 0.33" (8.4 mm)
Mounting Hole Diameter: 6.5" (165 mm)
Max Ceiling Thickness: 0.97" (24.6 mm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 5.0" |
