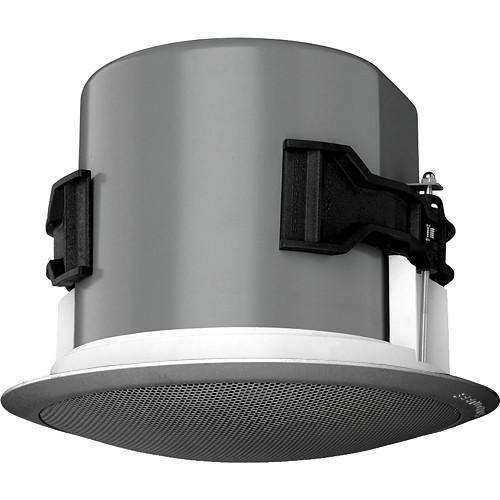

Product description The black CM500i 5.25" Coaxial In-Ceiling Speaker by Soundtube is a two-way blind-mount in-ceiling speaker that delivers effective low-end response and optimal off-axis performance. SoundTube's proprietary BroadBeam waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The CM500i speaker design incorporates a low-profile grille, proprietary M5 motor-board, and a six-position tap switch with voice coil direct position. Mounting hardware is included and features a fast and secure constant-tension, fixed-wing mounting system. - One 5.25" polypropylene woofer and one 1" convex titanium tweeter
- BroadBeam waveguide technology delivers a consistent dispersion coverage pattern
- Accessible six-position tap switch for 25/70.7/ 100 V and transformer bypass position
- Tuned port on baffle for added musicality and bass response
- Incorporates a steel grille with protective powder-coated finish
- Adaptable to material thicknesses
In the Box SoundTube Entertainment CM500i 5.25" Coaxial In-Ceiling Speaker (Black) Tile bridge. Conduit plate Paint mask Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM500i 5.25" Coaxial In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM500I Specs | Speaker Type | 5.25" coaxial, in-ceiling | | Transformer Isolation Voltage | 64 W for 25/70.7/100 V or transformer bypass | | Impedance | 8 Ω | | Sensitivity | 86.5 dB @ 2.83 V/1 m
86.5 dB @ 1 W/1 m (1 W 1 m sensitivity determined using nominal impedance) | | Frequency Response | 75 Hz - 22 kHz @ -3 dB
55 Hz - 22 kHz @ -10 dB (Frequency response measured in half or full space as dictated by speaker mounting configuration) | | Max. Program Power | 150 W (Max program power is 3 dB above max continuous power) | | Max. Continuous Power RMS | 75 W (Continuous power rating, EIA-426-B test) | | Maximum Power | 105.5 dB @ 1 m SPL(Max output based on max continuous power) | | Coverage Angle | 95° (-6 dB @ 2 kHz)
125º (-6 dB @ 10 kHz)
105º (averaged 2-10 kHz) | | Directivity Factor | 4.8 (averaged 100 Hz - 10 kHz)
9.5 (2 kHz) | | Directivity Index | 6.1 dB (averaged 100 Hz - 10 kHz)
9.8 dB (2 kHz) | | Tap Selector | 6-position rotary switch with voice coil direct | | Transducer | Low-Frequency Driver: 5.25" (133 mm) Polypropylene cone, butyl rubber surround
High-Frequency Driver: 1" (25 mm) Convex aluminium tweeter with waveguide | | Voice Coil | Low-Frequency: 1" (25.4 mm) | | Crossover Frequency | 3 kHz | | Network Type | Low and High Pass 12 dB per octave, 2nd order | | Enclosure Material | Drawn aluminium backcan with ABS baffle. | | Inputs | 4-pin, 5 mm Euroblock for individual or daisy chain connection | | Color | Black | | Mounting Holes Diameter | 10.5" (266.7 mm) | | Ceiling Thickness | 0.035 to 1.6" (0.9 mm to 40.6 mm) minimum to maximum | | Regulatory | UL 1480 and 2043 pending, CE Approved | | RoHS | Approved | | Dimensions (Ø x D) | 8.6 x 7.75" (219 x 197 mm) | | Weight | 3.4 kg (7.5 lb) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 16.0 x 14.0 x 14.0" |
