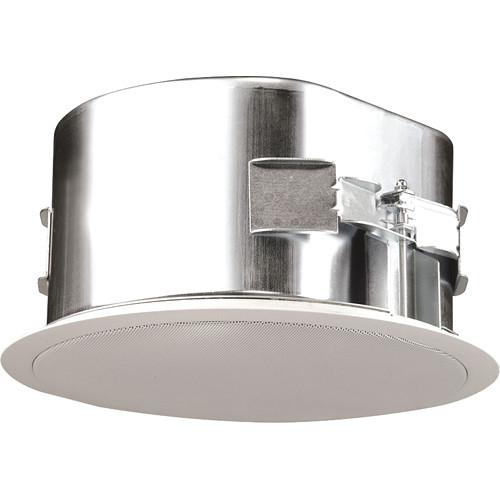

Product description The white CM52-BGM 5.25" Coaxial Shallow Backcan In-Ceiling Speaker by SoundTube Entertainment is a two-way, blindmount, speaker which delivers high-efficiency performance across the operating bandwidth. The CM52BGM speaker design incorporates a low-profile grille and a six position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constant-tension fixed-wing mounting system. - One 5.25" polypropylene woofer with rubber surround and one 0.75" silk dome tweeter
- BeamRing technology for mid-range clarity and wide off axis performance
- Accessible six-position tap switch for 25/70.7/100 V and transformer bypass position
- Tuned port on baffle for added musicality and bass response
- Incorporates a steel grille with protective powder coated finish
In the Box SoundTube Entertainment CM52-BGM 5.25" Coaxial Shallow Backcan In-Ceiling Speaker (White) Color-Coded (Orange) Tile Bridge UL Listed 0.5" Conduit Clamp Paint Shield Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM52-BGM 5.25" Coaxial Shallow Backcan In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM52-BGM Specs | Speaker Type | 5.25" coaxial, in-ceiling | | Transformer Isolation Voltage | 64 W for 25/70.7/100 V or transformer bypass | | Impedance | 16 Ω | | Sensitivity | 84.5 dB @ 2.83 V/1 m
87.5 dB @ 1 W/1 m (sensitivity determined using nominal impedance) | | Frequency Response | 90 Hz - 20 kHz @ -3 dB
65 Hz - 22 kHz @ -10 dB (measured in half or full space as dictated by speaker mounting configuration) | | Max. Program Power | 40 W (3 dB above maximum continuous power) | | Max. Continuous Power RMS | 20 W (Continuous power rating, EIA-426-B test) | | Max. power SPL | 100.5 dB @ 1 m (Maximum output based on maximum continuous power) | | Coverage Angle | 170º (-6 dB @ 2 kHz)
95º (-6 dB @ 10 kHz)
100º (averaged 2 - 10 kHz) | | Directivity Factor | 4.3 (averaged 100 Hz - 10 kHz)
4.2 (2 kHz) | | Directivity Index | 5.7 dB (averaged 100 Hz - 10 kHz)
6.2 dB (2 kHz) | | Tap Selector | 6-position rotary switch with transformer bypass position | | Transducer | Low-Frequency Driver: 5.25" (13.40 cm) Polypropylene cone, butyl rubber surround
High-Frequency Driver: 0.75" (1.90 cm) Silk dome tweeter | | Voice Coil | Low-Frequency: 1.0" (25.4 mm) | | Crossover Frequency | 5 kHz | | Network Type | Low and High Pass 12 dB per octave, 2nd order | | Connector | 1 x 4-position ceramic terminal strip, input | | Mounting Holes Diameter | 10.5" (26.7 cm) | | Ceiling Thickness | 0.035 - 1.6" (0.9 - 40.6 mm) minimum to maximum | | Approvals | UL 1480 and 2043 pending
CE
RoHS | | Dimensions (Ø x D) | 9.67 x 3.75" (24.56 x 9.53 cm) | | Weight | 7.9 lb (3.6 kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 13.0 x 13.0 x 8.0" |
