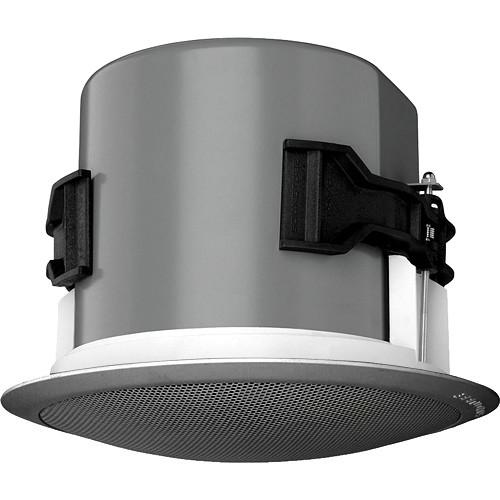

User Manual for SoundTube Entertainment CM600i 6.5" Coaxial In-Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment CM600i 6.5" Coaxial In-Ceiling
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment CM600i 6.5" Coaxial In-Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The black CM600i 6.5" Coaxial In-Ceiling Speaker by SoundTube is a two-way, blindmount, in-ceiling speaker. The CM600I speaker design incorporates a low-profile grille and a 6 position tap switch with a transformer bypass position. The speaker features a constant-tension fixed-wing mounting system. Mounting hardware is included. - One 6.5" polypropylene woofer and one 1" convex aluminum tweeter with FerroFluid cooling
- Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixed to ceiling
- Separate tool free magnetic grille and bezel assembly with integrated safety cable for easy installation and in field painting
- Powder-coated steel grille for lasting durability
- 88 dB average sensitivity, offers high output capabilities and reduced amplification costs
- High-quality black paint finish
In the Box SoundTube Entertainment CM600i 6.5" Coaxial In-Ceiling Speaker (Black) Tile Bridge Paint Mask Conduit Plate Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM600i 6.5" Coaxial In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM600I Specs | Speaker Type | 6.5" (16.5 cm) coaxial, in-ceiling, ported (33 W transformer for 25,70.7,100 VDC or transformer bypass) | | Input Connector | 1 x 4-pin, 5.08 mm Euroblock | | Impedance | 8 Ω nominal | | Sensitivity | 88 dB @ 2.83 VDC/1 m
88 dB @ 1 W/1 m (1 W 1 m sensitivity determined using nominal impedance) | | Frequency Response | 69 Hz - 22 kHz @ -3 dB
52 Hz - 22 kHz @ -10 dB | | Max. Program Power | 180 W | | Max. Continuous Power RMS | 90 W | | Max. Power SPL | 107.5 dB @ 1 m (Based on maximum continuous power) | | Coverage Angle | 135° (-6 dB @ 2 kHz)
100° (-6 dB @ 10 kHz)
110° (averaged 2 - 10 kHz) | | Directivity Factor | 4 (averaged from 100 Hz - 10 kHz)
5.4 (2 kHz) | | Directivity Index | 5.6 (averaged 100 Hz - 10 kHz)
7.3 (2 kHz) | | Tap Selector | 1 x 6-Position rotary switch with transformer bypass | | Transducer | 6.5" (16.5 cm) Polypropylene cone, butyl rubber surround
1.0" (2.5 cm) Convex titanium tweeter with waveguide | | Voice Coil | Low Frequency: 1.0" (2.5 cm) | | Crossover Frequency | 3 kHz | | Network Type | Low and High Pass: 12 dB per octave, 2nd order | | Approvals | UL 2043 and 1480 (UEAY)
CE
RoHS | | Mounting Holes Diameter | 12.75" (32.39 m) | | Ceiling Thickness | 0.25 to 1.91" (0.64 to 4.85 cm) minimum to maximum | | Dimensions (Ø x H) | 11.68 x 7.94" (29.67 x 20.17 cm) | | Weight | 10.1 lb (4.6 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 16.0" |
