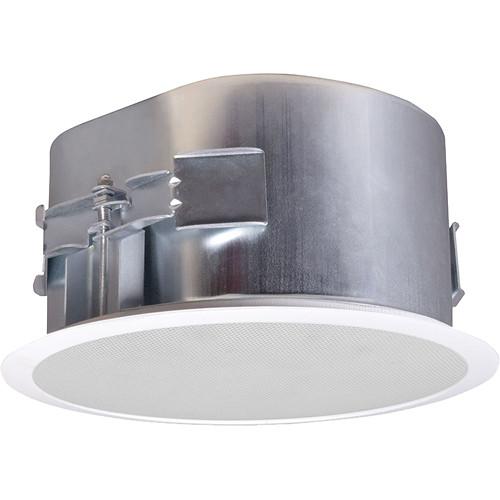

Product description The white CM62-EZ-II 6.5" Coaxial In-Ceiling Speaker from SoundTube Entertainment consists of a 6.5" woofer and a 1" silk dome tweeter. This 16 ohm speaker is designed for applications with limited plenum space, and was developed for paging and background music applications. The CM62-EZ-II incorporates a painted steel grille and has a ceramic input terminal. The in-ceiling speaker provides a six-position rotary switch with a transformer bypass position.
Engineered for rapid installation in plenum spaces, the CM62-EZ-II is designed to fit most industrial or commercial suspended ceilings. The speaker is also suitable for use in voice alarm applications. A tile bridge and mounting hardware are included. - One 6.5" woofer with cloth surround and one 1" silk dome tweeter
- 6-Position tap switch for 25/70.7/100V and 16Ω transformer bypass position to allow easy ordering, stocking, and installation
- 90dB sensitivity and 16Ω impedance for high efficiency
- Voice intelligibility with a 10 kHz coverage and 80° angle
- Incorporates a painted steel grille for increased durability
- 0.04 to 1.6" adaptable to material thickness
- UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
In the Box SoundTube Entertainment CM62-EZ-II 6.5" Coaxial In-Ceiling Speaker (White, 16Ω) Tile Bridge UL-Listed Flex Conduit Clamp Paint Shield Hole Template Wire Nuts Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM62-EZ-II 6.5" Coaxial In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM62-EZ-II Specs | System Type | 6.5" full-range, in-ceiling (32 W transformer for 25 / 70.7 / 100 V or transformer bypass position) | | Impedance | Nominal: 16 Ω Impedance listed per IEC 60268-5 with a minimum less than 80% the nominal impedance | | Sensitivity | 87 dB (dB @ 2.83 V/1 m)
90 dB (dB @ 1 W/1 m) at nominal impedance | | Frequency Response | 125 Hz to 20 kHz (-3 dB)
64 Hz to 2 kHz (-10 dB) Frequency response measured in half or full space as dictated by speaker mounting configuration | | Maximum Power | Program: 100 W at 3 dB above max continuous power
Continuous RMS: 50 W
SPL: 107 dB @ 3.3' (1 m) | | Coverage Angle | 135° (-6 dB @ 2 kHz)
120° (-6 dB @ 10 kHz)
80° (averaged from 2 to 10 kHz) | | Directivity | Factor: 5.1 (averaged 100 Hz - 10 kHz), 5 (2 kHz) (Q)
Index (DI): 6.2 dB (averaged 100 Hz - 10 kHz), 7 dB (2 kHz) | | Tap Selector | 6-position rotary switch or transformer bypass position | | Transducer | Low Frequency Driver: 6.5" (165 mm) treated fiber cone, cloth surround
High Frequency Driver: 1" (25 mm) silk dome tweeter | | Voice Coil | Low Frequency: 1" (25 mm) | | Crossover Frequency | 4 kHz | | Network Type | Low Pass: 12 dB/octave, 2nd order
High Pass: 6 dB/octave, 1st order | | Enclosure Material | ABS baffle, steel backcan, sealed | | Color | White | | Approvals | UL 1480 and 2043, CE, and RoHs approved | | Grille | Painted steel | | Input | 1 x 4-position ceramic terminal strip | | Dimensions | Backcan Diameter: 9.67" (245.6 mm)
Backcan Height: 5.75" (146 mm)
Visible Diameter: 11.75" (298.5 mm)
Visible Height: 0.34" (8.6 mm)
Mounting Hole Diameter: 10.5" (266.7 mm)
Max Ceiling Thickness: 1.6" (40.6 mm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 29.8 x 19.8 x 12.3" |
