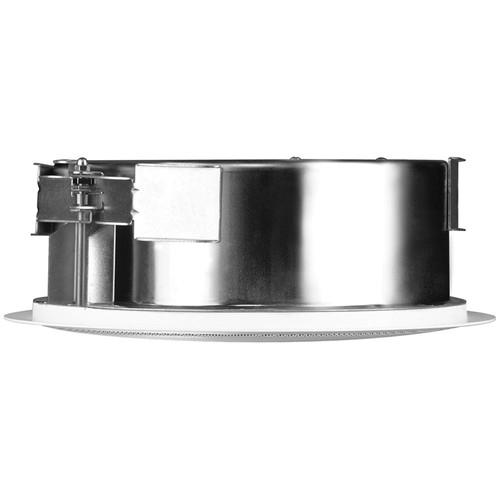

Product description The white CM62-EZs-II 6.5" Coaxial In-Ceiling Speaker from SoundTube is a two-way, blind mount speaker, which consists of a 6.5" woofer and a 1" silk dome tweeter. This 16Ω speaker is designed for applications with limited plenum space, and was developed for paging and background music applications. It incorporates a SoundTube-specific shallow backcan with a 3.5" installed depth. The in-ceiling speaker includes a six-position rotary switch with a transformer bypass position. It incorporates a painted steel grille and has a ceramic input terminal.
The CM62-EZs-II speaker is designed to fit most industrial or commercial suspended ceilings, and features a slim profile on surface mount. A tile bridge and mounting hardware are included and feature a fast and secure constant tension Speed Wing mounting system. This speaker can be used in voice alarm applications. - One 6.5" woofer with cloth surround and one 1" silk dome tweeter
- Incorporates a SoundTube-specific shallow backcan for applications with limited plenum space
- 6-Position tap switch for 25/70.7/100V and 16Ω transformer bypass position
- 90.5dB sensitivity and 16Ω impedance for high efficiency
- Voice intelligibility with a 10 kHz coverage and 80° angle
- Incorporates a painted steel grille for increased durability
- 0.04 to 1.6" adaptable to material thickness
- UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
In the Box SoundTube Entertainment CM62-EZs-II 6.5" Coaxial In-Ceiling Speaker (White) Tile Bridge UL Listed Flex Conduit Clamp Paint Shield Hole Template Wire Nuts Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM62-EZs-II 6.5" Coaxial In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM62-EZS-II Specs | System Type | 6.5" coaxial, in-ceiling, sealed (32 W transformer for 25 / 70.7 / 100 V or transformer bypass position) | | Impedance | Nominal: 16 Ω Impedance listed per IEC 60268-5 with a minimum less than 80% the nominal impedance | | Sensitivity | 87.5 dB (dB @ 2.83 V/1 m)
90.5 dB (dB @ 1 W/1 m) at nominal impedance | | Frequency Response | 135 Hz to 22 kHz (-3 dB)
75 Hz to 22 kHz (-10 dB) Frequency response measured in half or full space as dictated by speaker mounting configuration | | Maximum Power | Program: 100 W at 3 dB above max continuous power
Continuous RMS: 50 W
SPL: 107.5 dB @ 3.3' (1 m) | | Coverage Angle | 140° (-6 dB @ 2 kHz)
105° (-6 dB @ 10 kHz)
80° (averaged from 2 to 10 kHz) | | Directivity Factor | 5.1 (averaged 100 Hz to 10 kHz), 5.2 (2 kHz) | | Directivity Index | 6.2 dB (averaged 100 Hz to 10 kHz), 7.2 dB (2 kHz) | | Tap Selector | 6-position rotary switch with transformer bypass option | | Transducer | Low Frequency Driver: 6.5" (165 mm) treated fiber cone, cloth surround
High Frequency Driver: 1" (25.4 mm) silk dome tweeter | | Voice Coil Diameter | Low Frequency: 1" (25.4 mm) | | Crossover Frequency | 4 kHz | | Network Type | Low Pass: 12 dB/octave, 2nd order
High Pass: 6 dB/octave, 1st order | | Enclosure Material | ABS baffle, steel backcan, sealed | | Color | White | | Grille | Painted steel | | Approvals | UL 1480 (UEAY) and 2043, CE, RoHS approved | | Input | 4-position ceramic terminal strip | | Dimensions | Backcan Diameter: 9.67" (245.6 mm)
Backcan Height: 3.75" (95.3 mm)
Visible Diameter: 11.75" (298.5 mm)
Visible Height: 0.34" (8.6 mm)
Mounting Hole Diameter: 10.5" (266.7 mm)
Max Ceiling Thickness: 1.6" (40.6 mm) | | Weight | 7 lb (3.2 kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 13.0 x 13.0 x 6.0" |
