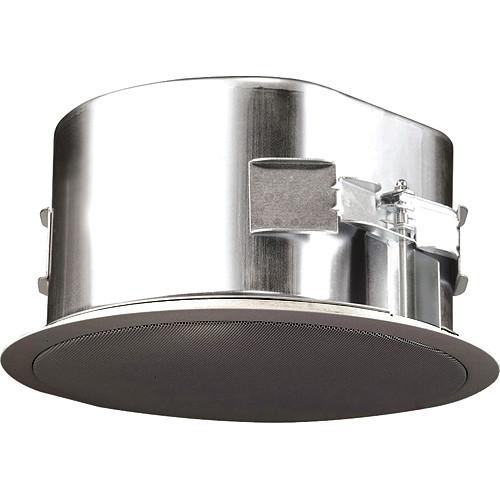

Product description The black CM62BGM 6.5" Coaxial In-Ceiling Speaker by SoundTube is a two-way blind-mount in-ceiling speaker which delivers true high efficiency and performance across the operating bandwidth. The speaker features BeamRing technology for mid-range clarity and smooth off axis performance.
Mounting hardware is included and features a fast and secure constant-tension, fixed-wing mounting system. - One 6.5" polypropylene woofer with rubber surround and one 1" silk dome tweeter
- BeamRing technology for mid-range clarity and smooth off axis performance
- Accessible six-position tap switch and transformer bypass settings
- Incorporates a painted steel grille forlasting durability
- High-quality black painted finish
In the Box SoundTube Entertainment CM62BGM 6.5" Coaxial In-Ceiling Speaker (Black) Tile bridge UL listed 0.5" conduit clamp Paint shield Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM62BGM 6.5" Coaxial In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM62-BGM Specs | Speaker Type | 6.5" (16.5 cm) coaxial, in-ceiling | | Transformer Isolation Voltage | 32 W for 25/70.7/100 V or transformer bypass | | Impedance | 16 Ω | | Sensitivity | 85 dB @ 2.83 V/1 m
88 dB @ 1 W/1 m | | Frequency Response | 80 Hz - 20 kHz @ -3 dB
60 Hz - 22 kHz @ -10 dB | | Max. Program Power | 100 W | | Max. Continuous Power RMS | 50 W | | Max. power SPL | 105 dB @ 1 m | | Coverage Angle | 180° (-6 dB @ 2 kHz)
40° (-6 dB @ 10 kHz)
80° (averaged 2-10 kHz) | | Directivity Factor | 5.1 (averaged 100 Hz - 10 kHz)
5.0 (2 kHz) | | Directivity Index | 6.2 dB (averaged 100 Hz - 10 kHz)
7.0 dB (2 kHz) | | Tap Selector | Six-position rotary switch with transformer bypass position | | Transducer | Low-Frequency Driver: 6.5" (165 mm) Polypropylene cone, rubber surround
High Frequency Driver: 1" (25 mm) Silk dome tweeter | | Voice Coil | 1" (25.4 mm) | | Crossover Frequency | 4 kHz | | Network Type | Low Pass: 12 dB per octave, 2nd order
High Pass: 6 dB per octave, 1st order | | Inputs | Ceramic terminal connector | | Mounting Holes Diameter | 10.5" (266.7 mm) | | Ceiling Thickness | 0.035 to 1.6" (0.9 to 40.6 mm) minimum to maximum | | Color | Black | | Regulatory | UL 1480 and 2043 pending
CE Approved | | RoHS | Approved | | Dimensions (Ø x D) | 5.75 x 9.67" (146.1 x 245.6 mm) | | Weight | 8 lbs (3.6 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 13.0 x 13.0 x 8.0" |
