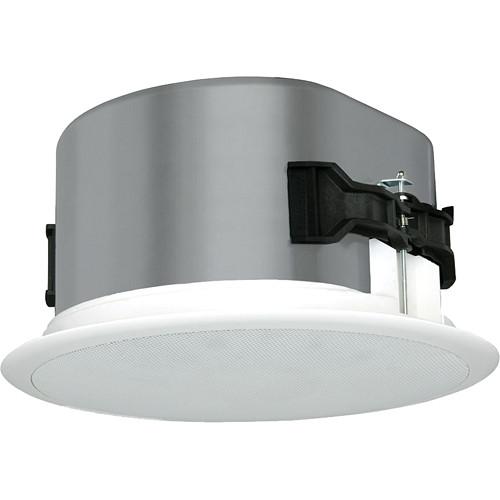

User Manual for SoundTube Entertainment CM800I 8" Coaxial In-Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment CM800I 8" Coaxial In-Ceiling
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment CM800I 8" Coaxial In-Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The whiteCM800I 8" Coaxial In-Ceiling Speaker by SoundTube is a two-way, blind-mount, in-ceiling speaker design that delivers extended low ended response and optimal off-axis performance. SoundTube's propriety BroadBeam waveguide tweeter system delivers consistent high performance audio across the operating bandwidth. Mounting hardware is included and features a fast and secure constant-tension, fixed-wing mounting system. - One 8" polypropylene woofer and one 1" convex titanium tweeter
- Patented BroadBeam waveguide technology delivers a consistent BroadBeam dispersion pattern for maximum coverage area per speaker
- Accessible six-position tap switch for 25/70.7/100 V applications and transformer bypass position
- Incorporates a steel grille with protective powder coated finish for lasting durability
In the Box SoundTube Entertainment CM800I 8" Coaxial In-Ceiling Speaker (White) Tile bridge Conduit plate, Euroblock connector Paint mask Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM800I 8" Coaxial In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM800I Specs | Speaker Type | 8" coaxial, in-ceiling | | Transformer Isolation Voltage | 66 W for 25/70.7/100 V or transformer bypass | | Nominal Impedance | 8 Ω | | Sensitivity | 90 dB @ 2.83 V/1 m
90 dB @ 1 W/1 m (sensitivity determined using nominal impedance) | | Frequency Response | 97 Hz - 22 kHz @ -3 dB
71 Hz - 22 kHz @ -10 dB (Measured in half or full space as dictated by speaker mounting configuration) | | Max. Program Power | 250 W (Max program power is 3 dB above max continuous power) | | Max. Continuous Power RMS | 125 W (Continuous power rating, EIA-426-B test) | | Max. power SPL | 111 dB @ 1 m (Based on maximum continuous power) | | Coverage Angle | 140º (-6 dB @ 2 kHz)
110º (-6 dB @ 10 kHz)
120º (averaged 2-10 kHz) | | Directivity Factor | 3.8 (averaged 100 Hz - 10 kHz)
4 (2 kHz) | | Directivity Index | 6 dB (averaged 100 Hz - 10 kHz)
4 dB (2 kHz) | | Tap Selector | 6-position rotary switch with transformer bypass position | | Transducer | Low-Frequency Driver: 8" (203 mm) Polypropylene cone, butyl rubber surround
High-Frequency Driver: 1" (25 mm) Silk dome tweeter | | Voice Coil | Low-Frequency: 1.2" (30.4 mm) | | Crossover Frequency | 3 kHz | | Network Type | Low and High Pass 12 dB per octave, 2nd order | | Enclosure Material | Drawn aluminium backcan with ABS baffle | | Inputs | 1 x 4-pin, 0.2" (5.08 mm) Euroblock | | Color | White | | Mounting Holes Diameter | 12.75" (323.9 mm) | | Ceiling Thickness | 0.25 to 1.91" (6.4 to 48.5 mm) Minimum to Maximum | | Regulatory | UL 1480 and 2043 pending,
CE Approved | | RoHS | Approved | | Dimensions (Ø x D) | 11.68 x 7.94" (296.7 x 201.7 mm) | | Weight | 12.5 lb (5.7 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 16.0" |
