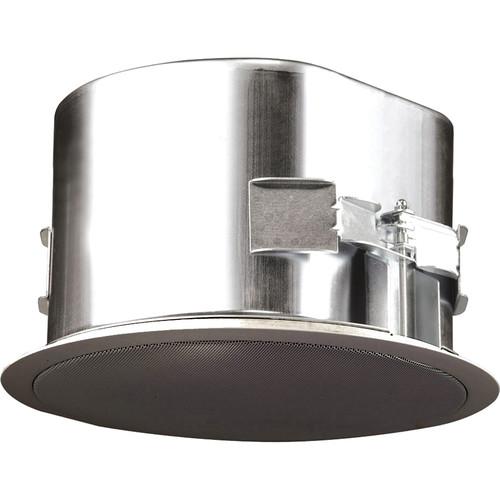

Product description The black CM82-BGM 8" In-Ceiling Speaker from SoundTube is an 8" coaxial two-way, blind-mount in-ceiling speaker designed for paging and background music. This blind-mount in-ceiling speaker features mounting hardware and a tension fixed-wing mounting system with a 21-gauge metal steel tile bridge that can be installed into sheetrock or drop-tile. Included with this product is a tile bridge, paint shield, and UL listed 0.5" flex conduit clamp. - One 8" polypropylene woofer with butyl rubber surround and one 1" silk dome tweeter
- BeamRing technology for mid-range clarity and wide off axis performance
- Accessible six-position tap switch for 25/70.7/100V and transformer bypass position
- Tuned port on baffle for added musicality and bass response
- Incorporates a painted steel grille for durability
In the Box SoundTube Entertainment CM82-BGM 8" In-Ceiling Speaker (Black) Tile Bridge Paint Shield UL Listed 0.5" Flex Conduit Clamp Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM82-BGM 8" In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM82-BGM Specs | Speaker Type | 8" coaxial, in-ceiling | | Transformer Isolation Voltage | 64 W for 25/70.7/100 V or transformer bypass | | Impedance | 16 Ω nominal (Impedance listed per IEC 60268-5) | | Sensitivity | 86 dB @ 2.83 V/1 m
89 dB @ 1 W/1 m (1 W 1 m sensitivity determined using nominal impedance) | | Frequency Response | 70 Hz - 18 kHz @ -3 dB
55 Hz - 22 kHz @ -10 dB (Frequency response measured in half or full space as dictated by speaker mounting configuration) | | Max. Program Power | 128 W (Max program power is 3 dB above max continuous power) | | Max. Continuous Power RMS | 64 W (Continuous power rating, EIA-426-B test) | | Max. power SPL | 107 dB @ 1 m 6 (Max output based on max continuous power) | | Coverage Angle | 105º (-6 dB @ 2 kHz)
40º (-6 dB @ 10 kHz)
95º (averaged 2 - 10 kHz) | | Directivity Factor | 5.4 (averaged 100 Hz - 10 kHz)
7.2 (2 kHz) | | Directivity Index | 5.5 dB (averaged 100 Hz - 10 kHz)
8.6 dB (2 kHz) | | Tap Selector | 6-position rotary switch with transformer bypass position | | Transducer | Low-Frequency Driver: 8" (203 mm) Polypropylene cone, butyl rubber surround
High-Frequency Driver: 1" (25 mm) Silk dome tweeter | | Voice Coil | Low-Frequency: 1" (25.4 mm) | | Crossover Frequency | 3 kHz | | Network Type | Low and High Pass 12 dB per octave, 2nd order | | Enclosure Material | Drawn steel backcan with ABS baffle | | Inputs | Ceramic terminal connector | | Mounting Holes Diameter | 10.5" (266.7 mm) | | Ceiling Thickness | Min to Max 0.035" to 1.6" (0.9 mm to 40.6 mm) | | Approvals | UL 1480 and 2043 pending, CE Approved | | RoHS | Approved | | Dimensions (Ø x D) | 9.67 x 8" (245.6 x 203.2 mm) | | Weight | 9 lb (4.1 kg) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 14.0 x 13.0 x 11.0" |
