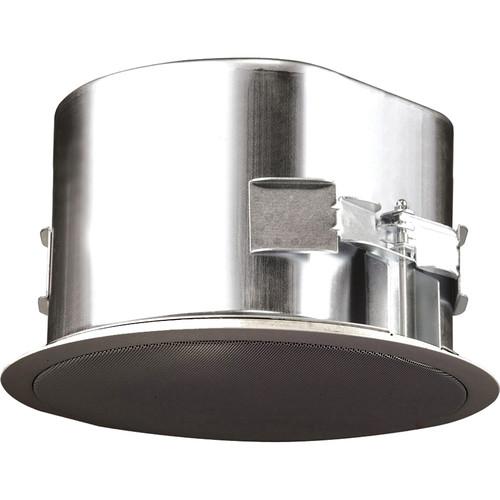

Product description The black CM82-EZ-FS 8" Coaxial In-Ceiling Fire Signalling Speaker from SoundTube Entertainment is a two-way, blind mount speaker specifically designed for use in fire signaling systems. This 16 ohm speaker consists of an 8" woofer and a 1" silk dome tweeter. The CM62-EZ-II incorporates a painted steel grille and has a ceramic input terminal. The in-ceiling speaker includes a five-position rotary switch with a 16Ω transformer bypass position. A tile bridge and mounting hardware are included.
The CM82-EZ-FS is designed to fit most industrial or commercial suspended ceilings, and can be used for paging and background music applications. - One 8" woofer with butyl rubber surround and one 1" silk dome tweeter
- 5-Position tap switch for 25/70.7/100V to allow easy ordering, stocking, and installation
- 89dB sensitivity, 16Ω impedance, and sealed enclosure for high efficiency
- Voice intelligibility with a 10 kHz coverage and 95° angle
- Incorporates a painted steel grille with a rust inhibitor for increased durability
- 0.04 to 1.6" adaptable to material thickness
- UL 1480 (UUMW) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
In the Box SoundTube Entertainment CM82-EZ-FS 8" Coaxial In-Ceiling Fire Signalling Speaker (Black) Tile Bridge UL Listed 0.5" Conduit Clamp Paint Shield Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM82-EZ-FS 8" Coaxial In-Ceiling Fire Signalling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM82-EZ-FS Specs | System Type | 8" coaxial, in-ceiling, sealed (10 W transformer for 25 / 70.7 / 100V applications) | | Impedance | Nominal:16 Ω Impedance listed per IEC 60268-5 with a minimum less than 80% the nominal impedance | | Sensitivity | 86 dB (dB @ 2.83 V/1 m)
89 dB (dB @ 1 W/1 m) at nominal impedance | | Frequency Response | 92 Hz to 18 kHz (-3 dB)
65 Hz to 22 kHz (-10 dB) Frequency response measured in half or full space as dictated by speaker mounting configuration | | Maximum Power | Program: 128 W at 3 dB above max continuous power
Continuous Power RMS: 64 W
SPL: 99 dB @ 3.3' (1 m) | | Coverage Angle | 105° (-6 dB @ 2 kHz)
40° (-6 dB @ 10 kHz)
95° (averaged from 2 to 10 kHz) | | Directivity Factor | 5.4 (averaged 100 Hz - 10 kHz), 7.2 (2 kHz) (Q)
Index (DI): 5.5 dB (averaged 100 Hz - 10 kHz), 8.6 dB (2 kHz) | | Tap Selector | 5-position rotary switch | | Transducer | Low Frequency Driver: 8" (203 mm) polypropylene cone, butyl rubber surround
High Frequency Driver: 1" (25.4 mm) silk dome tweeter | | Voice Coil Diameter | 1" (25 mm) | | Crossover Frequency | 3 kHz | | Network Type | Low Pass: 6 dB/octave, 1st order
High Pass: 6 dB/octave, 1st order | | Enclosure Material | ABS baffle, steel backcan, sealed | | Color | Black | | Approvals | UL 1480 and 2043, CE, and RoHs approved | | Grille | Painted steel | | Input Connector | 1 x 4-position ceramic terminal strip | | Dimensions | Backcan Diameter: 9.67" (245.6 mm)
Backcan Height: 5.75" (146 mm)
Visible Diameter: 11.75" (298.5 mm)
Visible Height: 0.34" (8.6 mm)
Mounting Hole Diameter: 10.5" (266.7 mm)
Max Ceiling Thickness: 1.6" (40.6 mm) | | Weight | 9 lb (4.1 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 13.0 x 13.0 x 8.0" |
