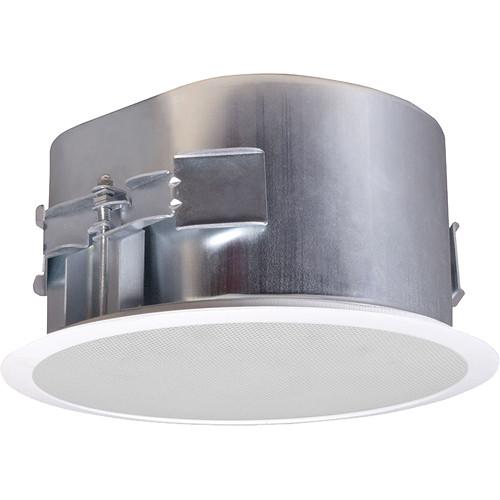

User Manual for SoundTube Entertainment CM82-EZ-II-WH 8" Coaxial 2-Way In-Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment CM82-EZ-II-WH 8" Coaxial 2-Way
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment CM82-EZ-II-WH 8" Coaxial 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The white CM82-EZ-II-WH 8" Coaxial 2-Way In-Ceiling Speaker from SoundTube Entertainment incorporates an 8" polypropylene driver with a butyl rubber surround in a sealed drawn steel back can. This speaker delivers a high-quality response from a frequency range of 65 Hz to 22 kHz, -10 dB.
The CM82-EZ-II-WH Speaker features a constant-tension, fixed-wing mounting system with a 21-gauge steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. It also features 6-position tap switch for 25, 70.7, and 100V applications with transformer bypass position. The speaker is developed specifically for paging and background music applications such as hotels, education, healthcare, retail stores, restaurants, airports, churches, or boardrooms. - 8" polypropylene woofer with butyl rubber surround and one 1" silk dome tweeter
- Easy-access, 6-position tap switch for 25/70.7/100V and 16Ω transformer bypass settings
- Maximum sensitivity of 89 dB
- Integrated sealed enclosure
- Color-coded (green) tile bridge
- Optimum voice intelligibility with an average coverage angle of 95° (2 to 10 kHz, independently verified)
- 16Ω settings allows for the use of 2, 4, or 6 speakers in a system using a standard amplifier without a transformer 1
Please Note: Additional speakers sold separately close - Incorporates a painted steel grille with rust inhibitor for durability
- Can be installed on ceilings with thickness ranging from 0.04 to 1.60"
- UL 1480 (UEAY), 2043, cUL, and CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
In the Box SoundTube Entertainment CM82-EZ-II-WH 8" Coaxial 2-Way In-Ceiling Speaker (White) Tile Bridge UL-Listed Flex Conduit Clamp Paint Shield Cutout Template 2 x Wire Nut Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM82-EZ-II-WH 8" Coaxial 2-Way In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM82-EZ-II Specs | System Type | 8" coaxial, in-ceiling, sealed (64 W transformer for 25/70.7/100 V or transformer bypass) | | Impedance (nominal) 1 | 16 Ω Impedance listed per IEC 60268-5 | | Sensitivity | 2.83 V/m: 86 dB
1 W/m: 89 dB 1 W/m sensitivity determined using nominal impedance | | Frequency Response (- 3 dB) 3 | 92 Hz to 18 kHz | | Frequency Response (-10 dB) 3 | 65 Hz to 22 kHz Frequency response measured in half or full space as dictated by speaker mounting configuration | | Power Consumption (max) | Program Power: 128 W
Continuous Power RMS 5: 64 W Maximum program power is 3 dB above maximum continuous power. Continuous power rating, EIA-426-B test. Maximum output based on maximum continuous power. | | Max. Power SPL @ 1 m 6 | 107 dB | | Coverage Angle | -6 dB @ 2 kHz: 125°
-6 dB @ 10 kHz: 75°
Ave from 2 to 10 kHz: 125° | | Directivity Factor | 5.4 (averaged 100 Hz to 10 kHz) ; 7.2 (2 kHz) | | Directivity Index | 5.5 dB (averaged 100 Hz to 10 kHz) ; 8.6 dB (2 kHz) | | Tap Selector | 6-position rotary switch with transformer bypass position | | Low Frequency Driver | 8" (203 mm) polypropylene cone, butyl rubber surround | | High Frequency Driver | 1.0" (2.5 cm) silk dome tweeter (transducer) | | Low Frequency Voice Coil | 1.0" (2.5 cm) | | Crossover Frequency | 3.0 kHz | | Network Type | Low Pass: 6 dB per octave, 1st order
High Pass: 6 dB per octave, 1st order | | Enclosure Material | Drawn steel back can with ABS baffle | | Grille Material | Steel with painted finish | | Inputs | 4 position ceramic terminal strip | | Transformer Taps | 70.7 V Output: 64 W (107 dB), 32 W (104 dB), 16 W (101 dB), 8 W (98 dB), and 4 W (95 dB)
100 V Output: 64 W (107 dB), 32 W (104 dB), 16 W (101 dB), and 8 W (98 dB)
25 V Output: 8 W (98 dB), 4 W (95 dB), 2 W (92 dB), 1 W (89 dB), and 0.5 W (86 dB) | | Approvals | UL, CE, and RoHS | | Dimensions (H x W x D) | Visible Diameter: 11.7" (29.8 cm)
Visible Height: 0.3" (8.6 mm)
Mounting Hole Diameter: 10.5" (26.7 cm)
Minimum to Maximum Ceiling Thickness: 0.04" (0.9 mm) to 1.6" (4.1 cm) | | Weight | 9.0 lb (4.1 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 8.0" |
