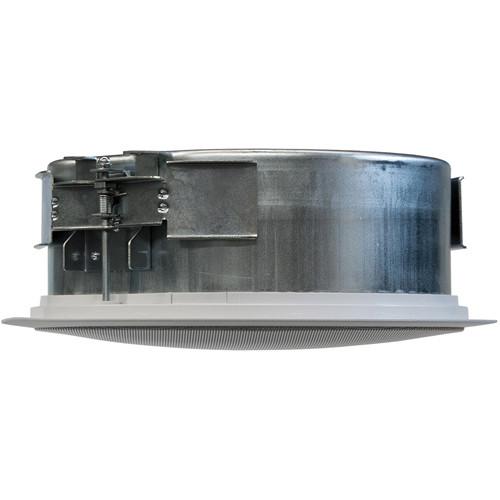

Product description The black CM82-EZS-II-BK 8" Coaxial Shallow Backcan In-Ceiling Speaker from SoundTube Entertainment incorporates an 8" polypropylene driver with a butyl rubber surround in a sealed drawn steel backcan. This speaker delivers a high-quality response from a frequency range of 65 Hz to 22 kHz, -10 dB. Engineered for applications with limited plenum space, this speaker features a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. The CM82-EZS-II-BK Speaker features a constant-tension, fixed-wing mounting system with a 21-gauge steel tile bridge ensuring rapid and secure installation in any sheet-rock or drop-tile application. It also features 6-position tap switch for 25, 70.7, and 100V applications with transformer bypass position. The speaker is developed specifically for paging and background music applications such as hotels, education, healthcare, retail stores, restaurants, airports, churches, or boardrooms. - Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5"
- 8" polypropylene woofer with butyl rubber surround and one 1" silk dome tweeter
- Easy-access, 6-position tap switch for 25/70.7/100V and 16 ohms; transformer bypass settings
- 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer
- Maximum sensitivity of 88 dB
- Integrated sealed enclosure
- Optimum voice intelligibility with an average coverage angle of 105° (2 to 10 kHz, independently verified)
- Incorporates a painted steel grille with rust inhibitor for durability
- Can be installed on ceilings with thickness ranging from 0.04 to 1.60"
- UL 1480 (UEAY), 2043, cUL, and CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
In the Box SoundTube Entertainment CM82-EZS-II-BK 8" Coaxial In-Ceiling Shallow Backcan Speaker (Black) Tile Bridge UL-Listed 0.5" Conduit Clamp Paint Shield 2 x Wire Nut Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment CM82-EZS-II-BK 8" Coaxial In-Ceiling Shallow Backcan Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment CM82-EZS-II Specs | System Type | 8" coaxial, in-ceiling, sealed (64 W transformer for 25/70.7/100 V or transformer bypass) | | Impedance | 16 ohms (nominal) Impedance listed per IEC 60268-5 | | Tweeter | 1.0" (2.5 cm) silk | | Woofer | 6.5" (16.5 cm) treated fiber | | Sensitivity | 2.83 V/m: 85 dB
1 W/m: 88 dB 1 W/m sensitivity determined using nominal impedance | | Frequency Response | -3 dB: 109 Hz to 18 kHz
-10 dB: 82 Hz to 22 kHz Frequency response measured in half or full space as dictated by speaker mounting configuration | | Power Consumption | Program Power: 128 W
Continuous Power RMS: 64 W Maximum program power is 3 dB above maximum continuous power. Continuous power rating, EIA-426-B test. Maximum output based on maximum continuous power. | | SPL | Maximum 106 dB @ 3' (1 m) Maximum usable SPL based on testing by NWAA Labs | | Coverage Angle | -6 dB @ 2 kHz: 105°
-6 dB @ 10 kHz: 35°
Average from 2 to 10 kHz: 105° | | Directivity Factor | 5.2 (averaged 100 Hz to 10 kHz); 6.8 (2 kHz) | | Directivity Index | 5.5 dB (averaged 100 Hz to 10 kHz); 8.3 dB (2 kHz) | | Tap Selector | 6-position rotary switch with transformer bypass position | | Low Frequency Driver | 8" (203 mm) polypropylene cone, butyl rubber surround (transducer) | | High Frequency Driver | 1.0" (2.5 cm) silk dome tweeter (transducer) | | Low Frequency Voice Coil | 1.0" (2.5 cm) | | Crossover Frequency | 3.0 kHz | | Network Type | Low Pass: 6 dB per octave, 1st order
High Pass: 6 dB per octave, 1st order | | Enclosure Material | Drawn steel backcan with ABS baffle | | Grille Material | Steel with painted finish | | Inputs | 4 position ceramic terminal strip | | Transformer Taps | At 70.7 V, output: 64 W (106 dB), 32 W (103 dB), 16 W (100 dB), 8 W (97 dB), and 4 W (94 dB)
At 100 V, output: 64 W (106 dB), 32 W (103 dB), 16 W (100 dB), and 8 W (97 dB)
25 V Output: 8 W (97 dB), 4 W (94 dB), 2 W (91 dB), 1 W (88 dB), and 0.5 W (85 dB) | | Approvals | UL (UL 1480 (UEAY) and 2043 approved), CE, and RoHS | | Dimensions | Backcan Diameter: 9.7" (24.6 cm)
Backcan Height: 3.8" (9.5 cm)
Visible Diameter: 11.8" (29.9 cm)
Visible Height: 0.3" (8.6 mm)
Mounting Hole Diameter: 10.5" (26.7 cm)
Minimum to Maximum Ceiling Thickness: 0.04" (0.9 mm) to 1.6" (4.1 cm) | | Weight | 7.0 lb (3.2 kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 13.0 x 13.0 x 6.0" |
