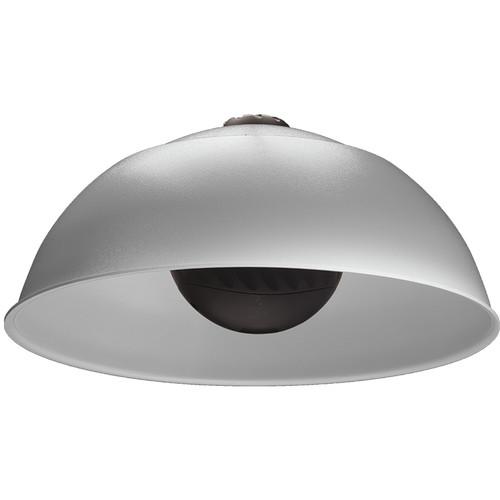

User Manual for SoundTube Entertainment FP6020-II-WH Sound-Focusing Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment FP6020-II-WH Sound-Focusing Speaker
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment FP6020-II-WH Sound-Focusing Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The FP6020-II-WH Sound-Focusing Speaker from SoundTube Entertainment features patented Dual-Parabolic dispersion control technology that provides a targeted audio footprint with true stereo separation. It features twin 1” concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging. The ZeroReflection enclosure technology allows for accurate sound reproduction, and the speaker offers a coverage angle of 30° for sharp focus. The sound focusing speaker comes with a 20.25" custom-molded PETG white polymer dome for minimal visual impact and a user-selectable 350 Hz high-pass filter. The transducers have a concave aluminum diaphragm with high-impact polystyrene transducer protectors. The single-point balanced mounting provides easy and clean-looking installations. It also includes a hanging bracket, mounting bushing, and a 15' hanging cable including four 16-gauge inputs, and a CAT5 cable. SoundTube-engineered modular options (sold separately) enhance and expand the speaker's performance characteristics and applications. These modules include motion sensor (FP-Motion), LED light (FP-Light), amplification (FP-Amp), and FP-ScentAir. Note: A 15V, 5A or 15V, 3A power supply (AC-PS-1550 or AC-PS-1530) is required for optional modules. A single AC-PS-1550 or AC-PS-1530 powers 1 or any combination of modules. - Patented Dual-Parabolic Technology
- By incorporating the Dual-Parabolic dome technology, this sound-focusing speaker provides a targeted hot-spot with definitive stereo separation. With sound waves projected into the dome, SoundTube's proprietary technology reflects sound waves from the mid and upper registers of the frequency spectrum directly beneath the dome.
- Applications
- High-definition music and messaging with tight coverage, full-range stereo sound (130 Hz to 22 kHz, -10 dB) and true audio containment (45° averaged, 2 to 10 kHz) make the FP6020-II Speaker a suitable choice for focused audio applications including kiosks, P.O.P. displays, trade shows, digital signage, or anywhere contained high-fidelity stereo or mono sound is required but visual impact must be minimized.
In the Box SoundTube Entertainment FP6020-II-WH Sound-Focusing Speaker (White Dome) Hanging Hardware Mounting Bushing 15' Hardwire Lead (Hanging Cable) CAT5 Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment FP6020-II-WH Sound-Focusing Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment FP6020-II-WH Specs | System Type | 2 x 25 mm stereo or mono high-directivity (8 Ohms stereo, 4 Ohms mono). Transformer for distributed systems (25 / 70.7 / 100 V) (sold separately) | | Impedance | Nominal: 8 Ohms stereo, 4 Ohms mono Impedance listed per IEC 60268-5 with a minimum less than 80% the nominal impedance | | Sensitivity | 75 dB (dB @ 2.83 V/1 m)
75 dB (dB @ 1 W/1 m) 1 W/1 m sensitivity determined using nominal impedance | | Frequency Response | 170 Hz to 22 kHz (300 Hz with high-pass filter) (-3 dB)
130 Hz to 22 kHz (200 Hz with high-pass filter) (-10 dB) Frequency response measured in half or full space as dictated by speaker mounting con
