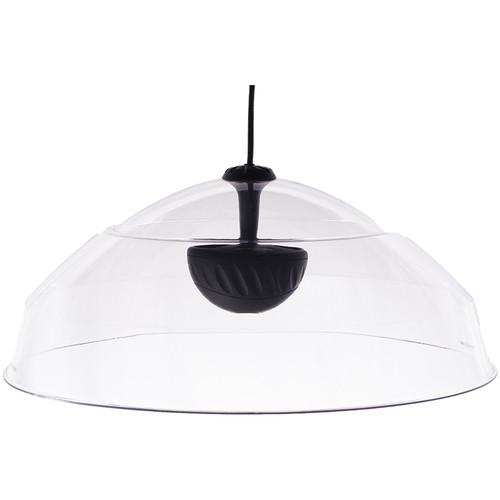

User Manual for SoundTube Entertainment FP6030-II 30" Dome and Dual Parabolic Replacement Speaker Kit Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment FP6030-II 30" Dome and
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment FP6030-II 30" Dome and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The SoundTube Entertainment FP6030-II 30" Dome and Dual Parabolic Replacement Speaker Kit from B&H includes a SoundTube FP6030-II-Pod sound-focusing speaker and a FP6030DOME replacement dome for the sound-focusing speaker. It can be used to deliver targeted audio by incorporating two full-range, 1" concave aluminum domes with a patented 30" Dual-Parabolic sound dome. This kit can be wired in either 8-Ohm stereo or 4-Ohm mono with an optional 25/70.7/100V transformer (sold separately). - SoundTube Entertainment FP6030-II-POD - Replacement Sound-Focusing Speaker The SoundTube Entertainment FP6030-II-POD is a replacement loudspeaker for the FP6030-II Sound-Focusing Speaker. When combined with the separate dome, utilizes a patented Dual-Parabolic dispersion control technology that provides a targeted audio footprint with true stereo separation. The POD features twin 1" concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging. The ZeroReflection enclosure technology allows for accurate sound reproduction, and the speaker offers a coverage angle of 45° for sharp focus. The transducers have a concave aluminum diaphragm with high-impact polystyrene transducer protectors. Note: The POD is an individual speaker replacement. This is the POD only and does not include the parabolic dome, or mounting hardware
- SoundTube Entertainment FP6030DOME Replacement Dome for Sound-Focusing Speaker The SoundTube Entertainment FP6030DOME is a replacement dome for the FP6030-II Sound-Focusing Speaker. When combined with the POD speaker, utilizes patented Dual-Parabolic dispersion control technology that provides a targeted audio footprint with true stereo separation. The 30.75" custom-molded PETG polymer dome provides minimal visual impact and produces a 45° coverage angle. Note: The DOME is a replacement unit and does not contain the speaker POD or mounting hardware.
In the Box - FP6030-II-POD - Replacement Sound-Focusing Speaker
- Limited 5-Year Warranty
- FP6030DOME Replacement Dome for Sound-Focusing Speaker
Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment FP6030-II 30" Dome and Dual Parabolic Replacement Speaker Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SoundTube Entertainment FP6030-II-POD - Replacement Sound-Focusing Speaker
| System Type | 2 x 1.0" / 25.0 mm Stereo or Mono High-Directivity (8 Ohms Stereo, 4 Ohms Mono). Transformer for Distributed Systems (25 / 70.7 / 100 V) (Sold Separately) | | Impedance | Nominal: 8 Ohms Stereo, 4 Ohms Mono | | Sensitivity | 75 dB (dB @ 2.83 V/1 m)
75 dB (dB @ 1 W/1 m) | | Frequency Response | 170 Hz to 22 kHz (300 Hz with High-Pass Filter) (-3 dB)
130 Hz to 22 kHz (200 Hz with High-Pass Filter) (-10 dB) | | Power | Maximum Program: 30 W
Maximum Continuous: 15 W RMS
Maximum SPL: 87 dB @ 3.3' / 1.0 m | | Coverage Angle | 45° | | Directivity | Factor: 23.4 (Averaged 100 Hz to 10 kHz), 27.5 (2 kHz) (Q)
Index (DI) dB: 12.4 (Averaged 100 Hz to 10 kHz), 14.4 (2 kHz) | | Transducer | Twin 1.0" / 25.0 mm Full-Range Aluminum Concave | | Frequency | Low-Voice Coil: 0.81" / 20.50 mm | | Filter | High Pass: 75 or 350 Hz Switchable | | Network Type | High Pass: 6 dB per Octave, 1st Order | | Material | Grille and Enclosure Material: High-Impact Polystyrene | | Input | 4-Conductor 16-Gauge Hardwire Leads | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 14.2 x 10.0 x 7.0" | - SoundTube Entertainment FP6030DOME Replacement Dome for Sound-Focusing Speaker
| Coverage Angle | 45° | | Material | Dome: PETG | | Dimensions | Dome Diameter: 30.8" / 78.1 cm | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 30.5 x 30.5 x 16.0" |
