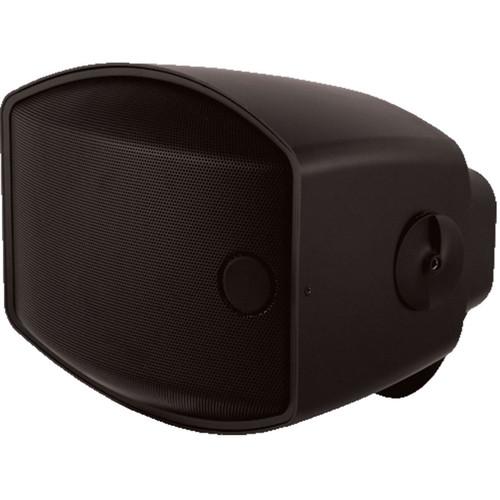

User Manual for SoundTube Entertainment IPD-SM500I-II-BK 5.25" Coax Surface Mount Dante IP Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment IPD-SM500I-II-BK 5.25" Coax Surface
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment IPD-SM500I-II-BK 5.25" Coax Surface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description Provided by third party: Dante-addressable surface-mount speaker incorporating one 5.25-inch polypropylene woofer and one 1.0-inch convex titanium tweeter with BroadBeam waveguide in an injection-molded, glass fiber reinforced ABS enclosure. Low latency digital audio, power, and control are delivered to the speaker via standard category cable. Mounting hardware for the IPD-SM500i-II is included and features SoundTube's proprietary Stealth bracket mounting system, providing unlimited directional aiming and a low profile, with a security knob to reduce tampering after placement. The system includes a detachable mounting plate designed for pre-mounting in either wall or pole applications.
- Key Features
-
- IP addressable, self-powered (PoE) speaker
- Dante I/O for interconnectivity with Dante-enabled audio systems
- BroadBeam waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker
- One 5.25-inch polypropylene woofer and one 1.0-inch convex titanium tweeter with FerroFluid cooling
- Fast connection of power, audio and control functions via one CAT5 or CAT6 cable
- Aluminum grille with powder-coat finish
- Includes Stealth bracket mounting system
- Low-profile enclosure design keeps the speaker close to the wall
UPC: 748252172785 Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment IPD-SM500I-II-BK 5.25" Coax Surface Mount Dante IP Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment IPD-SM500I-II-BK Specs | | | Product Type | IP speaker - for PA system | | Enclosure Color | Black | | Enclosure Material | Reinforced ABS polymer | | | | Speaker Type | 2-way - active | | Nominal Output Power | 40 Watt | | Frequency Response | 86 - 22000 Hz | | Output Level (SPL) | 102 dB | | Crossover Frequency | 3000Hz | | Amplifier | Integrated | | Interfaces | IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus) | | Recommended Placing | Indoor / outdoor, surface mountable | | | | Driver Details | Speaker: tweeter driver - 1" - titanium - Ferro-fluid cooled
Speaker: woofer driver - 5.25" - polypropylene | | | | Connector Type | LAN/power (RJ-45) | | | | Included Accessories | Mounting hardware, safety cable | | Compliant Standards | UL 1480A | | | | Power Source | AC power adapter, Power over Ethernet (PoE) | | | | Width | 8.4 in | | Depth | 10.5 in | | Height | 11.4 in | | Weight | 9.48 lbs | | | | Shipping Weight | 11.02 lbs | | | | Service & Support | Limited warranty - 5 years | | | | Package Weight | 9.35 lb | | Box Dimensions (LxWxH) | 14.0 x 12.2 x 10.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
