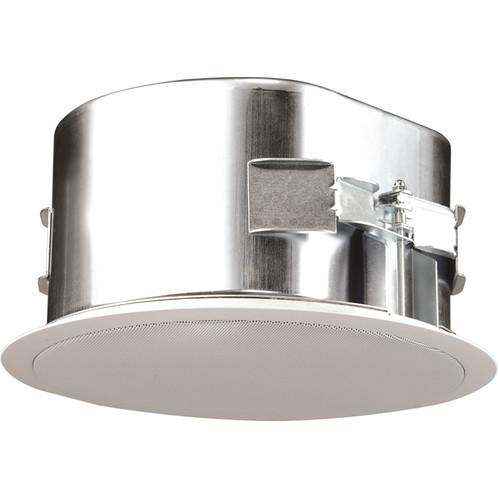

User Manual for SoundTube Entertainment IPD4-CM52-BGM-WH 5.25" Coax In-Ceiling Dante IP Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment IPD4-CM52-BGM-WH 5.25" Coax In-Ceiling
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment IPD4-CM52-BGM-WH 5.25" Coax In-Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description Provided by third party: Offering an economical option for expansion of audio coverage in a digital speaker system, this Dante addressable coaxial in-ceiling speaker has output terminals for connection and power of up to three additional standard CM52-BGM speakers. The speaker incorporates one polypropylene woofer with rubber surround and one silk dome tweeter. BroadBeam Ring technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet switch or other PoE/PoE+ switch. May also be powered via a 24 V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. When combined with standard speakers, the four-speaker cluster can be split and configured to handle two separate channels of audio.
Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment IPD4-CM52-BGM-WH 5.25" Coax In-Ceiling Dante IP Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment IPD4-CM52-BGM-WH Specs | | | Product Type | IP speaker - for PA system | | Enclosure Color | White | | Enclosure Material | Galvanized steel, ABS plastic | | | | Speaker Type | 2-way - active | | Nominal Output Power | 40 Watt | | Frequency Response | 90 - 20000 Hz | | Output Level (SPL) | 93 dB | | Crossover Frequency | 4000Hz | | Bi-Amping | Yes | | Amplifier | Integrated | | Interfaces | IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus) | | Recommended Placing | In-ceiling mounted | | Detachable Grilles | Yes | | | | Driver Details | Speaker: tweeter driver - 0.75" - silk
Speaker: woofer driver - 5.25" - polypropylene | | | | Connector Type | LAN/power (RJ-45) | | | | Included Accessories | Mounting hardware | | Compliant Standards | UL 2043, UL 60065 | | | | Power Source | AC power adapter, Power over Ethernet (PoE) | | | | Diameter | 11.8 in | | Weight | 7.94 lbs | | | | Diameter | 9.7 in | | Height | 5.8 in | | | | Service & Support | Limited warranty - 5 years |
