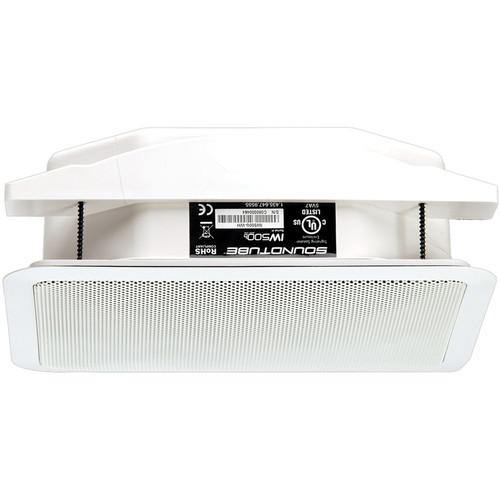

User Manual for SoundTube Entertainment IW500B 5.25" In-Wall Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment IW500B 5.25" In-Wall Speaker
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment IW500B 5.25" In-Wall Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The white IW500B 5.25" In-Wall Speaker from SoundTube Entertainment delivers effective low-end response (69Hz, -10dB) and optimal off-axis performance (up to 10kHz, EASE documented). Thanks to the SoundTube’s proprietary BroadBeam waveguide tweeter, the speaker delivers consistent high-performance audio across the operating bandwidth.
The speaker design incorporates a low-profile grille and a 6-position tap switch with an 8Ω bypass. This included mounting hardware features a fast and secure optimally engineered constant-tension mounting system and an integrated backcan for maximum efficiency and applications where UL approval is required.
The speaker is designed for in-wall applications and is suitable for music and messaging in boardroom, church, corporate A/V, and education applications. - BroadBeam waveguide technology delivers a consistent dispersion pattern up to 10kHz for maximum coverage area per speaker (EASE documented)
- One 5.25" polypropylene woofer and one 1" convex aluminum tweeter with FerroFluid cooling mounted to an M5 Motorboard
- 106.5dB maximum SPL offers high output capabilities and reduced amplification costs
- Easy installation blind-mount system for quick and secure installation
- Easy access 6-position tap switch for 25, 70.7 & 100V applications with voice coil/8Ω direct simplifies ordering and inventory tracking
- Integrated UL-listed steel enclosure with conduit connections
In the Box SoundTube Entertainment IW500B 5.25" In-Wall Speaker (White) Mounting Hardware Paint Mask Hole Template 1/2" Conduit Connector 2 x Wire Nut Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment IW500B 5.25" In-Wall Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment IW500B Specs | System Type | 5.25" Coax, in-wall, sealed (32 W transformer for 25/70.7/100 V or 8 Ω direct) | | Impedance | 8 Ω (nominal) Impedance listed per IEC 60268-5 with a minimum less than 80% of the nominal impedance. | | Sensitivity | 87.5 dB @ 2.83 V / 1 m
87.5 dB @ 1 W / 1 m 1 W / 1 m sensitivity determined using nominal impedance. | | Frequency Response | 140 Hz to 22 kHz (- 3 dB)
69 Hz to 22 kHz (- 10 dB) Frequency response measured in half or full space as dictated by speaker mounting configuration. | | Max. Program Power | 150 W Maximum program power is 3 dB above maximum continuous power. | | Max. Continuous Power RMS | 75 W Continuous power rating, EIA-426-B test. | | Max. Power SPL | 106.5 dB @ 1 m Maximum output based on maximum continuous power | | Coverage Angle | 90º horizontal / 100º vertical (-6 dB @ 2 kHz)
70º horizontal / 85º vertical (-6 dB @ 10 kHz)
115º horizontal / 115º vertical (average from 2 to 10 kHz) | | Directivity Factor | 4.9 (Average 100 Hz to 10 kHz), 8.3 (2 kHz) (Q) | | Directivity Index | 6.0 dB (average 100 Hz to 10 kHz), 9.2 dB (2 kHz) (DI) | | Tap Selector | Six-position rotary switch with 8 Ω direct | | Transformer Taps | 70.7 V Output
33 W (102.5 dB)
17 W (100.0 dB)
9 W (97.0 dB)
6 W (95.5 dB)
3 W (92.5 dB)
100 V Output
33 W (102.5 dB)
17 W (100.0 dB)
9 W (97.0 dB)
6 W (95.5 dB)
25 V Output
5 W (94.5 dB)
2.5 W (91.5 dB)
1.3 W (88.5 dB)
0.63 W (85.5 dB) | | Transducer | 1 x 5.25" (132 mm) polypropylene cone, butyl rubber surround (low frequency driver)
1.0" (25.4 mm) convex aluminum tweeter with waveguide (high frequency driver) | | Low Frequency Voice Coil | 1.0" (25.4 mm) | | Crossover Frequency | 3.0 kHz | | Network Type | Low and High Pass: 12 dB per octave, 2nd order | | Motorboard | Cast aluminum | | Grille | Iridite-plated steel with powder-coat finish | | Inputs | Wire leads | | Regulatory Approvals | Backcan listed to UL1480
CE approved | | Dimensions (H x W x D) | 11.8 x 8.6 x 3.9" (299.7 x 218.4 x 99.0 mm) | | Weight | 8.9 lb (4.0 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 15.0 x 11.0 x 7.0" |
