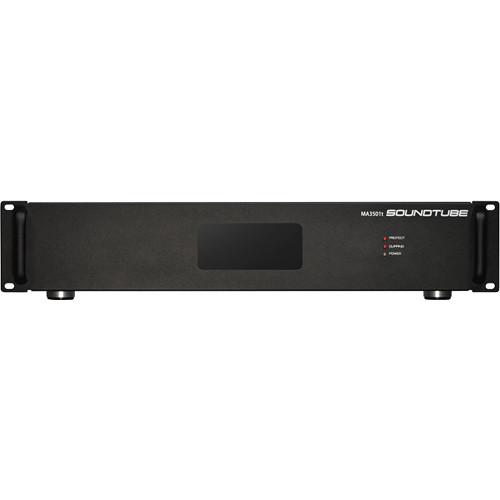

Product description The MA3501t Mono-Block 350W Audio Distribution Amplifier from SoundTube Entertainment is a high-output, low-voltage mono power amplifier engineered for use in distributed sound applications. Designed for use with SoundTube and other high-fidelity speakers, the amplifier provides 350W of output power into 4 Ohms and 225W into 8 Ohms. It offers taps for 25V, 70V, 100V, and bypass. A 12V trigger is provided along with automatic music sensing for remote on/off functions. The amplifier has dual RCA unbalanced inputs and a single Euroblock balanced input. It features a selectable limiter with a three-position subsonic filter. Suitable for distribution of mono audio to speakers throughout a facility, the amplifier can be used in applications that include hospitality, corporate, retail, education, government, themed entertainment and more. The unit is powered via an internal 110 to 240 VAC power supply. The amplifier is housed in a powder-coated steel chassis that can be rack mounted in a 2U rack space. All controls located on rear panel-deterring unauthorized tampering with levels or other settings. - Efficient Class G high current mono-block 350W amplifier
- Large toroidal power transformer and audio output transformer
- Taps for 25V, 70V, 100V and bypass
- Dual RCA unbalanced inputs and a single Euroblock balanced input
- All controls located on rear panel
- 30 Hz to 35 kHz ±0.5 dB frequency response
- 3-position subsonic filter
- 12V trigger for remote activation/deactivation
- Overload, short circuit, and heat protection along with peak output protection
In the Box SoundTube Entertainment MA3501t Mono-Block 350W Audio Distribution Amplifier Limited 5-Year Warranty on Hardware Limited 3-Year Warranty on Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment MA3501t Mono-Block 350W Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment MA3501t Specs | System Type | MA3501T Class-G high current commercial audio distribution amplifier | | Amplifier Power | Direct Output:
350 W RMS, <0.1% THD @ 4 Ohms, 700 W peak
225 W RMS, <0.1% THD @ 8 Ohms, 400 W peak
Transformer Output:
350W (25V/70V/100V), <0.1% THD | | Filter | HP Filter (Switchable): 40Hz to 60 Hz | | Response | Overall Response:
20 to 100 kHz ±dB direct
30 Hz to 35 kHz ± 0.5 dB | | Power Bandwidth | Direct: 30 Hz to 65 kHz (+0, -3 dB)
Transformer: 30 Hz to 50 kHz (+0, -3 dB) | | Inputs | Dual RCA unbalanced and single Euroblock balanced | | Input Sensitivity | Maximum: 175 mV for full output unbalanced / balanced / variable | | THD+N | <0.05% 20 to 20 kHz below rated output power | | S/N | >85 dB unweighted | | Damping Factor | >200 | | Input Impedance | 20K unbalanced, 10K balanced | | Protection Features | Soft Clipping Limiter (Switchable), Short Circuit/Overload, DC offset protection, Thermostatic variable speed fan cooling, Thermal overload protection, Transformer thermal protection, Over current protection | | Front Panel Indicators | Power / Standby, Clipping, Protection LEDs | | Current Consumption | Continuous Program:
3 A @ 8 Ohms, 120 V
5.5 A @ 4 Ohms, 120 V | | Operating Voltage | Switchable:
115 VAC 60 Hz @ 9 A maximum
230 VAC 50 Hz @ 4 A maximum | | Approvals | UL 60065 Listed, CCC, CE, RoHS | | Dimensions (H x W x D) | 3.50 x 19.00 x 13.75" (88.90 x 482.60 x 349.25 mm)
3.75 x 19.00 x 13.75" (95.25 x 482.60 x 349.25 mm) including feet
Standard 2RU | | Weight | 29.5 lb (13.38 kg) |
