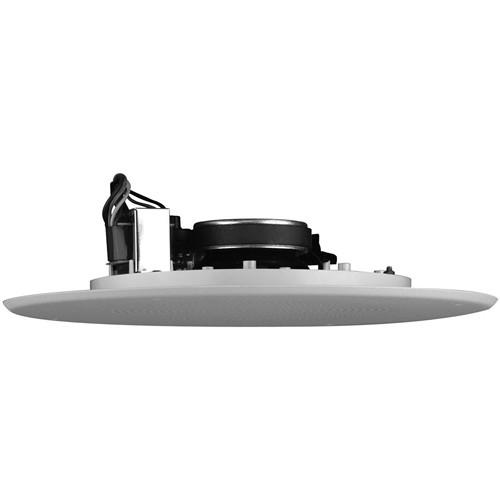

User Manual for SoundTube Entertainment RF41-20 4" In-Ceiling Raw Frame Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment RF41-20 4" In-Ceiling Raw
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment RF41-20 4" In-Ceiling Raw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The RF41-20 4” In-Ceiling Raw Frame Speaker from SoundTube Entertainment delivers optimum audio performance in the frequency range from 71 Hz to 22 kHz (- 10 dB). This speaker includes a five-position tap switch for 25-, 70.7-, and 100V applications and a transformer bypass position. The RF41-20 Speaker is suitable for use in hotels, retail stores, restaurants, airports, churches (under eaves), or boardrooms. - Features a full-range 4" treated fiber woofer with cloth surround
- Easy-access five-position tap switch for 25/70.7/100V and transformer bypass position plus spring terminals
- Engineered for installations with limited plenum space or retrofit applications
- Offers 88.5 dB sensitivity and 8Ω impedance
- Voice intelligibility with an average coverage angle of 110° (2 to 10 kHz, independently verified)
- Fits standard 8" back cans for retrofits (sold separately)
- Includes mounting hardware
In the Box SoundTube Entertainment RF41-20 4" In-Ceiling Raw Frame Speaker Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment RF41-20 4" In-Ceiling Raw Frame Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment RF41-20 Specs | System Type | 4" (102 mm), full-range, in-ceiling, raw frame, sealed (20 W transformer for 25/70.7/100 V or transformer bypass). | | Nominal Impedance | 8 Ω Impedance listed per IEC 60268-5 with a minimum less than 80% the nominal impedance | | Sensitivity | 2.83 V/m & 1 W/m: 88.5 dB 1 W/m sensitivity determined using nominal impedance | | Frequency Response | -3 dB: 155 Hz to 22 kHz
-10 dB: 71 Hz to 22 kHz Frequency response measured in half or full space as dictated by speaker mounting configuration. | | Maximum Power | Program Power: 40 W
Continuous Power RMS: 20 W Maximum program power is 3 dB above maximum continuous power
Continuous power rating, EIA-426-B test | | Max SPL Level | 101.5 dB @ 3.3' (1.0 m) Maximum output based on maximum continuous power | | Coverage Angle | -6 dB @ 2 kHz: 145°
-6 dB @ 10 kHz: 55°
-6 dB @ Averaged from 2 to 10 kHz: 110° | | Angle | Angle of Pointability: 0 to 90° horizontal | | Directivity Factor | Q, 4.9 (averaged 100 Hz to 10 kHz); 4.6 @ 2 kHz | | Directivity Index | DI, 5.7 dB (averaged 100 Hz to 10 kHz); 6.6 dB @ 2 kHz | | Tap Selector | Five-position rotary switch with transformer bypass | | Driver | 4" (102 mm) treated paper cone, cloth surround | | Low Frequency Voice Coil | 0.79" (20.0 mm) | | Enclosure Material | Injection molded ABS baffle, separate back can | | Inputs | Spring terminals | | Transformer Taps | 70.7 V Output: 20 W (101.5 dB), 10 W (98.5 dB), 5 W (95.5 dB), and 2.5 W (92.5 dB)
100 V Output: 20 W (101.5 dB), 10 W (98.5 dB), and 5 W (95.5 dB)
25 V Output: 1 W (89.5 dB), 0.63 W (86.5 dB), and 0.31 W (83.5 dB) | | Approvals | CE and RoHS | | Mounting Hole Diameter | 7.6" (19.2 cm) | | Dimensions (Ø x H) | 8.3 x 2.7" (20.9 x 6.8 cm)
Visible: 12.6 x 0.3" (32.0 x 0.6 cm) | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 4.0" |
