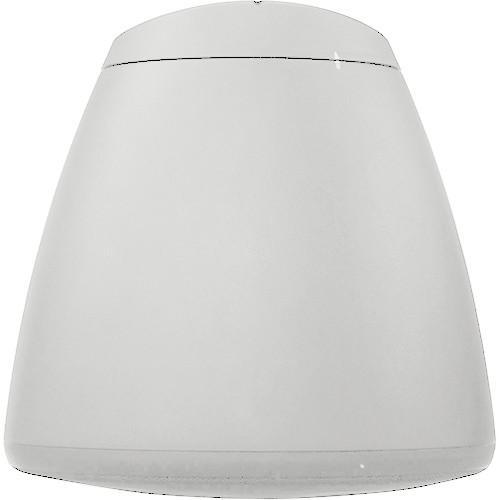

Product description The white RS-EZ Series RS82-EZ 8" Coaxial Speaker Open-Ceiling Hanging Speaker from SoundTube Entertainment is designed for open-ceiling applications and features an 8" coaxial driver with BroadBeam Ring technology for consistently smooth high-frequency directivity. It incorporates a 4-position ceramic terminal block input connector and a 6-position tap switch with transformer bypass position. This speaker comes with hanging hardware that includes galvanized steel cables and a built-in hanging bracket for fast, easy, and secure installation. The unit may be mounted direct-to-conduit via the included screw-on locking cover plate (included). The speaker enclosure is constructed of injection-molded ABS with glass fiber reinforcement for durability in indoor or outdoor applications. It also features an aluminum grille with protective powder-coated finish. The speaker offers an impedance of up to 16Ω for easy daisy chaining in low voltage systems. The ceramic input terminal accepts up to 10-gauge plenum-rated signal wire and includes a thermal fuse. The RS82-EZ speaker includes hanging cables and a built-in mounting plate for suspending it; a threaded opening on top of its cover plate allows for direct-to-conduit mounting. This speaker is suitable for use in voice alarm applications subject to EU EN60849 and BS5839-8 regulations. It is suitable for installation in retail, grocery stores, restaurants, hotels, casinos, museums, trade shows, and conference rooms. - Features an 8" (203mm) coaxial driver with BroadBeam Ring technology for consistently smooth high-frequency directivity
- Weatherized components for indoor and outdoor applications
- Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy, and secure installation
- Unit may be hung using the included mounting hardware or mounted direct-to-conduit via locking cover plate (included)
- Enclosure constructed of injection molded ABS with glass fiber reinforcement for durability
- 16Ω impedance for easy daisy chaining in low voltage systems
- Aluminum grille with protective powder-coated finish
- UL 1480 UEAY planned, UL 2239 approved
In the Box SoundTube Entertainment RS-EZ Series RS82-EZ 8" Coaxial Speaker Open-Ceiling Hanging Speaker (White) Hanging Hardware Weather Plug Cover Plate Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment RS-EZ Series RS82-EZ 8" Coaxial Speaker Open-Ceiling Hanging Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment RS82-EZ Specs | System Type | 8" (203 mm), coaxial, open-ceiling, ported
64 W transformer for 25/70.7/100 V or transformer bypass applications | | Impedance | Nominal: 16 Ω Impedance listed per IEC 60268-5 | | Sensitivity | 90 dB @ 2.83 V/1 m
93 dB @ 1 W/1 m 1 W/ 1 m sensitivity determined using nominal impedance | | Frequency Response | 110 Hz to 22 kHz @ -3 dB
80 Hz to 22 kHz @ -10 dB Frequency response measured in half or full space as dictated by speaker mounting configuration. | | Max. Program Power | 128 W Maximum program power is 3 dB above maximum continuous power | | Max. Continuous Power RMS | 64 W Continuous power rating, EIA-426-B test | | Max. Power SPL | 110 dB @ 1 m Maximum output based on maximum continuous power | | Tap Selector | Six-position rotary switch with transformer bypass | | Transformer Taps | Output at 71 V:
111 dB @ 64 W
108 dB @ 32 W
105 dB @ 16 W
102 dB @ 8 W
99 dB @ 4 W
Output at 100 V:
111 dB @ 64 W
108 dB @ 32 W
105 dB @ 16 W
102 dB @ 8 W
Output at 25 V:
102 dB @ 8 W
99 dB @ 4 W
96 dB @ 2 W
93 dB @ 1 W | | Transducer | Low-Frequency Driver: 8" (203 mm) polypropylene cone, butyl rubber surround
High-Frequency Driver: 1.38" (35.00 mm) Silk dome with Beam Ring | | Voice Coil | Low-Frequency: 1.5" (38.0 mm) | | Crossover Frequency | 2.5 kHz | | Network Type | Low Pass: 12 dB per octave, 2nd order
High Pass: 18 dB per octave, 3rd order | | Enclosure Material | Injection molded ABS, glass fiber reinforced | | Grille | Powder-coated aluminum | | Inputs | 4-position ceramic terminal connector | | Approvals | UL 1480 UEAY and UL 2239
CE
RoHS | | Dimensions (Ø x H) | 12.90 x 12.83" (327.66 x 325.88 mm) | | Weight | 14.00 lb (6.35 kg) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 16.0 x 15.0 x 15.0" |
