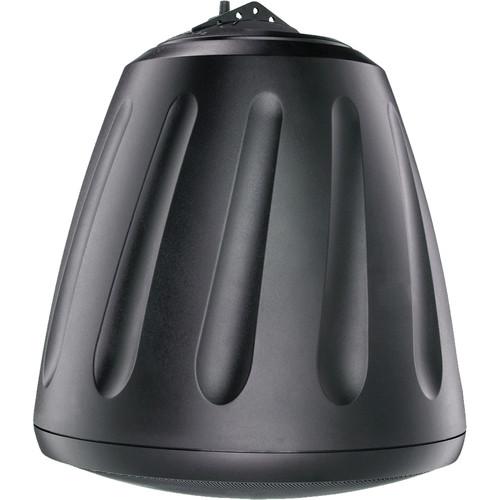

User Manual for SoundTube Entertainment RS1001i-II-T 10" Coaxial Open-Ceiling Subwoofer Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment RS1001i-II-T 10" Coaxial Open-Ceiling
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment RS1001i-II-T 10" Coaxial Open-Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The black RS1001i-II-T 10" Coaxial Open-Ceiling Subwoofer from SoundTube Entertainment incorporates a 10" polypropylene woofer and a butyl rubber surround in a tuned and ported enclosure delivering low-end frequency response from 38 Hz to 450 Hz at -10 dB (independently verified) and high SPL of 105 dB. The BroadBeam technology in this subwoofer incorporates a high-frequency waveguide mated to a 1" convex titanium tweeter. The BroadBeam high-frequency waveguide delivers a consistent dispersion pattern across the upper registers of the frequency spectrum that offers optimum edge-to-edge coverage and reduced power needs. The RS1001i-II-T Subwoofer comes with UL-listed mounting hardware and cables. It also features a SpeedClamp self-locking cable grip for fast, easy, and secure installation. This subwoofer also includes a five-position tap switch for 25, 70.7, and 100V applications with a transformer bypass position. This indoor/outdoor, background to foreground subwoofer is designed for installations where true bass response and rapid installation are critical variables. It is suitable for installations in aerobic rooms, retail, restaurants, nightclubs, bars, theme parks, arenas, ballrooms, and places of worship. - Features a 10" (254mm) polypropylene cone with a butyl rubber surround attached to a reinforced baffle
- Baffle-mounted, flared, and tuned ports for maximum efficiency and frequency response
- Offers high-output of 105 dB and an accentuated 70 Hz peak to maximize listener's low-frequency experience
- Features a 150W, low insertion-loss transformer with an easy-access, five-position tap switch for 25/70.7/100V and transformer bypass positions
- Weatherized components including powder-coated steel grille, hanging hardware, and a durable ABS enclosure for indoor/outdoor applications
- Includes hanging hardware with adjustable galvanized steel cables and integrated SpeedClamp self-locking cable grip
- Comes with an Euroblock connector and terminal weather boot
- Can be surface-mounted with the AC-RS-SM8 mount bracket (not included)
- UL 1480 (UEAY) and CE-approved
- Included hanging hardware is UL 2239-approved
In the Box SoundTube Entertainment RS1001i-II-T 10" Coaxial Open-Ceiling Subwoofer (Black) Hanging Hardware Euroblock Connector Terminal Weather Boot Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment RS1001i-II-T 10" Coaxial Open-Ceiling Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment RS1001I-II-T Specs | System Type | 10" (203 mm) subwoofer, open-ceiling, ported
150 W transformer for 25/70.7/100 V or transformer bypass applications | | Impedance | Nominal: 4 Ω Impedance listed per IEC 60268-5. | | Sensitivity | 86 dB @ 2.83 V/1 m
83 dB @ 1 W/1 m 1 W/1 m sensitivity determined using nominal impedance. | | Frequency Response | 53 Hz to 175 Hz @ -3 dB
38 Hz to 450 kHz @ -10 dB Frequency response measured in half or full space as dictated by speaker mounting configuration. | | Max. Program Power | 300 W Maximum program power is 3 dB above maximum continuous power. | | Max. Continuous Power RMS | 150 W Continuous power rating, EIA-426-B test. | | Max. Power SPL | 105 dB @ 3.2' (1.0 m) Maximum output based on maximum continuous power. | | Tap Selector | Five-position rotary switch with transformer bypass | | Transformer Taps | Output at 70.7 V:
105 dB @ 150 W
102 dB @ 75 W
99 dB @ 38 W
96 dB @ 19 W
Output at 100 V:
105 dB @ 150 W
102 dB @ 75 W
99 dB @ 38 W
Output at 25 V:
96 dB @ 19 W
93 dB @ 9.5 W
90 dB @ 4.8 W
87 dB @ 2.4 W | | Transducer | Low-Frequency Driver: 10" (254 mm) polypropylene cone, butyl rubber surround | | Voice Coil | Low-Frequency: 1.38" (35 mm) | | Network Type | Low Pass: 6 dB per octave, 1st order | | Enclosure Material | Injection molded ABS, glass fiber reinforced | | Grille | Powder coated steel | | Inputs | 4-pin, 5.08 mm Euroblock for individual or daisy chain connection | | Approvals | UL 1480 (UEAY) and 2239-approved
CE
RoHS | | Dimensions (Ø x H) | 17.23 x 14.82" (437.64 x 376.43 mm) | | Weight | 27.0 lb (12.3 kg) | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 19.0 x 18.0 x 18.0" |
