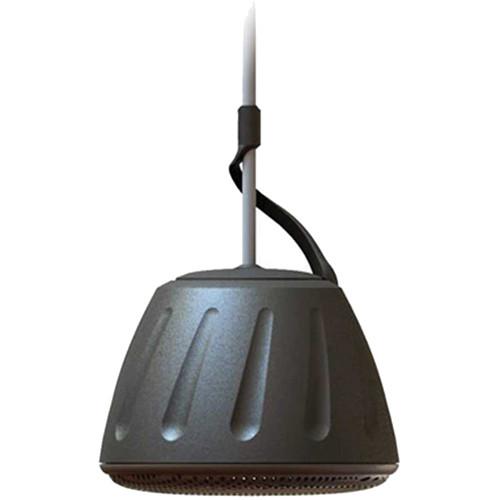

User Manual for SoundTube Entertainment RS31-EZ 3" Indoor Outdoor On-Ceiling Pendant Mount Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment RS31-EZ 3" Indoor Outdoor
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment RS31-EZ 3" Indoor Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The black RS31-EZ 20W Full Range On-Ceiling Pendant Mount Speaker from SoundTube Entertainment is an 8Ω speaker without transformer. It utilizes an all-in-one ceiling mount system designed to retrofit in most junction boxes. The RS31-EZ speaker incorporates a 10' speaker hanging cable for on-ceiling applications. The included cover plate hides the mounting elements and holds the excess signal/hanging cable. The components used in the speaker have been weatherized for indoor/outdoor applications. Engineered for rapid installation and low-profile mounting for small venues, this speaker is suitable for finished ceiling applications in retail, restaurants, conference rooms, patio areas, educational facilities, or any setting where full-range intelligibility, unobtrusive design, and installation ease are paramount. - One 3" polypropylene driver with butyl rubber surround
- Weatherized components for indoor/outdoor applications
- Ultra-low profile ZeroReflection ABS enclosure; 4.35 (height) x 4.35" (diameter) without stabilizing arm
- Corrosion-resistant, powder-coated aluminum grille
In the Box SoundTube Entertainment RS31-EZ 3" Indoor/Outdoor On-Ceiling Pendant Mount Speaker (Black) Mounting Element Cover Plate 10' Speaker Signal/Hanging Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment RS31-EZ 3" Indoor Outdoor On-Ceiling Pendant Mount Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment RS31-EZ Specs | System Type | 3.0" (7.6 cm) full-range, pendant mount speaker | | Driver | 3.0" (7.6 cm) full-range polypropylene with butyl rubber surround | | Impedance | 8 Ω (nominal) Listed per IEC 60268-5 with a minimum <80% nominal impedance | | Sensitivity | 85 dB @ 2.83 V/1 m, 85 dB @ 1 W/1 m 1 W/1 m determined using nominal impedance | | Frequency Response | -3 dB: 170 Hz to 14 kHz
-10 dB: 120 Hz to 22 kHz Measured in half or full space as dictated by speaker mounting configuration | | Max. Program Power | 40 W 3 dB above maximum continuous power | | Continuous Power | 20 W RMS maximum Per EIA-426-B test | | SPL | 98 dB @ 1 m (3.3') Based on maximum continuous power | | Coverage Angle | -6 dB @ 2 kHz: 70°
-6 dB @ 10 kHz: 45°
Averaged from 2 to 10 kHz: 85° | | Directivity Factor | 4.9 (averaged 100 Hz to 10 kHz), 7.1 (2 kHz) | | Directivity Index | 5.1 dB (averaged 100 Hz to 10 kHz), 8.5 dB (2 kHz) | | Input | Terminal strip | | Material | Enclosure: Injection molded ABS
Grille: Corrosion-resistant, powder-coated aluminum | | Regulatory Approvals | UL 1480 (UEAY), CE, RoHS | | Dimensions (Ø x H) | Without Stabilizing Arm: 4.35 x 4.35" (11.04 x 11.05 cm)
With Stabilizing Arm: 4.35 x 5.50" (11.04 x 13.97 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 7.0" |
