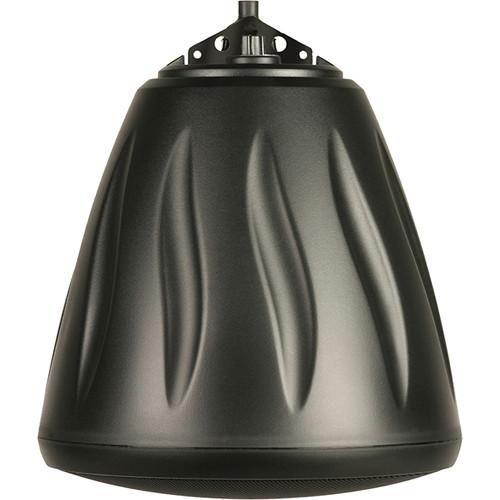

Product description The black RS4-EZ 4” Open-Ceiling Speaker from SoundTube Entertainment is a full-range, ported speaker with an open-ceiling enclosure design. It features a 4” full-range, treated fiber driver mounted to an ABS baffle. Hanging hardware is included and features a SpeedClamp self-locking wire grip for fast, easy and secure installation. The driver and electro-acoustic network deliver high-performance sound. The RS4-EZ speaker incorporates a low-profile grille and a five-position tap switch with transformer bypass position.Designed for indoor and outdoor background to mid-level SPL applications, the RS4-EZ Speaker includes a single-point mounting system for rapid open-ceiling installations. This speaker is suitable for music and paging applications in retail, grocery stores, restaurants, hotels, casinos, museums, trade shows, and conference rooms. - Features a 4" (102 mm) full-range, treated fiber driver mounted to an ABS baffle
- Weatherized components for indoor and outdoor applications
- Includes hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking wire grip for fast, easy, and secure installation
- Includes Euroblock connector and terminal weather boot
- Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity.
- Easy access five-position selectable tap switch for 25, 70.7, and 100V applications with transformer bypass position simplifies ordering and inventory tracking
- Steel grille with protective powder-coated finish for lasting durability
- Average sensitivity of 90.0 dB
- UL 2239 approved hanging cable
- Can be surface mounted with AC-RS-SM5 Bracket (sold separately)
In the Box SoundTube Entertainment RS4-EZ 4" Open-Ceiling Speaker (Black) Euroblock Connector Terminal Weather Boot Hanging Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment RS4-EZ 4" Open-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment RS4-EZ Specs | System Type | 4" (102 mm) full-range, open-ceiling, ported (20 W transformer for 25/70.7/100 V or transformer bypass) | | Nominal Impedance | 8 Ω Impedance listed per IEC 60268-5 | | Sensitivity | 2.83 V/m and 1 W/m: 90 dB 1 W/m sensitivity determined using nominal impedance | | Frequency Response | -3 dB: 185 Hz to 13 kHz
-10 dB: 98 Hz to 22 kHz Frequency response measured in half or full space as dictated by speaker mounting configuration | | Maximum Power | Program Power: 40 W
Continuous Power RMS: 20 W Maximum program power is 3 dB above maximum continuous power
Continuous power rating, EIA-426-B test | | Max SPL Level | 103 dB @ 3.3' (1.0 m) Maximum output based on maximum continuous power | | Coverage Angle | -6 dB @ 2 kHz: 160°
-6 dB @ 10 kHz: 60°
Averaged from 2 to 10 kHz: 95° | | Directivity Factor | Q, 4.3 (averaged 100 Hz to 10 kHz); 3.8 (2 kHz) | | Directivity Index | DI, 4.9 dB (averaged 100 Hz to 10 kHz); 5.8 dB @ 2 kHz | | Tap Selector | Weather-proof, five-position tap switch with transformer bypass position | | Low Frequency Driver | 1 x 4" (102 mm) paper cone, treated cloth surround | | Voice Coil | 0.8" (2.0 cm) | | Enclosure Material | Injection-molded ABS, glass fiber reinforced | | Grille Material | Steel with powder-coat finish | | Inputs | 1 x four-pin, 5.08 mm Euroblock for individual or daisy chain connection | | Transformer Taps | 70.7 V Output: 20 W (103 dB), 10 W (100 dB), 5 W (97 dB), and 2.5 W (94 dB)
100 V Output: 20 W (103 dB), 10 W (100 dB), and 5 W (97 dB)
25 V Output: 2.5 W (94 dB), 1 W (91 dB), 0.63 W (88 dB), and 0.31 W (85 dB) | | Approvals | UL 2239 (hanging cable), CE, and RoHS | | Dimensions (Ø x H) | 7.7 x 8.8" (19.6 x 22.3 cm) | | Weight | 3.9 lb (1.8 kg) |
