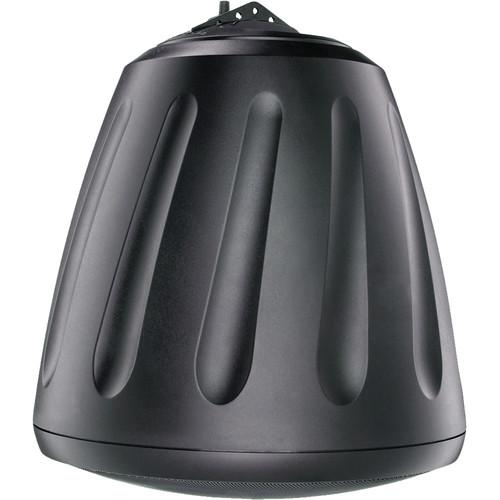

Product description The black RS800i 8" Coaxial Open-Ceiling Speaker from SoundTube Entertainment is a two-way ported speaker with an open-ceiling enclosure design that delivers effective low-end response (from 58 Hz to 22 kHz @ -10 dB). The BroadBeam technology in this speaker incorporates a high-frequency waveguide mated to a 1" convex titanium tweeter. The BroadBeam high-frequency waveguide delivers a consistent dispersion pattern across the operating bandwidth that offers optimum edge-to-edge coverage and reduced power needs. The RS800i Speaker incorporates a low-profile grille, motor-board, and a six-position tap switch with transformer bypass position. It features a SpeedClamp self-locking cable grip for fast, easy, and secure installation. Designed for indoor and outdoor background to foreground SPL applications, the RS800i Speaker includes a single-point mounting system for rapid open-ceiling installations. The broad dispersion pattern of 105° and high sensitivity of 89.5 dB 1W/1m makes this speaker suitable for big box stores, fitness centers, sports bars, multi-purpose rooms, places of worship, airports, theme parks, ballrooms, convention centers, casinos, and other open-ceiling applications. - BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (up to 10 kHz, independently verified)
- Features a 8" (203mm) polypropylene woofer and 1" (25mm) convex titanium tweeter with FerroFluid cooling mounted to a cast-aluminum baffle and heat sink
- Weatherized components for indoor and outdoor applications
- Includes UL-listed hanging hardware with adjustable galvanized steel cables and integrated SpeedClamp self-locking cable grip
- Features an Euroblock connector and terminal weather boot
- ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity
- Easy access six-position selectable tap switch for 25, 70.7, and 100V applications with transformer bypass position
- Steel grille with protective powder-coated finish for durability
- Can also be surface-mounted with the AC-RS-SM8 mount bracket (not included)
- UL 1480 (UEAY), 2239 (hanging cable), and Milspec 810 approved
In the Box SoundTube Entertainment RS800i 8" Coaxial Open-Ceiling Speaker (Black) Hanging Hardware Euroblock Connector Terminal Weather Boot Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment RS800i 8" Coaxial Open-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment RS800I Specs | System Type | 8" (203 mm), coaxial, open-ceiling, ported
66 W transformer for 25/70.7/100 V or transformer bypass applications | | Impedance | Nominal: 8 Ω Impedance listed per IEC 60268-5 with a minimum less than 80% the nominal impedance. | | Sensitivity | 89.5 dB @ 2.83 V/1 m
89.5 dB @ 1 W/1 m 1 W/1 m sensitivity determined using nominal impedance. | | Frequency Response | 80 Hz to 20 kHz @ -3 dB
58 Hz to 22 kHz @ -10 dB Frequency response measured in half or full space as dictated by speaker mounting configuration. | | Max. Program Power | 250 W Maximum program power is 3 dB above maximum continuous power. | | Max. Continuous Power RMS | 125 W Continuous power rating, EIA-426-B test. | | Max. Power SPL | 110.5 dB @ 3.2' (1.0 m) Maximum output based on maximum continuous power. | | Coverage Angle | 100° (-6 dB @ 2 kHz)
115° (-6 dB @ 10 kHz)
105° (Averaged 2 to 10 kHz) | | Directivity Factor | 4.7 (Averaged 100 Hz to 10 kHz); 5.5 @ 2 kHz | | Directivity Index | 5.8 (Averaged 100 Hz to 10 kHz); 7.4 dB @ 2 kHz | | Tap Selector | Six-position rotary switch with transformer bypass | | Transformer Taps | Output at 70.7 V:
107.5 dB @ 66 W
105 dB @ 35 W
102.5 dB @ 19 W
99.5 dB @ 10 W
96.5 dB @ 5 W
Output at 100 V:
107.5 dB @ 66 W
105 dB @ 35 W
102.5 dB @ 19 W
99.5 dB @ 10 W
Output at 25 V:
99 dB @ 9 W
96 dB @ 4.5 W
93 dB @ 2.3 W
90 dB @ 1.1 W | | Transducer | Low-Frequency Driver: 8" (203 mm) polypropylene cone, butyl rubber surround
High-Frequency Driver: 1" (25 mm) convex titanium tweeter with waveguide | | Voice Coil | Low-Frequency: 1" (25 mm) | | Crossover Frequency | 3 kHz | | Network Type | Low & High Pass: 12 dB per octave, 2nd order | | Enclosure Material | Injection molded ABS, glass fiber reinforced | | Grille | Steel with powder-coat finish | | Inputs | 4-pin, 5.08 mm Euroblock for individual or daisy chain connection | | Approvals | UL 1480 (UEAY) and 2239 (hanging cable)
CE
RoHS | | Dimensions (Ø x H) | 17.2 x 14.8" (437.6 x 376.4 mm) | | Weight | 20.5 lb (9.3 kg) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 20.0 x 18.0 x 18.0" |
