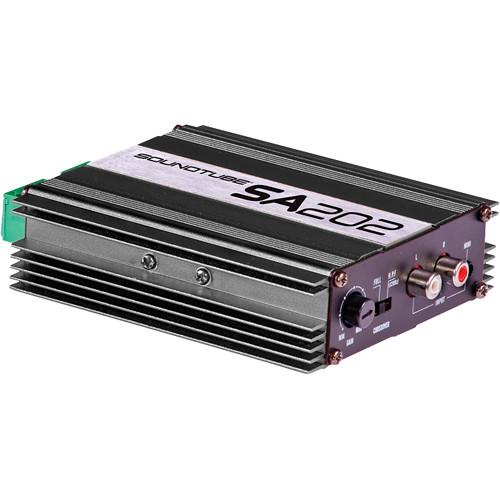

User Manual for SoundTube Entertainment SA202-RDT Mini Amplifier Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment SA202-RDT Mini Amplifier
- Product category: Standard Amplifiers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Standard Amplifiers
|
User manual for the SoundTube Entertainment SA202-RDT Mini Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The SoundTube Entertainment SA202-RDT Mini Amplifier is a 20W per channel (4Ω) Class AB amplifier with a maximum gain of 35 dB. Input options include dual RCA jacks and a stereo mini jack for line-level audio sources and a speaker-level (amplified) input for applications with low-wattage speaker outputs (e.g., AV projector to external speakers). A 15V power supply and mounting hardware are included. Mounting hardware adapts the SA202-RDT for pole, surface, or security attachment installations.The small SA202-RDT Amplifier is engineered for external amplification with SoundTube FP sound-focusing and other high-fidelity speakers. Additional applications include digital signage, education, point of purchase, museums, surgical centers, AV carts, or any application where a small amplifier is needed to boost a limited source output (e.g., computers, A/V projectors, and more). This system is for indoor applications. - 35 dB maximum gain with 2 x 20W output
- Dual RCA, stereo mini jack, and high-level inputs
- High pass filter at 120 Hz (12 dB per octave) to reduce bass distortion in smaller speakers
- Aluminum housing with integrated heat sink
- Power inputs include either a 3-pin Euroblock or barrel connector
- 12V trigger for automatic on/off functions when source power is detected
- Universal pole- and surface-mount adapter, and 15V power supply are included
In the Box SoundTube Entertainment SA202-RDT Mini Amplifier Universal Pole- and Surface-Mount Adapter 15V Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment SA202-RDT Mini Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment SA202-RDT Specs | System Type | 20W per channel (4 Ω) Class AB amplifier | | Frequency Response | 20 Hz to 20 kHz (±0.1 dB) | | Maximum Gain | 35 dB | | Power | Per channel @ <10% THD: 20 W (4 Ω stereo) 10 W (8 Ω stereo)
Per channel @ <1% THD: 15 W (4 Ω stereo) 8 W (8 Ω stereo) | | Signal to Noise Ratio | 92 dB (100 Hz, 12 dB/octave, 4 Ω, A-Weighted) | | Input Impedance | 6 kΩ | | High-Pass Filter | 120 Hz; 12 dB per octave | | Height | 1.23" (31.2 mm) | | Width | 3.98" (101.1 mm) | | Depth | 4.86" (123.6 mm) including connectors | | Weight | Amplifier and Power Supply: 1.30 lb (0.59 kg)
Amplifier Only: 0.55 lb (0.25 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.2 x 6.5 x 4.6" |
