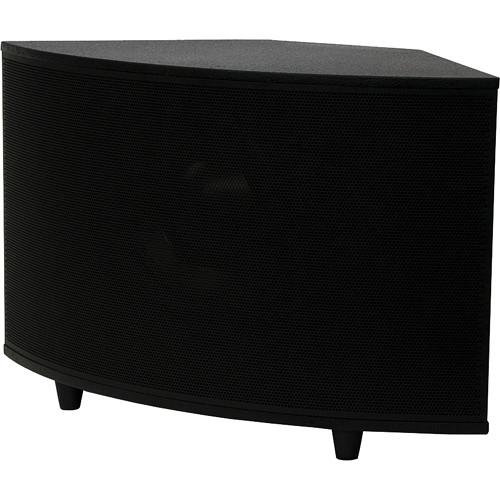

User Manual for SoundTube Entertainment SM1001p 10" 200W High-Powered Surface-Mount Subwoofer Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment SM1001p 10" 200W High-Powered
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment SM1001p 10" 200W High-Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The black SM1001p 10" 200W High-Powered Surface-Mount Subwoofer from SoundTube Entertainment features a 10" active polypropylene woofer and a 10" polypropylene passive radiator to deliver maximum low-frequency response down to 41 Hz (-10 dB). Mated to a steel basket and an MDF and plywood enclosure, the subwoofer delivers serious low frequency punch (111 dB) with minimal distortion.Engineered with a 200W Class D amplifier, a 70.7V high level input and full-range balanced XLR outputs, the subwoofer offers a user selectable 50 to 200 Hz high-pass filter and a 0/180° phase switch.The SM1001p is a background to foreground subwoofer for installations where high-quality, true bass response and rapid installation are critical. Aerobic rooms, retail restaurants, nightclubs, hotels, bars, theme parks, arenas, ball-rooms and churches are good fits for this subwoofer. - Powered subwoofer with one 10" active woofer and one 10" passive radiator, incorporating a 200 W Class D amplifier
- Polypropylene woofers with butyl rubber surrounds mated to steel baskets
- Solid cabinet with textured black paint finish
- High output (111 dB) and maximum efficiency with an accentuated 70 Hz peak to maximize the listener's low frequency experience
- Powder-coated steel grilles provide lasting durability
- Inputs include a balanced XLR and 70.7V high-level binding post input
- 70.7V high level input for adding powered bass in distributed systems
- Full-range balanced XLR output with selectable 50 Hz to 200 Hz high-pass filters with full range LFE position
- Safety cable and forged eyebolt included
In the Box SoundTube Entertainment SM1001p 10" 200W High-Powered Surface-Mount Subwoofer (Black) Surface Mount Bracket 2 x Speaker Brackets 8 x Fasteners (1/2" Wood Screws) Security Screw Safety Cable Forged Eyebolt Limited 5-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment SM1001p 10" 200W High-Powered Surface-Mount Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment SM1001P Specs | System Type | 10" (254 mm) active woofer with a 10" (254 mm) passive radiator | | Sensitivity | 92 dB at 2.83 V/1 m, 92 dB at 1 W/1 m 1 W, 1 m sensitivity determined using nominal impedance | | Frequency Response | - 3 dB: 55 to 118 Hz, -10 dB: 41 to 224 Hz | | Max. Program Power | 300 W | | Max. Continuous Power RMS | 200 W | | Max. Power SPL | 111 dB at 1 m | | Low Frequency Transducer | One active 10" (254 mm) polypropylene cone with butyl rubber surround, one passive 10" (254 mm) polypropylene cone with butyl rubber surround | | Low Frequency Voice Coil | 1.38" (35.0 mm) | | Crossover Frequency | Variable, user-selectable 50 Hz through 200 Hz | | High-Pass Filter | Variable, user-selectable 50 Hz through 200 Hz | | Enclosure Material | MDF with plywood top and back | | Input | Balanced XLR | | Output | Balanced XLR | | Approvals | Regulatory CE, RoHS | | Height | 14" (355.6 mm) excluding feet | | Width | 24.6" (624.6 mm) | | Depth | 14.4" (364.7 mm) excluding SM bracket | | Weight | 27 lb (12.3 kg) | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 28.0 x 19.0 x 14.0" |
