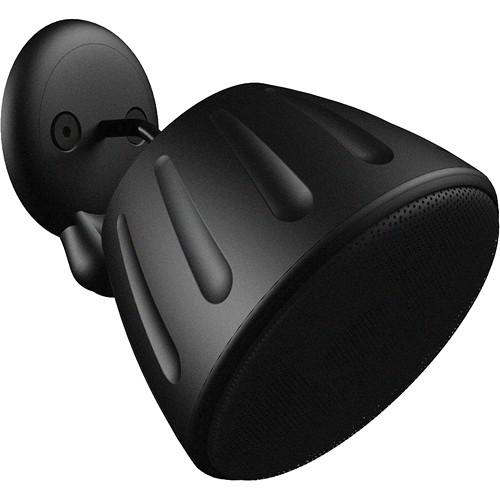

User Manual for SoundTube Entertainment SM31-EZ-T 3" Surface-Mount Speaker with 10W Transformer Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment SM31-EZ-T 3" Surface-Mount Speaker
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment SM31-EZ-T 3" Surface-Mount Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The black SM31-EZ-T 3" Surface-Mount Speaker with 10W Transformer from SoundTube Entertainment is a 3" surface-mount speaker that comes with a AC-SM31-XFMR transformer module to add a 10W transformer and 5 position tap switch that mounts into a single-gang deep junction box. The dimensions of this speaker measure smaller than a 4" sphere.The speaker incorporates a proprietary attachment with indexed swivel-joint for complete hemispherical aiming. Components have been weatherized for indoor/outdoor applications. The speaker is engineered for rapid installation and low profile mounting for smaller venues. It is suitable for use in retail, restaurants, conference rooms, patio areas, educational facilities or any setting where full-range intelligibility, unobtrusive design and installation ease are paramount. - One 3" polypropylene driver with butyl rubber surround
- Weatherized components for indoor/outdoor applications
- Theft- and corrosion-resistant mounting mechanism with an indexed swivel-joint for precision aiming in any direction
- Ultra-low profile ZeroReflection ABS enclosure
- Five position selectable tap switch
- Corrosion-resistant, powder-coated aluminum grille
- Comes with a 10W transformer and 5 position tap switch that mounts into a single-gang deep junction box
In the Box SoundTube Entertainment SM31-EZ-T 3" Surface-Mount Speaker with 10W Transformer (Black) 10W Transformer Single Gang Junction Box Mounting Plate Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment SM31-EZ-T 3" Surface-Mount Speaker with 10W Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment SM31-EZ-T Specs | System Type | 3" (76.2 mm) full-range, surface-mount, 8 Ω with 10 W transformer for 25/70.7/100 V applications | | Impedance | 8 Ω | | Sensitivity | 85.0 dB at 2.83 V/1 m & 1 W/1 m | | Frequency Response | -3 dB: 170 Hz to 14 kHz, -10 dB: 120 Hz to 22 kHz | | Max. Program Power | 40 W | | Max. Continuous Power RMS | 20 W | | Max. Power SPL | 98 dB at 1 m | | Coverage Angle | 70°: -6 dB at 2 kHz
45°: -6 dB at 10 kHz
80°: averaged from 2 to 10 kHz | | Angle of Inclination | 0 to 90° vertical 0 to 359° axial (full hemisphere) | | Directivity Factor | q: 4.9 (averaged 100 Hz to 10 kHz), 7.1 (2 kHz) | | Directivity Index | 5.1 dB (averaged 100 Hz to 10 kHz), 8.5 dB (2 kHz) | | Tap Selector | 5-position tap switch | | Transducer | 3" (76.1 mm) polypropylene driver with butyl rubber surround | | Low Frequency Voice Coil | 0.75" (19 mm) | | Enclosure | ABS | | Grille | Corrosion-resistant, powder-coated aluminum | | Inputs | Screw terminal | | Approvals | UL, CE, RoHS | | Enclosure | Diameter x Depth: 4 x 3.5" (101.6 x 88.9 mm) including mounting plate | | Height | 4.35" (110.4 mm) | | Width | 4.35" (110.4 mm) | | Depth | Including mounting bracket: 3.81" (96.9 mm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 10.315 x 8.425 x 6.85" |
