User Manual for SoundTube Entertainment SM400i 4" Surface-Mount Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment SM400i 4" Surface-Mount Speaker
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment SM400i 4" Surface-Mount Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|

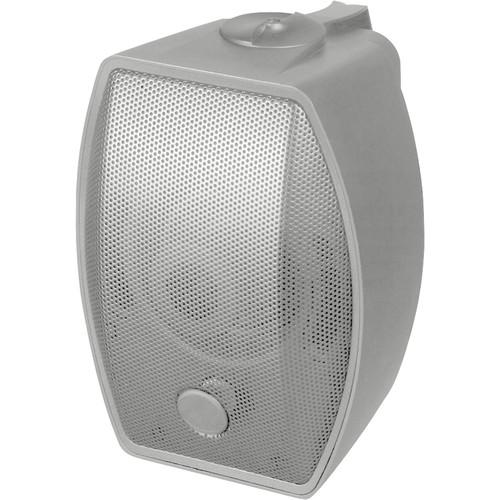

Product description The white SM400i 4” Surface-Mount Speaker from SoundTube Entertainment is a coaxial, ported speaker with a low-profile surface-mount enclosure design for indoor/outdoor applications. The proprietary BroadBeam waveguide technology incorporates a high-frequency waveguide mated to a 1” convex aluminum tweeter. It helps deliver a consistent dispersion pattern across the upper registers of the frequency spectrum.This speaker features a corrosion-resistant Stealth U-bracket for easy and secure installation. The bracket utilizes one way fasteners for tool-free, theft-resistant security. The SM400i Speaker incorporates a five-position tap switch with transformer bypass position. Included port plugs can be used for added weather resistance. It delivers high-quality music and messaging for indoor and outdoor background to mid-level SPL applications. This surface-mount speaker is suitable for use in retail shops, grocery stores, restaurants, hotels, casinos, museums, trade shows, and conference rooms. - BroadBeam waveguide technology delivers a consistent dispersion pattern up to 10 kHz for a wide coverage area
- Features a 4" polypropylene woofer and 1" convex titanium tweeter with FerroFluid cooling
- Includes port plugs and weatherized components for indoor and outdoor applications
- Easy access, five-position selectable tap switch for 25, 70.7, and 100V applications with transformer bypass position
- Iridite-plated aluminum grille with protective powder-coated finish for lasting durability
- Includes a tool-free Stealth U-bracket mounting system for fast and secure installation
- Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications
- UL 1480 (UEAY) and CE approved
In the Box SoundTube Entertainment SM400i 4" Surface-Mount Speaker (White) U-Bracket Mount with Safety Cable Euroblock Connector Paint Mask Terminal Weather Boot Port Plugs Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment SM400i 4" Surface-Mount Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment SM400I Specs | System Type | 4" (102 mm) coaxial, surface-mount, ported (20 W transformer for 25/70.7/100 V or transformer bypass) | | Nominal Impedance | 4 Ω | | Sensitivity | 2.83 V/m: 85.5 dB
1 W/m: 82.5 dB Average over published frequency response range.
1 W/m sensitivity based on voltage required to yield 1 W based on the minimum system impedance. | | Frequency Response | -3 dB: 97 Hz to 22 kHz
-10 dB: 76 Hz to 22 kHz | | Maximum Power | Program Power: 35 W
Continuous Power RMS: 20 W Continuous power rating, EIA-426-B test. | | Max SPL Level | 95.5 dB @ 3.3' (1.0 m) | | Coverage Angle | -6 dB @ 2 kHz: 125° horizontal / 165º vertical
-6 dB @ 10 kHz: 75° horizontal / 70º vertical
Ave from 2 to 10 kHz: 125° horizontal / 125° vertical | | Angle | Angle of Pointability: 0 to 90° horizontal | | Directivity Factor | Q, 3.7 (averaged 100 Hz to 10 kHz); 3.9 @ 2 kHz | | Directivity Index | DI, 4.9 dB (averaged 100 Hz to 10 kHz); 5.9 dB @ 2 kHz | | Tap Selector | Weather-proof, five-position tap switch with transformer bypass position | | Low Frequency Driver | 1 x 4" (102 mm) polypropylene cone, butyl rubber surround | | High Frequency Driver | 1 x 1" (25 mm) convex titanium tweeter with waveguide | | Low Frequency Voice Coil | 1" (25 mm) | | Crossover Frequency | 2.27 kHz | | Network Type | Low-Pass & High-Pass: 12 dB per octave, 2nd order | | Enclosure Material | Injection-molded ABS, glass fiber reinforced | | Grille Material | Powder-coated aluminum | | Inputs | 1 x four-pin, 5.08 mm Euroblock for individual or daisy chain connection | | Transformer Taps | 70.7 V Output: 20 W (95.5 dB), 10 W (92.5 dB), 5 W (89.5 dB), and 3 W (86.5 dB)
100 V Output: 20 W (95.5 dB), 10 W (92.5 dB), and 5 W (89.5 dB)
25 V Output: 3 W (86.5 dB), 1 W (83.5 dB), 0.63 W (80.5 dB), and 0.31 W (77.5 dB) | | Approvals | UL, CE, and RoHS | | Dimensions (H x W x D) | 9.7 x 6.9 x 7.5" (24.6 x 17.7 x 19.0 cm) (including bracket) | | Weight | 5.3 lb (2.4 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 9.0" |
