User Manual for SoundTube Entertainment SM500i-II-WX 5.25" Surface Mount Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment SM500i-II-WX 5.25" Surface Mount
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment SM500i-II-WX 5.25" Surface Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|

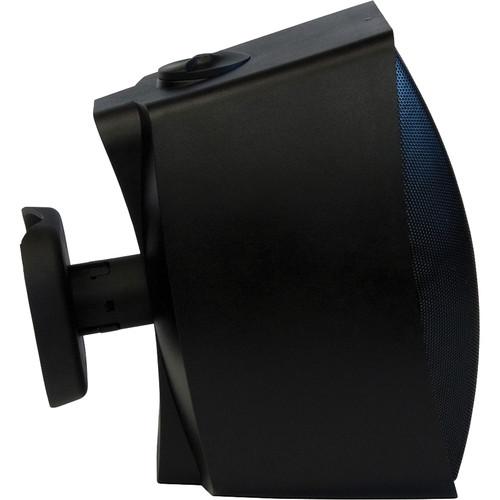

Product description The black SM500i-II-WX 5.25" Surface Mount Speaker from SoundTube Entertainment is a 5.25", two-way speaker with a midsize enclosure design that delivers low-end response (60 Hz) and optimal off-axis performance (2 to 10 kHz).The proprietary BroadBeam technology incorporates a high-frequency waveguide mated to a 1" convex aluminum tweeter with FerroFluid cooling. This helps deliver consistent high-performance audio across the operating bandwidth. The result is an audio system requiring fewer speakers with high intelligibility, offering reduced power needs, shorter installation time, and cost-effectiveness.The SM500i-II-WX Speaker features a low-profile grille and 6-position tap switch with transformer bypass. In addition, the security knob reduces the chances of tampering after installation. Designed for outdoor surface-mount applications in severe weather conditions, the speaker features WeatherX Technology for lasting performance even in the most extreme weather conditions. The WeatherX Technology utilizes a dual-layer hydrophobic material inside the speaker grille to protect the drivers and internal electronics from water. All the exposed metal components including the grille, screws, and mounting systems are built using non-corrosive materials (stainless steel or aluminum), and are IP44-rated.The speaker comes with the Stealth bracket mounting system, allowing for an increased aiming angle. It also includes a detachable mounting plate designed for pre-mounting in either wall or pole applications. The speaker is suitable for music and paging in retail, amusement, restaurant, airports, hotels, schools and casinos. - BroadBeam waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker
- One 5.25" (133 mm) polypropylene woofer and one 1" (25 mm) convex titanium tweeter with FerroFluid cooling
- 86.0 dB average sensitivity offers high output capabilities and reduced amplification costs
- Includes stainless steel screws and aluminum grille (with powder coat finish) for outdoor applications in severe weather conditions
- Easily accessible, six-position selectable tap switch for 25, 70.7, and 100 V applications with transformer bypass position
- Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity
- Aluminum grille with powder coat finish
- Includes the SM500i-II Stealth bracket mounting system
- Vertical and horizontal pivoting allows the speaker to be aimed anywhere within the installation space
- Low-profile enclosure design keeps the speaker close to the wall
In the Box SoundTube Entertainment SM500i-II-WX 5.25" Surface Mount Speaker (Black) Safety Cable with Speaker Mounting Bolt Euroblock Connector Wall Mount Bracket Terminal Weather Boot Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment SM500i-II-WX 5.25" Surface Mount Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment SM500I-II-WX Specs | System Type | 5.25" (13.33 cm), coaxial, surface-mounted, ported (64 W transformer for 25/70.7/100 V or transmitter bypass) | | Driver | Low Frequency: 5.25" (13.33 cm) with polypropylene cone and butyl rubber surround
High Frequency: 1.0" (2.5 cm) convex titanium tweeter with waveguide | | Voice Coil | Low Frequency: 1.0" (2.5 cm) | | Crossover Frequency | 3 kHz | | Network Type | High Pass: 12 dB per octave, 2nd order
Low Pass: 12 dB per octave, 2nd order | | Inputs | 4-pin, 0.2" (5.08 mm) Euroblock for individual or daisy chain connection | | Mount | Surface | | Impedance | 4 Ω (nominal) Listed per IEC 60268-5 | | Sensitivity | 86 dB @ 2.83 V/1 m, 83 dB @ 1 W/1 m 1 W/1 m determined using nominal impedance | | Frequency Response | -3 dB: 86 Hz to 22 kHz
-10 dB: 60 Hz to 22 kHz Measured in half or full space as dictated by speaker mounting configuration | | Max. Program Power | 150 W 3 dB above maximum continuous power | | Continuous Power | 75 W RMS maximum Per EIA-426-B test | | SPL | 102 dB @ 1 m (3.3') Based on maximum continuous power | | Coverage Angle | -6 dB @ 2 kHz: 75° (H) x 90° (V)
-6 dB @ 10 kHz: 120° (H) x 125° (V)
Averaged from 2 to 10 kHz: 100° (H) x 100° (V) | | Directivity Factor | 4.6 (averaged 100 Hz to 10 kHz), 9.8 (2 kHz) | | Directivity Index | 5.6 dB (averaged 100 Hz to 10 kHz), 9.9 dB (2 kHz) | | Tap Selector | 6-position rotary switch with transformer bypass | | Transformer Taps | 70.7 V Output: 101 dB @ 64, 98 dB @ 32 W, 95 dB @ 16 W, 92 dB @ 8 W, 89 dB @ 4W
100 V Output: 101 dB @ 64, 98 dB @ 32 W, 95 dB @ 16 W, 92 dB @ 8 W
25 V Output: 92 dB @ 8 W, 89 dB @ 4W, 86 dB @ 2 W, 83 dB @ 1 W | | Regulatory Approvals | UL 1480 (UEAY), CE, RoHS | | Material of Construction | Enclosure: Injection-molded ABS, glass fiber reinforced
Grille: Aluminum with powder-coat finish | | Dimensions (Ø x H) | 11.40 x 8.36 x 10.48" (28.96 x 21.23 x 26.63 cm) (including bracket) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 13.0 x 13.0 x 11.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
