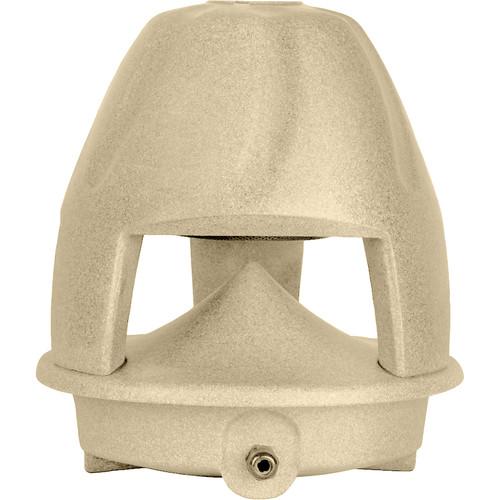

User Manual for SoundTube Entertainment XT550 5.25" 2-Way Outdoor In-Ground Speaker Click to enlarge the picture
Contents of the user manual for the SoundTube Entertainment XT550 5.25" 2-Way Outdoor
- Product category: Installed Speakers SoundTube Entertainment
- Brand: SoundTube Entertainment
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SoundTube Entertainment Installed Speakers
|
User manual for the SoundTube Entertainment XT550 5.25" 2-Way Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SoundTube Entertainment product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SoundTube Entertainment user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SoundTube Entertainment product will considerably shorten its lifespan!
|
Product description The sandstone XT550 5.25” 2-Way Outdoor In-Ground Speaker from SoundTube Entertainment is an outdoor loudspeaker solution for full-range background/foreground music and paging. The sealed, in-ground enclosure design delivers true low end response (62 Hz, - 10 dB) and optimal off axis performance. The Speaker includes theft-resistant mounting hardware and a weatherproof 5-position tap switch for 25/70.7/100V applications with 4⿦ voice coil direct position.The BroadBeam dispersion technology utilizes an advanced diffuser/tweeter system to provide maximum dispersion of the higher frequencies throughout the 360° horizontal by 40° vertical coverage pattern. The enclosure is engineered for durability and performance. It incorporates ZeroReflection internal shaping to create an effective environment for sound reproduction.The wide 360° horizontal dispersion pattern makes the XT550 Speaker suitable for use in theme parks, promenades, playgrounds, shopping malls, restaurants, resorts, gardens, and other outdoor applications. It comes with in-ground anti-theft brackets and stainless-steel square-tip screws for increased outdoor security. - UV-, scratch-, and weather-resistant with professional-grade components for performance and durability
- BroadBeam waveguide technology provides smooth 360° horizontal off-axis coverage
- Features a 5.25" weatherproof polypropylene woofer with butyl rubber surround and 1" aluminum dome tweeter with integrated horn and mounting bracket
- Weatherproof 5-position tap switch for 25/70.7/100V applications with voice coil direct (4Ω) position
- Durable and sealed ZeroReflection enclosure with optional port vent for added frequency response
- Liquid-tight compression fittings for water-tight protection
- Multiple wire inlet locations for fast and easy daisy chaining
- Stainless steel fasteners, stainless steel and powder-coated grille
In the Box SoundTube Entertainment XT550 5.25" 2-Way Outdoor In-Ground Speaker (Sandstone) Anti-Theft Brackets Water-Tight Strain Relief Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SoundTube Entertainment XT550 5.25" 2-Way Outdoor In-Ground Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoundTube Entertainment XT550-SS Specs | System Type | 5.25" (133 mm) coax outdoor (32 W transformer for 25/70.7/100 V or voice coil/8 Ω direct) | | Nominal Impedance | 4 Ω | | Sensitivity | At 1 W/m: 88.5 dB 2.83 V at a distance of 3.3' (1.0 m) | | Frequency Response | -3 dB: 75 Hz to 12 kHz port open (101 Hz to 12 kHz port closed)
-10 dB: 62 Hz to 22 kHz port open (62 Hz to 22 kHz port closed) Frequency response measured in half space | | Maximum Power | Program Power: 120 W
Continuous Power RMS: 60 W Continuous power rating, EIA-426-B test | | Max SPL Level | 107.5 dB @ 3.3' (1.0 m) | | Coverage Angle | -6 dB @ 2 kHz / 10 kHz / 2 to 10 kHz: 360º horizontal and 40º vertical | | Tap Selector | 5-Position rotary switch with voice coil direct (4 Ω) | | Low Frequency Driver | 1 x 5.25" (133 mm) polypropylene woofer with butyl rubber surround | | High Frequency Driver | 1 x 1" (25 mm) aluminum dome tweeter | | Low Frequency Voice Coil | 1" (25 mm) | | Network Type | Low-Pass & High-Pass: 6 dB per octave, 1st order | | Crossover Frequency | 3 kHz | | Enclosure Material | Roto-molded polyethylene plastic | | Grille Material | Stainless-steel with powder-coat finish | | Inputs | 18-Gauge wire lead | | Transformer Taps | 70.7 V Output: 32 W (103.5 dB), 16 W (100.5 dB), 8 W (97.5 W), and 4 W (94.5 dB)
100 V Output: 32 W (103.5 dB), 16 W (100.5 dB), and 8 W (97.5 dB)
25 V Output: 4 W (94.5 dB), 2 W (91.5 dB), 1 W (88.5 dB), and 0.5 W (85.5 dB) | | Dimensions (Ø x H) | 14.1 x 15.5" (35.8 x 39.4 cm) | | Weight | 13 lb (6 kg) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 16.0" |
