User Manual for SOURCE AUDIO Soundblox 2 Stingray Multi-Filter Pedal Click to enlarge the picture
Contents of the user manual for the SOURCE AUDIO Soundblox 2 Stingray Multi-Filter
- Product category: Effects Pedals SOURCE AUDIO
- Brand: SOURCE AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SOURCE AUDIO Effects Pedals
 |
User manual for the SOURCE AUDIO Soundblox 2 Stingray Multi-Filter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SOURCE AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SOURCE AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SOURCE AUDIO product will considerably shorten its lifespan!
|

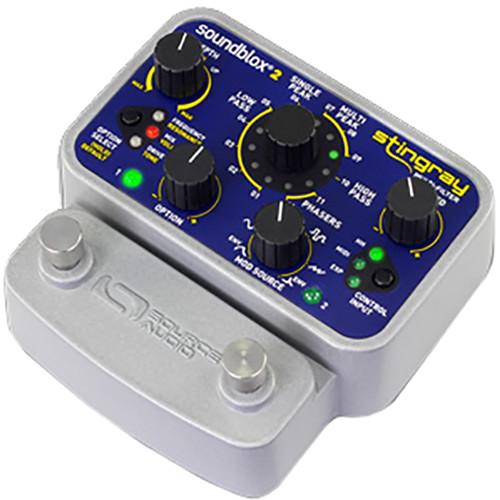

Product description The Soundblox 2 Stingray Multi-Filter from Source Audio is a pedal intended for electric guitarists which features 12 filter effects, an additional 12 filters available in extended mode, onboard overdrive, and multiple methods of control—be they internal (envelope followers, LFOs), or external (MIDI, Expression pedals, and Source Audio’s patented Hot Hand brand of control). This pedal is useful in achieving a plethora of tones, from funky, quaking envelope filters to synth-inspired fuzz.A set of control knobs provide adjustments over various onboard parameters—for instance, Depth, Speed, Modulation Source, and Effect Type. An Option Select button allows you to choose among six different effect characteristics, so you can control the level of distortion, the overall tone, the dry/wet mix, and more with one knob.On the modulation source side, you can blend between different LFO waveforms, so your modulation signal can have aspects of square and sine waves. The pedal is also tap-tempo enabled, so you can sync your LFO to the drummer or backing track in live scenarios or recording scenarios. Two footswitches are provided for storing presets, engaging them, or bypassing them altogether. The pedal includes a DC power supply. For an in-depth look at the stompbox’s controls and effects, please see the feature section. - Key Features at a Glance
- Up to 24 different Low Pass, Single Peak, Multi-Peak, and Phaser effects.Access to control parameters typically found only on professional rackmount systems.Add gain and distortion to any of the Stingray effects for an added boost and flavor.Proprietary 56-bit Digital Signal Processor and industry-standard 24-bit converters.A compact, rugged, cast-aluminum housing.Select either analog buffered or relay-based True Bypass.Easy-to-program user presets recallable via two footswitches.A multi-purpose control input for use with Hot Hand, the Source Audio Dual Expression Pedal, or send and receive MIDI.
- Controls Explained
- EFFECT Knob: The Effect knob selects which effect type will be used. OPTION Knob: The Option knob controls six different parameters, each selected by the Option Select button. OPTION SELECT Button: This selects between six different parameters which will be processed by the Option knob. Frequency adjusts the center point of the filter’s modulation range. Resonance adjusts the width of various peaks and notches in the selected filter’s frequency response. Mix adjusts how much dry signal is introduced into the overall sound (turn clockwise for the introduction of clean tone, and turn counterclockwise for the introduction of signal with “LoRetain”—a clean sound that has been processed with a high-cut filter to preserve low end). Volume controls the overall output level, while Drive introduces and adjusts a level of soft clipping, harmonic distortion applied to processed signal. Tone adjusts the timbre of the wet signal, and operates post distortion and filter; turn clockwise for brighter and counterclockwise for darker. DEPTH Knob: The Depth knob adjusts the range and direction in which the signal is modulated.SPEED Knob: Depending on the modulation source, the Speed knob controls either the rate of the LFO, the attack and decay times of the envelope followers, or the “Smoothing” of the Hot Hand.MOD SOURCE Knob: When Hot Hand, MIDI, or an expression pedal are not being used, the Stingray features 5 different types of modulation control: Slow Attack Envelope Follower, Sine Wave LFO, Square Wave LFO, Sawtooth Wave LFO, and Fast Attack Envelope Follower. The MOD SOURCE knob controls a gradual blend in between each selection, so setting this knob between two of the modulation graphics will create a sound with features of both modulation forms.CONTROL INPUT Button: Selects which external controller type will be used.PRESET SELECT / BYPASS Footswitch: There are two footswitches on the Stingray. The left footswitch corresponds to Preset 1, and the right footswitch corresponds to Preset 2. Pressing either of the footswitches will engages the respective preset. Pressing the same footswitch again puts the pedal back into bypass mode. Pressing the other footswitch engages the other preset without going into bypass. The illumination of the LEDs labeled “1” and “2” indicates which preset is currently enabled. While the pedal is in bypass mode both LEDs remain off.
- Effect Types
- Normal Mode2-pole low-pass filter4-pole low-pass filterTwo parallel low-pass filtersThree parallel low-pass filtersNotch > low-pass filtersPeak filterLow-pass > two peak filtersTriple peak filter ATriple peak filter BTriple peak filter CDual notch filterTriple notch filter Extended Mode6-pole low-pass filter4-pole low-pass filter with offset peaksPeak > 4-pole low-pass filter4-pole low-pass > peak filterPeak > notch > 2-pole low-pass filterBand-pass filterPeak > notch > peak filterNotch > peak > notch filterTriple peak filter CTriple peak filter DSingle notch filterDual notch > 2-pole low-pass filter
- External Control
- The MULTI-FUNCTION input is an intelligent control input that accepts both digital and analog control signals. It replaces the Sensor input on previous Soundblox pedals. The Multi-Function input connects to wired or wireless Hot Hand accessories, the Source Audio Expression Pedal, or the Source Audio Soundblox HUB. With these pedals and this connection, you can control the pedal through MIDI, expression, or Hot Hand control.
- Universal Bypass
- All Soundblox 2 pedals offer Universal Bypass, which allows you to select between two types of bypass. We recommend that you choose between the Stingray's active analog (a.k.a. buffered bypass) and relay-based true bypass (a.k.a. true bypass) based on what is needed in your pedalboard's signal chain. Ideally, the first pedal in a signal chain is a buffered input followed by true bypass in the rest of the signal chain.
In the Box SOURCE AUDIO Soundblox 2 Stingray Multi-Filter Pedal Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SOURCE AUDIO Soundblox 2 Stingray Multi-Filter Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

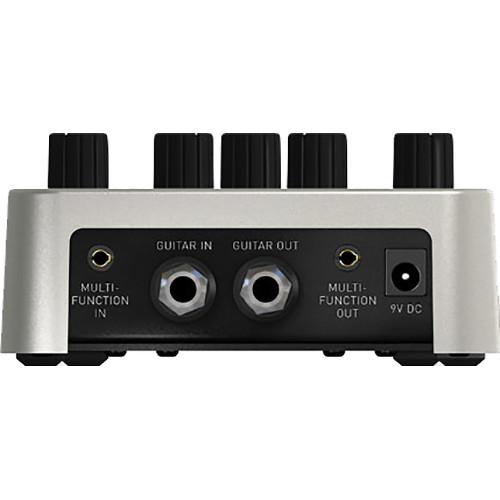

Technical parametersSOURCE AUDIO Stingray Multi-Filter Specs | I/O | 1 x 1/4" Instrument input, phone type
1 x 3.5 mm Multi-Function input
1 x 3.5 mm Multi-Function output
1 x 1/4" Instrument output, phone type | | Controls | DEPTH knob
OPTION knob
EFFECT knob
SPEED knob
MOD SOURCE knob
OPTION SELECT button
CONTROL INPUT button
PRESET SELECT / BYPASS footswitch (x2) | | Maximum Input Level | 2.0 Vrms (+6 dBV) | | Impedance | Input: 1 MOhm
Output: 1 kOhm | | Dynamic Range | 115 dB | | AD/DA Conversion | 24-bit | | DSP | 56-bit digital data path | | Bypass | Buffered or relay-based true bypass | | Power Consumption | 140 mA @ 9 VDC (max 180 mA with Hot Hand Wireless Adapter) | | Dimensions (L x W x H) | 4.5 x 4.5 x 2.3" / 11.4 x 11.4 x 5.7 cm | | Weight | 1.0 lb / 0.5 kg |
