Product description

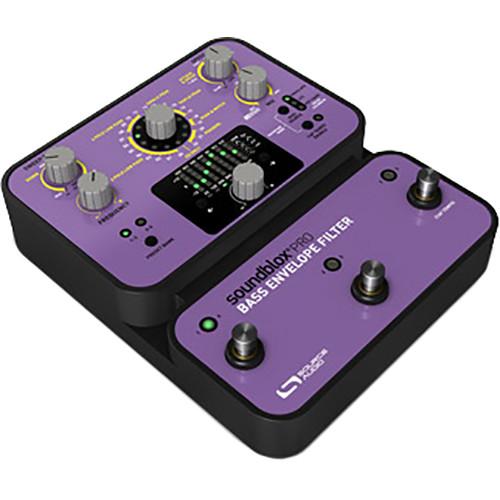

Intended for electric bass, the Soundblox Pro Bass Envelope Filter from Source Audio provides 22 different envelope filter effects, giving you 2-pole and 4-pole low-pass options, as well as single peak filters, triple peak, peak/notch, and a few phasers to boot. These effects have their analog equivalents and inspirations, such as the 3Leaf Audio Groove Regulator and the Pigtronix EP-1. Nevertheless, as is the case with many Source Audio pedals, the emulated hardware is merely a jumping-off point, as a slew of controls are offered to encourage much in the way of experimentation. For instance, in addition to knobs affecting the sweep range, attack/decay speed, and center frequency, you’ll find loads of secondary controls over LFO shapes, Q levels, customized expression pedal routing, and more. Combine the level of control with a seven-band equalizer and six user-assignable presets, and you’ll find yourself with a very flexible effects processor indeed. Note that there are multiple methods for controlling effects, including an envelope follower, a low-frequency oscillator (complete with tap tempo option), or various types of external control. For example, you can plug an expression pedal into its TRS input to manipulate filters as you would a wah pedal. You can also manipulate various secondary functions externally. MIDI control is also possible via a standard 5-pin DIN connection. Then you have a quirky method of manipulation sure to pique an adventurous bass player’s fancy: Hot Hand control. The Hot Hand technology provided by Source Audio lets you smoothly control parameters of the pedal through its onboard sensor and a corresponding two-axis accelerometer that you can wear like a ring. In essence, by changing the position of your hand, you can modulate parameters of the pedal in a fluid fashion. A calibration button allows you to find a “zero point,” while an additional sensor is built into the pedal to facilitate the daisy-chaining of other Hot Hand enabled pedals, giving you one ring to rule them all (your pedals, that is). All the effects are achieved digitally, via the pedal’s 56-bit DSP architecture, and utilizing 24-bit conversion stages at the AD and DA stages to preserve signal integrity as your audio travels through the pedal. A 9 VDC power supply is provided with the unit.
    Key Features at a Glance
  • 23 types of envelope filter and phaser effects.Bass-optimized envelope follower with multiple sweep and speed control options.Proprietary 56-bit digital signal processor and industry-standard 24-bit converters.Lo-Retain mixing algorithm preserves bass frequencies.6 easy-to-configure user presets in two banks selectable via 3 footswitches.7-band equalizer for in-depth tone control saved per preset.Filter effects can be modulated with an envelope follower, an LFO (low frequency oscillator), an expression pedal, or Source Audio’s patented Hot Hand Motion Control sensor ring.A second level of control functions provides access to different LFO shapes, Q levels, and customized expression pedal routing.Active Analog Bypass routs analog signal around the DSP, ensuring there is no signal degradation.
    Controls at a Glance
  • EFFECT: This selects desired filter type.SWEEP RANGE: This adjusts the direction (up/down) and breadth of the filter sweep or the depth of the LFO and Hot Hand modulation.FREQUENCY: This adjusts the center frequency of the filter.SPEED: This controls the attack and decay speed of the envelope follower, the LFO speed, or the motion-sensitivity of the Hot Hand.MIX: This adjusts the ratio of clean to wet signals.PRESET BANK BUTTON: This select preset bank A (presets 1, 2, and 3) or bank B (presets 4, 5, and 6).MOD SOURCE: This selects between ENVELOPE, LFO, and HOT HAND as the modulation source for the filter effect.TAP TEMPO ENABLE: This enables a tap tempo function for use with the LFO.EQ SECTION: The two buttons here select a frequency band that you can edit; the knob then adjusts the value of the selected band.FOOTSWITCHES: These footswitches enable and disable a selected preset depending on the currently selected preset bank. Press and hold to save an edited preset. The switch to the far right also sets the tap tempo.
In the Box SOURCE AUDIO Soundblox Pro Bass Envelope Filter Pedal
  • DC Power Supply
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the SOURCE AUDIO Soundblox Pro Bass Envelope Filter Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    SOURCE AUDIO Bass Envelope Filter Specs

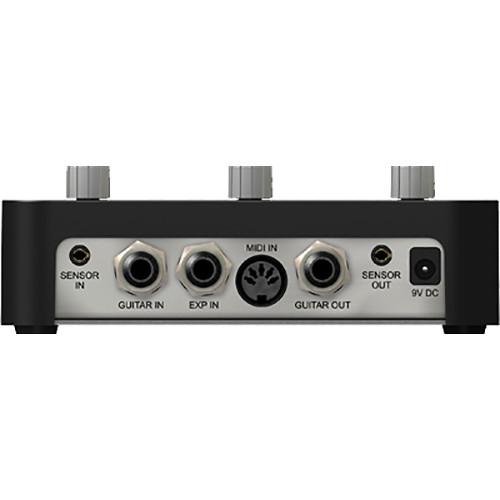

    I/O 1 x 1/4" Instrument input, phone type
    1 x 1/4" Instrument output, phone type
    1 x 1/4" TRS Expression input, phone type
    1 x 5-pin DIN MIDI input
    1 x Sensor input
    1 x Sensor output
    Controls SWEEP RANGE knob
    FREQUENCY knob
    EFFECTS knob
    EQ knob
    SPEED knob
    MIX Knob
    PRESET BANK button
    HH ENABLE button
    CALIBRATE button
    BAND SELECT LEFT button
    BAND SELECT RIGHT button
    PRESET SELECT/BYPASS Footswitch (x3)
    Dynamic Range ADC 115 dB
    DSP 56-bit digital data path
    AD/DA Conversion 24-bit
    Current Consumption 110 mA at 9 VDC (max 145 mA with Hot Hand Wireless Adapter)
    Dimensions (L x W x H) 7.0 x 6.0 x 2.0" / 17.8 x 15.2 x 5.1 cm
    Weight 1.8 lb / 0.8 kg
