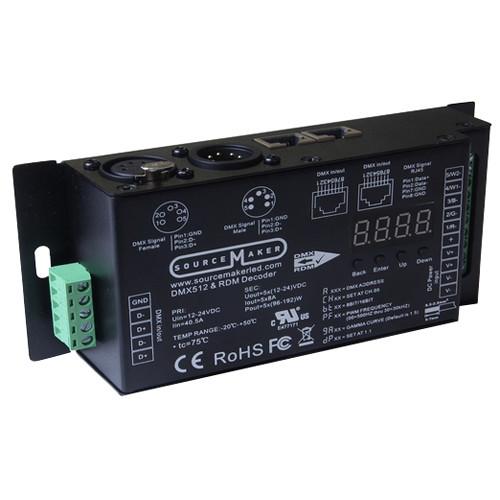

User Manual for Sourcemaker 5 x 8 Decoder Click to enlarge the picture
Contents of the user manual for the Sourcemaker 5 x 8 Decoder
- Product category: DMX Devices Sourcemaker
- Brand: Sourcemaker
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sourcemaker DMX Devices
|
User manual for the Sourcemaker 5 x 8 Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sourcemaker product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sourcemaker user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sourcemaker product will considerably shorten its lifespan!
|
Product description Designed for filmmaking, the 5 x 8 Decoder from Sourcemaker offers an adjustable dimming curve to match curves of other lights on set. The dimmer allows control of the PWM permitting high-speed shooting up to 30 kHz. Well-suited for single color, hybrid, RGB, or RGB+X LED ribbon, DMX channels or channel inputs are displayed on the unit. - Benefits
-
- Flicker-free with smooth low-end dimming
- RDM function allows you to set DMX address using a console
- Selectable PWM output resolution ratio of 8-bit or 16-bit
- Set the PWM dimming frequency from 500 Hz - 30 kHz
- Adjust the dimming curve gamma values from 0.1 - 9.9
- DMX512/1990 using RJ45, XLR, or screw terminals
- Set DMX address remotely or using LCD screen display
UPC: 746477847167 In the Box Sourcemaker 5 x 8 Decoder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sourcemaker 5 x 8 Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSourcemaker DM-5X8 Specs | Electrical | Input: 12 -24 VDC
Max. Power: 480 W @ 12 V, 960 W @ 24 V
Output: 40 A | | Control | 5 | | Frequency | 500 Hz - 30 kHz | | DMX | DMX-512/1990 digital signal | | Connection | RJ45 and XLR interface | | Dimensions | 6.5 x 2.9 x 1.5" / 16.5 x 7.4 x 3.8 cm |
